3m3/h 5m3/h 7m3/h 9m3/h diesel concrete dry shotcrete machine for sale

Click here to contact

Product details

Local Service Location:	Malaysia;	Warranty:	1 year,1 Year;
color:	customised;	Warranty of core components:	1 Year;
suitable mix ratio:	less than 1:3~5;	Max. Conveying Distance:	200m;
Core Components:	Engine;	driven type:	diesel;
Condition:	New;	operation air pressure:	0.2-0.4Mpa;
Video outgoing-inspection:	Provided;	Applicable Industries:	Construction works ;
Max Aggregate Size:	20mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:	GAODETEC;	Place of Origin:	Henan China;
Weight:	900kg;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Air Consumption:	12m3/min;	type:	dry shotcrete machine;
output:	3-9m3/h;	other requirement:	negotiable;
Packaging Detail:	diesel dry shotcrete machine: plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised.;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Showroom Location:	Malaysia;	rotor speed:	11r/min;
Port:	Qingdao, Shanghai or Tianjin;	Dimension(LWH):	1.50.831.32m;
Supply Ability:	10000 Set/Sets per Year diesel dry shotcrete machine;	Power:	7.5kw;
Marketing Type:	Hot Product 2019;	Hose Inner Diameter:	64;
Machinery Test Report:	Provided;	Voltage:	220v 380v 440v 660v;
UNIQUE SELLING POINT:	High operating efficiency;	Certification:	ISO CE;

Product Description

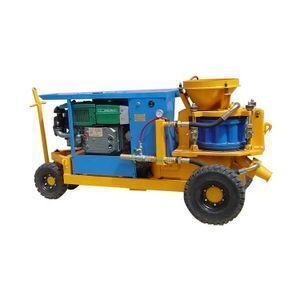

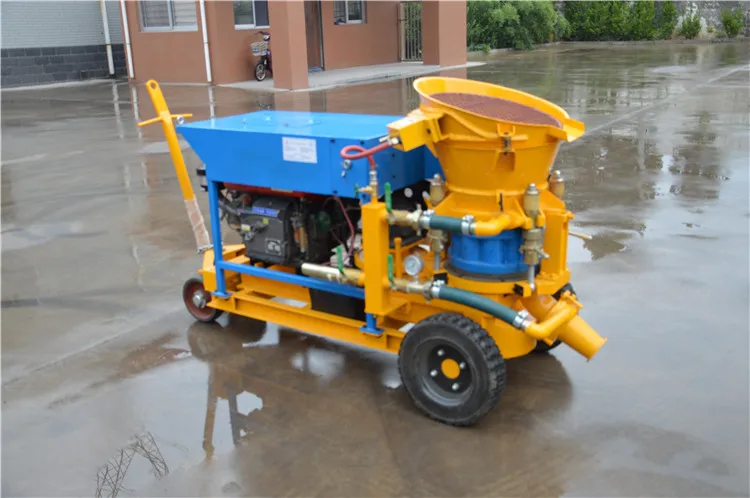

diesel engine dry shotcrete gunning machine:

Diesel dry type shotcrete machine is dry shotcrete machine for the spraying process.

Dry shotcrete machine can be used for large-section tunnel building, mine, etc.

The dry type shotcrete machine is available in following versions:

Basic: electric drive can be combined with tyre chassis.

Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.

Technical data

diesel engine dry shotcrete gunning machine technical data:

	GZ-9D	GZ-5D	GZ-3D
Output Capacity	6-9m3/h	3-5m3/h	2-3m3/h
Max. Horizontal Conveying Distance	200m	200m	200m
Suitable Mix Ratio(Cement/Sand)	≤1:4~5	≤1:4~5	≤ 1:3~5
Max. Aggregate Size	Dia.20 mm	Dia.15 mm	Φ 10 mm
Conveying Hose Inner Diameter	Dia.64 mm	Dia.51 mm	38/51mm
Operating air Pressure	0.2-0.4MPa(29-58PSI)	0.2-0.4MPa(29-58PSI)	0.2-0.4MPa(29-58PSI)
Air Consumption	10~12m3/min(357-430CFM)	9m3/min(325CFM)	5~6m3/min(180-215CFM)
Material Charging Height	1.1m	1.1m	0.9m
Rotor Speed	7.5-11r/min	11r/min	9-13r/min
Power	20hp,2200rpm	13kw/18hp	10hp,2200rpm
Overall Dimension(L× W× H)	2.66×1.11×1.50m	2.2×0.96×1.2m	1.8×0.8×1.2m
Net Weight	950kg	850kg	480kg

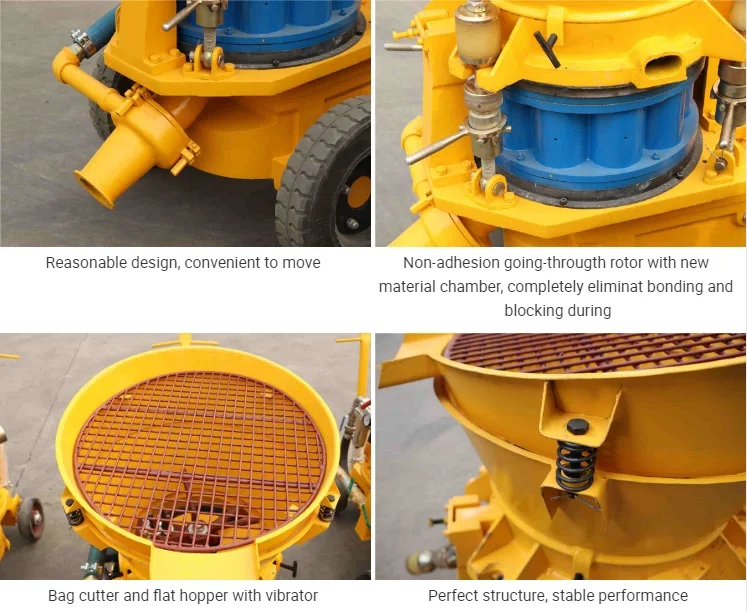

Product Details:

Accessories

Packaging & Shipping

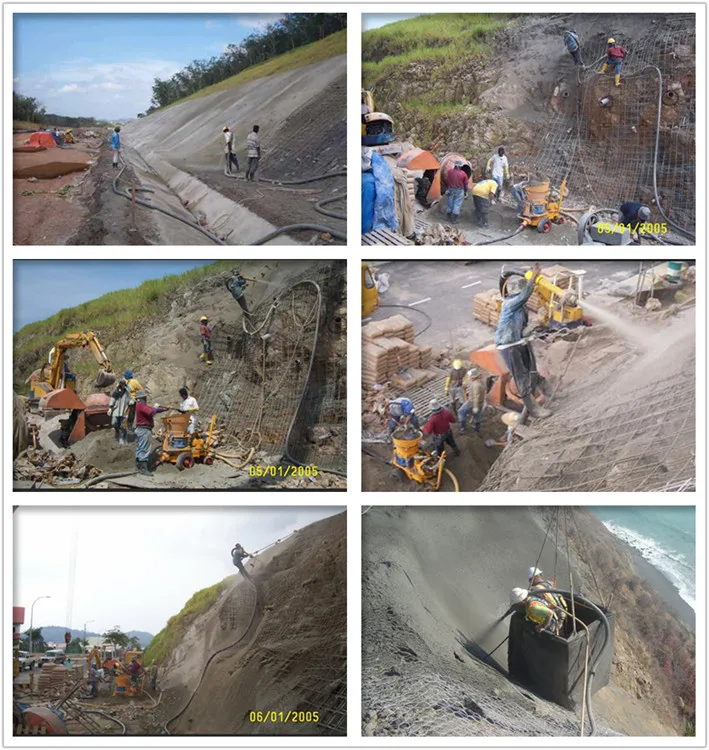

Application

The diesel shotcrete gunning machine is widely used in:

Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface
