Adjustable refractory small shotcrete machines for sale

Product details
output:1-3m3/h;Hose Inner Diameter:38 mm;
After-sales Service Provided:Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;Max. Conveying Distance:100m;
After Warranty Service:Field maintenance and repair service,Online support,Video technical support;Dimension(L*W*H):1300x750x1330mm;
Selling Units:Single item;Condition:New;
UNIQUE SELLING POINT:High operating efficiency;Local Service Location:Malaysia;
Showroom Location:Malaysia;electric motor:WEG or Siemens;
Marketing Type:New Product 2020;Weight:550 kg;
Core Components:Engine;rotor speed:13.2r/min;
other requirement:customized;color:customized;
Certification:ISO,CE;Voltage:220v 380v 440v 660v;
Place of Origin:Henan, China;Single gross weight:550.000 KG;
Video outgoing-inspection:Provided;Machinery Test Report:Provided;
Air Consumption:6m3/min;Packaging Detail:standard export plywood box packing or as your request. Refractory castable gunning machine Castable dry mix shotcrete machine;
Brand Name:GAODETEC;Warranty of core components:1 Year;
nozzle:refractory gunning nozzle;type:refractory shotcrete gunning machine;
Single package size:130X75X133 cm;Max Aggregate Size:10mm;
operation air pressure:0.2-0.4Mpa;Applicable Industries:Construction works ;
Warranty:1 Year;market:global;
Power:4kw;
Application

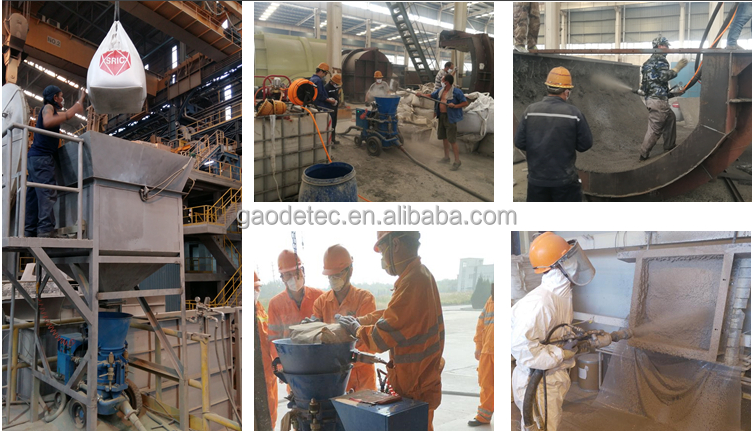

Refractory gunning machine application
Our refractory gunning machine is specially designed for spraying refractory materials, castable in refractory repair installing project. Such as Aluminum Furnace Linings, Industrial Furnace Repair, Heat Treating Furnaces, Reheat Furnaces, Rotary Kiln Linings, Tunnel and Shuttle KiIns, Dryer and Combustion Chambers, Refractory Boiler Settings, Incinerator Rebuilds, Stack and Duct Linings, Ladle and Crucible Linings.
Products Description

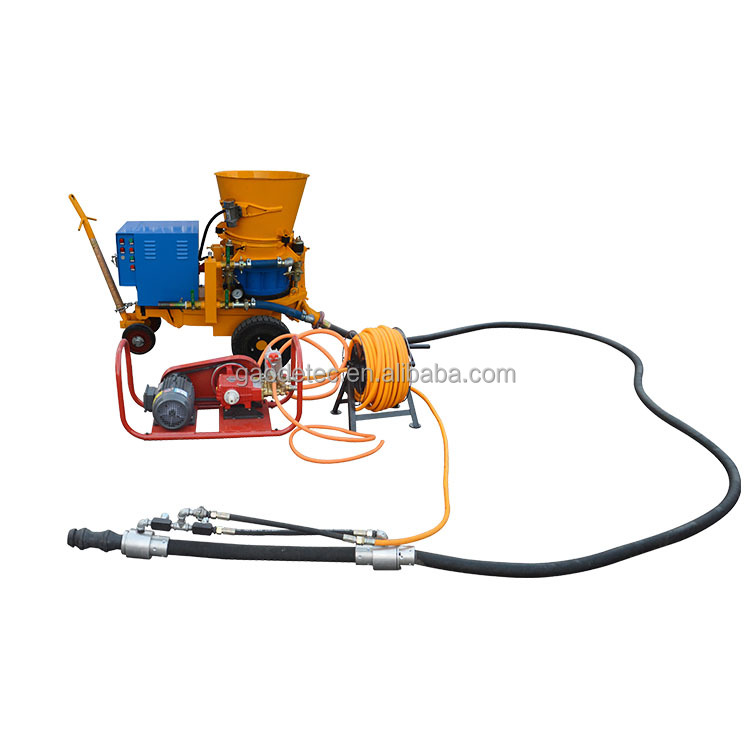

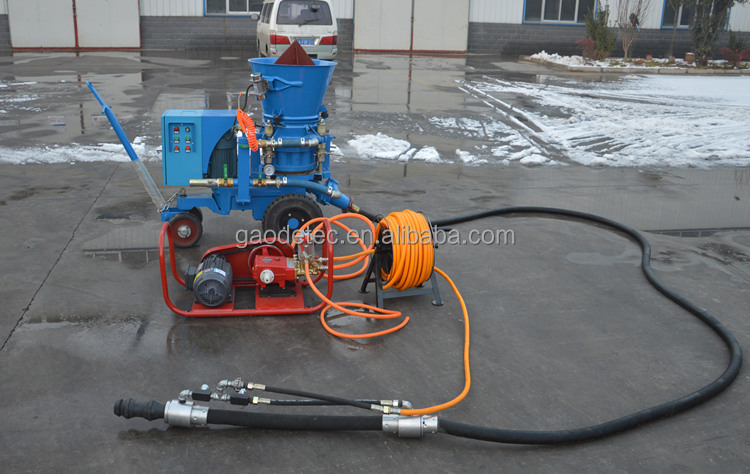

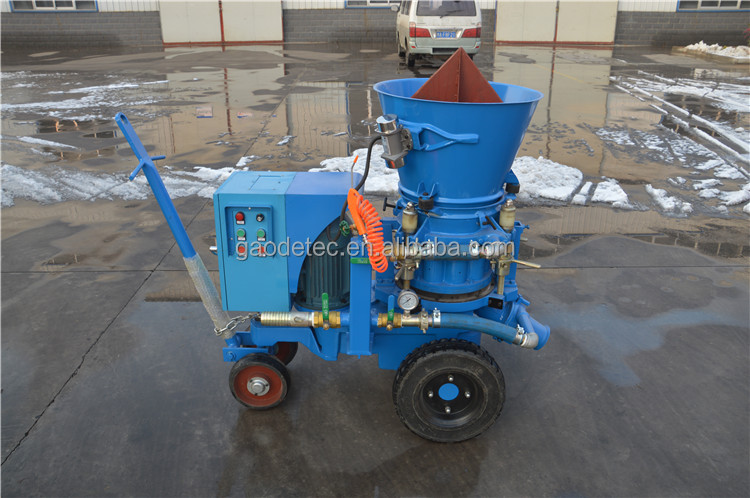

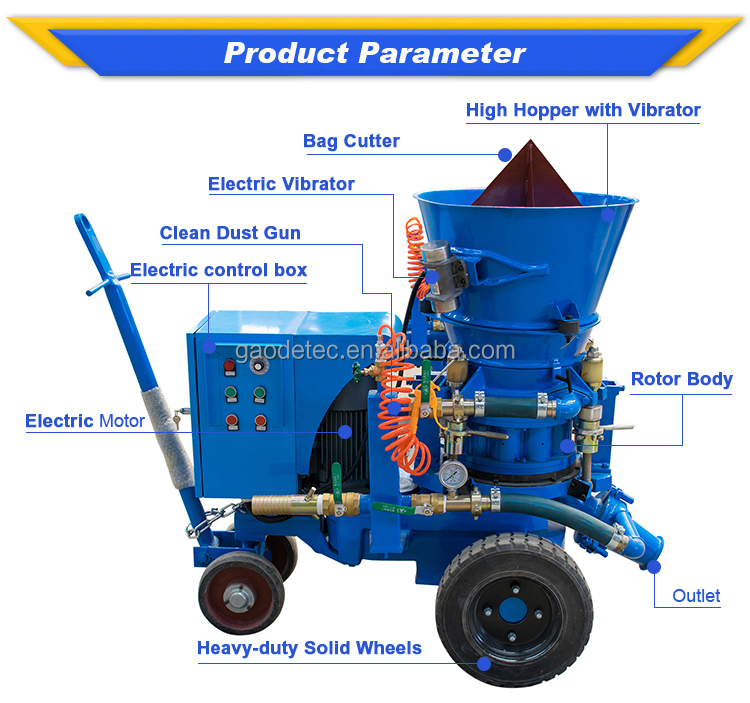

Refractory gunning machine

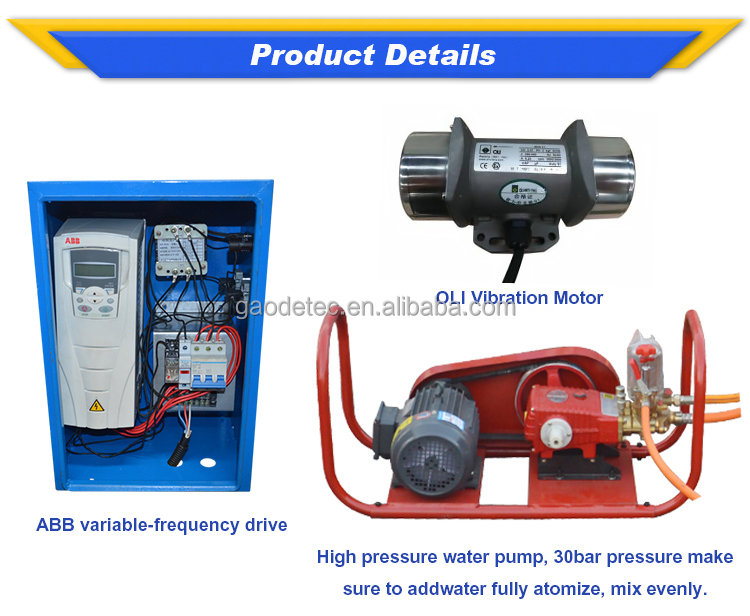

Different with common dry mix shotcrete machine, our GZ-3ER refractory gunning machine equipped with ABB frequency converter and high pressure water pump. ABB frequency converter is used for achieving variable output. High pressure water pump provide pressure water for nozzle assy, ensure that materials is mixed even with water.
GZ-3ER
GZ-3AR
Rated Output
1-3m3/h (2-6 tons/h)
Max. Conveying Distance
200m
Max. Aggregate Size
10mm
Conveying Hose ID
38mm
Operating Air Pressure
0.2-0.4MPa
Air Consumption
5-6m3/min
10-11m3/min
Drive Type
Electric
Air motor
Motor Power
4kw
/
Rotor Speed
0-13.2r/min
Details Images

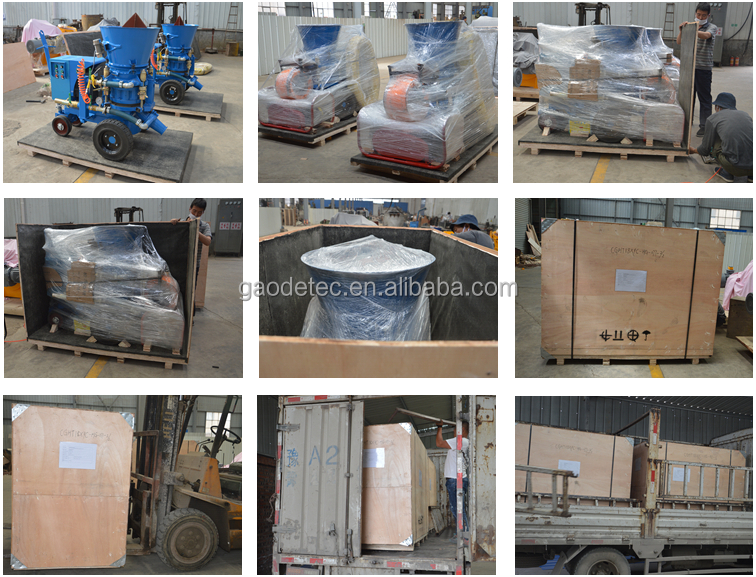

Packaging&Shipping
Related Product

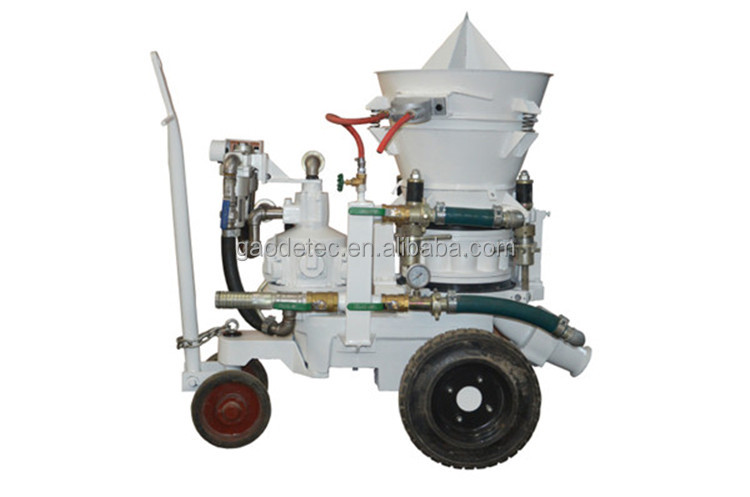

3m3/h air motor refractory gunning machine
5m3/h electric refractory gunning machine

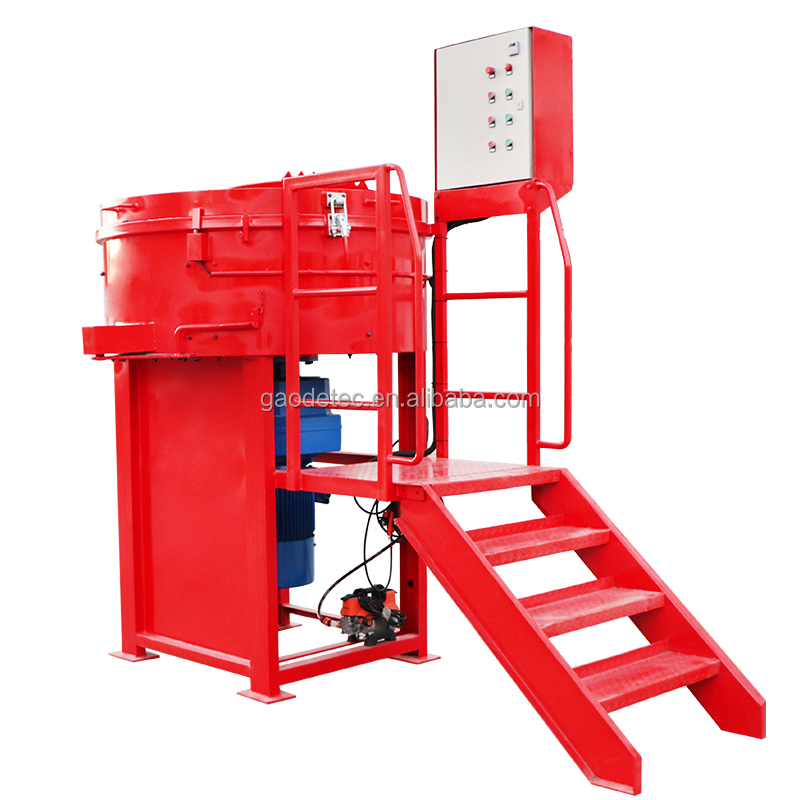

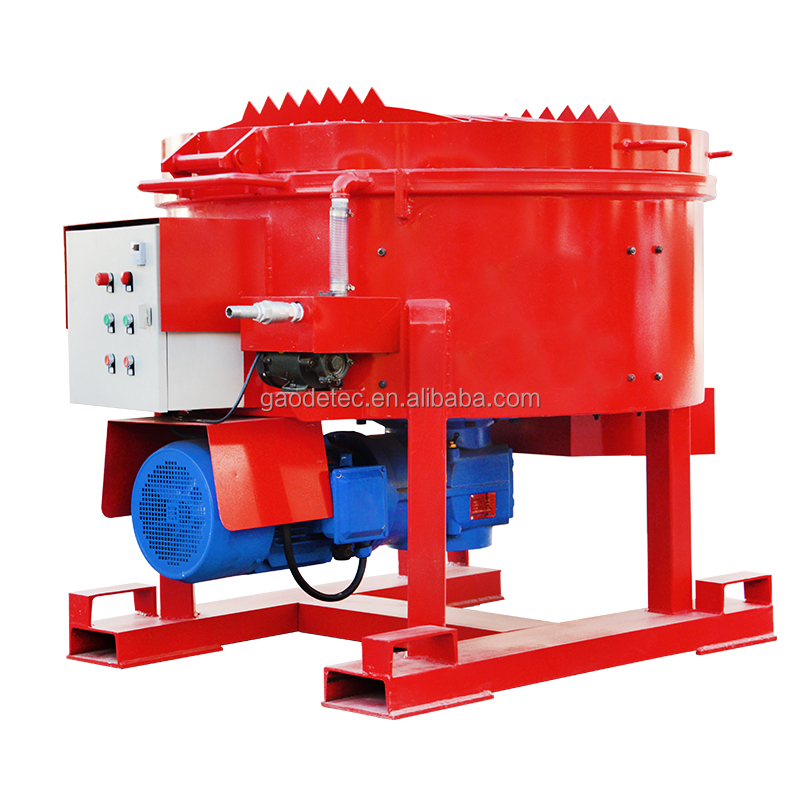

500kg refractory pan mixer
800kg refractory pan mixer
Contact Us
Before we send quotation, please let me know the following question:
1. What's the project you will use the machine do? 2. What is the output do you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h? 3. Drive type mode? Do you want electric or air motor? 4. Do you have any other special requirments for this machine?

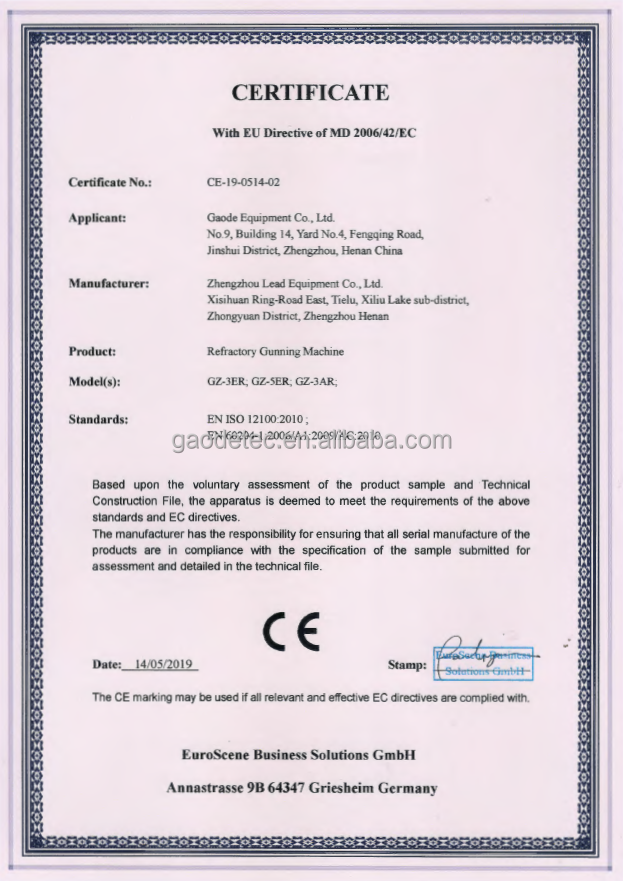

Certifications
