(ISO 9001 & CE) High Efficiency Settling Tank/Concentrator

Product details
Install:Technical supportpayment terms:L/C,D/P,D/A,T/T
Showroom location:not anyport:Qingdao, China
Certification:ISO 9001, CEAfter-sales service provided:Engineers can service machinery overseas, on-site installation, commissioning and training
Core Components Warranty:1 yearHealth status:new
Warranty:1 yearMarketing Type:New Products 2020
Packaging Details:Standard containers, in bulk or as customer's requestapplication:ore
Dimensions (L*W*H):depending on modelThickener price:Negotiable
After-sale service:whole service lifeLocal service location:not any
Video external inspection:ifMotor Type:AC motor
place of origin; place of origin:Shandong ChinaMechanical test report:if
Applicable industries:Energy and MiningCore components:engine
brand:XinhaiProduction capacity:5-1400 tons/day
Supply capacity:40 sets per monthcolor:client needs
type:Mining Thickener

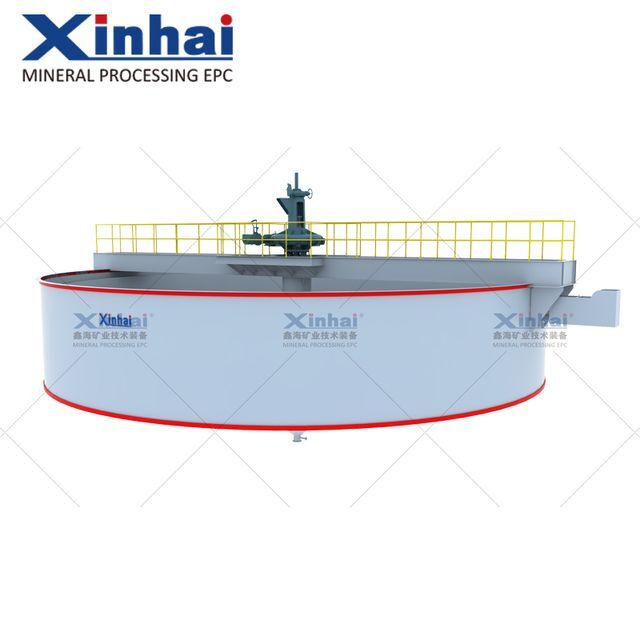

(ISO 9001 & CE) High Efficiency Settling Tank/Concentrator
Product Description



Sedimentation tankProduct Description

【Introduction】: Xinhai self-developed new high-efficiency concentration equipment.
【Capacity】: 5-1400t/d
【Improvement】: This thickener is a patented product of Xinhai, and the patent number is 201010521662.5. After the improvement, the capacity becomes larger, the overflow turbidity is low, and the discharge concentration is high
Features

Sedimentation tank-Features

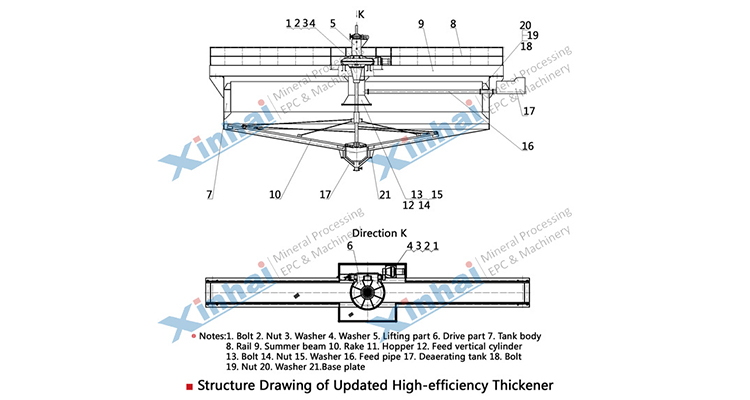

1. Equipped with a degassing chamber to prevent solid particles from adhering to the air bubbles, so that the solid particles fall like a parachute.

2. The feeding pipe is lower than the pulp surface; it can prevent the air from being brought into the feeding

3. The feeding sleeve moves down and is equipped with a feeding plate. Therefore, the falling of the feed slurry is uniform and stable, and the tumbling phenomenon caused by the residual pressure of the feed is prevented.

4. There is an inner overflow weir to make the slurry flow according to the predetermined route, avoid short circuit and expand the settlement area

5. The inner overflow weir is made into a zigzag shape, which eliminates the local water absorption phenomenon caused by the uneven overflow weir.

6. The hook line is changed from a slash to a curve. Therefore, the discharge undercurrent density is higher and the processing capacity is enhanced.

application

Sedimentation tank- Applications

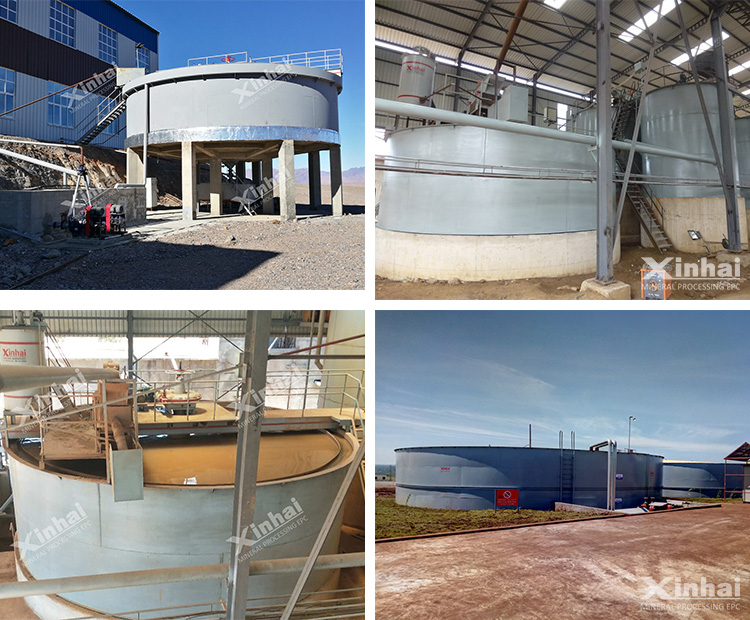

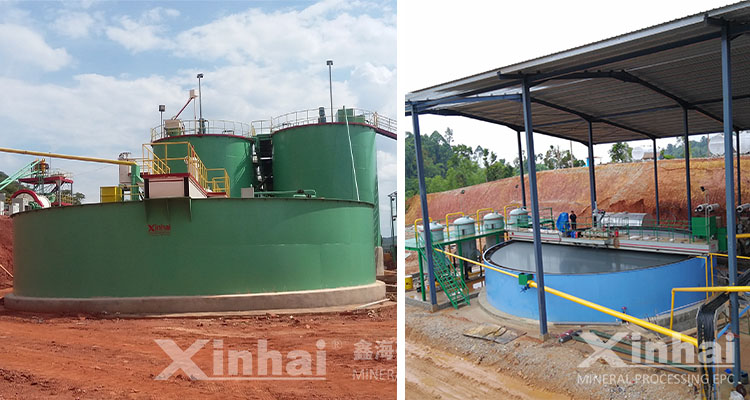

It is widely used in the treatment of coal slime, waste water and waste residue in metallurgy, mining, coal, petrochemical, building materials, environmental protection and other departments.

working principle

Sedimentation tankProduct principle

The thickener is composed of a circular thickener and a rake scraper. The solid particles are suspended in the thickener and settle by gravity, and the upper ore pulp becomes clear water to achieve separation. The mud from the bottom of the thickener is continuously scraped by the rake and the overflow is cleaned up from the top.

technical parameter

Sedimentation tank technical parameter

Model

Tank D
(mm)

tank depth
(mm)

sedimentary area
(square meter)

capacity
(ton/day)

motor model

Motor Power
(kilowatt)

NZSG-2.5

2500

1850

4.9

5-10.8

Y90L-6

1.1

NZSG-3A

3000

1800

7

5-23.3

Y100L-6

1.5

NZSG-3

3600

10.2

5-28.5

NZSG-5

5000

2956

16

16-90

Y90L-4

NZSG-6

6000

28.3

98

NZSG-7

7000

3000

38.5

140

Y112M-6

2.2

NZSG-8

8000

3318

50.2

185

Y132S-6

3

NZSG-9

9000

3376

63

210

NZSG-12

12000

3600

113

370

NZSG-15

15000

4000

176

580

Y132(M2)-6

5.5

NZSG-18

18000

4400

255

960

YCT200-413

7.5

NZSG-20

20000

4400

315

1400

Y160(M2)-8
