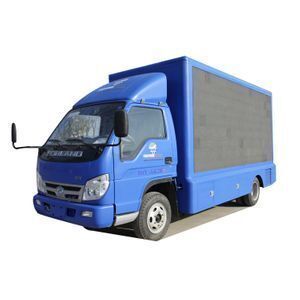

FOTON full color LED P6 mobile exhibition truck, out door advertising vehicle factory sale

Supplier: Hubei Xindongri Special Vehicle Co., Ltd.
Region: Hubei, China
Contact: Mr Eric Shen
Price: $16000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Dimensions (L x W x H) (mm):	5995 x 2000 x 2900;	Place of Origin:	Hubei China (Mainland);
Brand Name:	FOTON;	Gross Vehicle Weight:	4495;
Port:	Shangjai port;	Transmission Type:	Manual;
Payment Terms:	L/C,T/T;	Emission Standard:	Euro 4;
Condition:	New;	Supply Ability:	1000 Unit/Units per Month;
Fuel Type:	Diesel;	Packaging Detail:	NUDE;

Product Description

Specification of FOTON Outdoor LED Advertising Truck P6
Item	Specification	Item	Specification
General
Truck Name	LED Advertising Truck	Overall Dimension (mm)	5995×2000×2900
Truck Brand	FOTON	Gross / Curb Weight (kg)	4495 / 4365
Truck Model	BJ1049V8JEA-F1	Approach / Departure Angle (°)	21 / 17
Max. Speed (km/h)	110	Front / Rear Overhang (mm)	1120 / 1515
Chassis
Chassis Brand	FOTON	Chassis Model	BJ1049V8JEA-F1
Wheel Base (mm)	3360	Leaf Spring	3+1/6+7
Traction System	4 x 2	Quantity of Axles	2
Cab Capacity	2-3	Front / Rear Axle Load (kg)	1530; 1730
Transmission	5 speeds, manual	Front / Rear Wheel Tread (mm)	1485; 1590
Tyre Model	7.00-16 8PR; 7.00R168PR; 7.50-16 6PR; 7.50R16 6PR	Quantity of Tyre	6
Engine (Motor)
Brand	FOTON	Type of Fuel	Diesel
Model	ISF2.8s5R117; 4J28TC3	Displacement (ml)	2780; 2771
Max. Power (KW/hp)	81 / 110	Emission Standard	Euro 5
Cylinder Stator	4	Max Torque (N.m)	280
Quantity of Valves Per Cylinder	4	Maximum Torque Speed (rpm)	1400-3000
Cylinder Diameter × Stroke (mm)	φ93 x 102	Motor Rated Rotating Speed (rmp)	3800
Full Load Minimum Fuel Consumption Rate (g/KW.h)	≤241	Air Intake Form	inter-cooling
Compression Ratio	18.2 : 1	Noise From 1 Meter (dB)	*
Motor Net Weight (kg)	251	ABS	yes
Superstructures
Full Color LED Screen Dimension (mm)	3840 x 1760	Optional Frontside One Color LED Strip Screen (mm)	1440 x 320
Optional Rightside Scrolling Light Box	3840 x 1760	Optional Rear Screen (mm)	1440 x 1280
Cargo Compartment Dimension (mm)	4200 x 2020 x 2100	Generator	optional diesel engine generator (6.5KW/8KW); optional gasoline engine generator (6KW/8KW/12KW/15KW)
Pixel Pitch (mm)	6	Density Per sqm.	15625 pixel
Module Resolution	96 dots*96 dots	Module Dimension (mm)	256 x 128
Brightness	≥7500nits	Optimum Viewing Distance (m)	7-100
View Angle	(H) 100°(V) / 50°	Frame Frequency	60-85 Hz
Refresh Rate	300-1000 Hz	Cabinet Weight (kg)	55
Max Power (W/sqm)	700	Average Power (W/sqm)	390
Malfunction Dot Rate	<0.0001	Working Temperature	-20~60°C
Working Humidity	10%-95%	Lifetime	100,000 hours
MTBF	≥ 10000 hours	Whole Display Flatness	less than 1mm juncture
Working Voltage	AC 220v±20%	Control Method	Synchronization or Asynchronization
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty, 3 years for the LED screen warranty. 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. 4. MOQ: 1 unit
