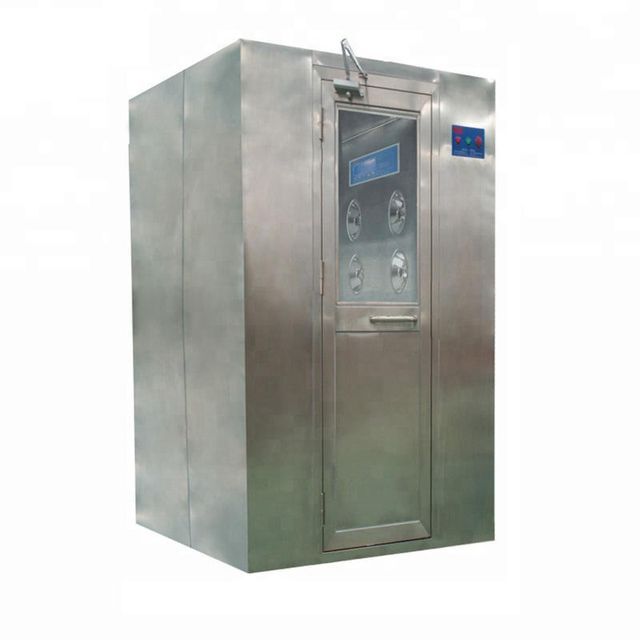

Clean room air shower vertical airflow support customization

Supplier: Guangzhou KLC Cleantech Co., Ltd.
Region: Guangdong, China
Contact: Ms Sinny Min
Price: $4600.00 / 1 - 9 sets
$3500.00 / 10 - 19 sets
$2400.00 / 20 - 49 sets
$1800.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

port:	Guangzhou	Packaging Details:	Standard export packaging.
Dimensions (WLH):	145030002050mm	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
place of origin; place of origin:	China	strength:	750W
noise:	less than 65dB	product name:	Stainless steel air shower
Health status:	new	Laminar flow:	vertical airflow
Internal dimensions (WLH):	104029301910mm	After-sales service provided:	Engineers can repair machinery overseas
Mechanical test report:	if	Showroom location:	not any
HEPA filtration efficiency:	H13, 99.99%@0.3um	Warranty:	1 year
Nozzle wind speed (m/s):	Nozzle wind speed (m/s)	Video external inspection:	if
Material:	Stainless Steel 201/304	Stainless Steel Nozzle:	stainless steel nozzle
Voltage:	380V/50Hz	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Core components:	programmable logic controller	brand:	Kuala Lumpur International Airport
Supply capacity:	20 sets per month	Dimensions (LWH):	1400x1200x2180mm
Core Components Warranty:	1 year	weight:	380kg
Marketing Type:	normal product

Clean room air shower vertical airflow support customization

Product Description

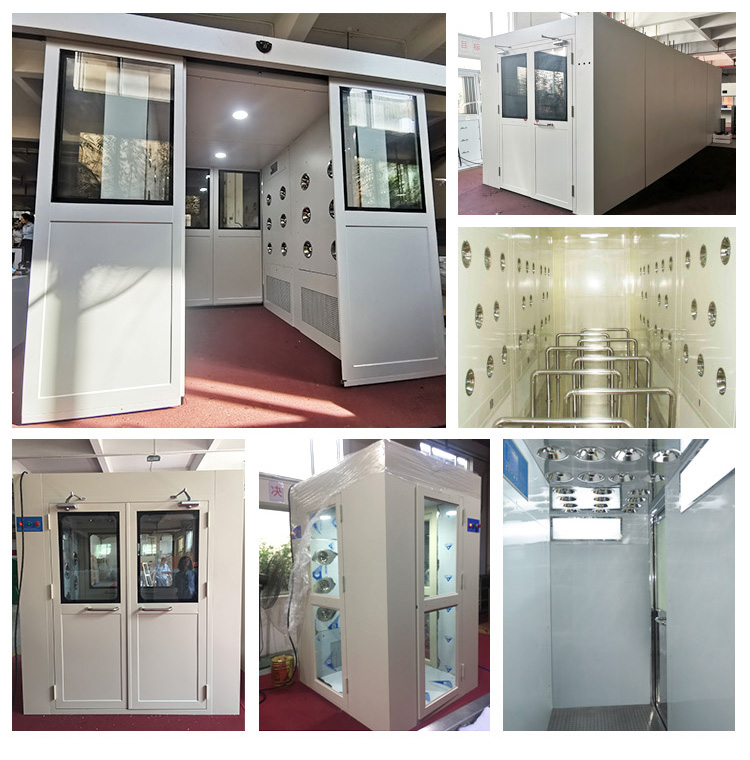

All sizes and styles can be customized
thing			air shower one person	air shower Two people	air shower multiple use
Model			ASV-1400/1	ASV-1400/2	ASV-1400/3
Dimensions (WxLxHmm)			1400x1000x2180	1400x2000x2180	1400x3000x2180
Internal Dimensions (WxLxHmm)			790x930x1910	790x1930x1910	790x2930x1910
Stainless steel nozzle (pc)			16	32	48
Nozzle wind speed (m/s)			≥25	≥25	≥25
Noise (1m away) (dB)			<65	<65	<65
fan	Power (V/Hz)	380/50	380/50	380/50
		Power (W/set)	1100×1	1100×2	1100×3
		Quantity/set	2	4	6
		Air volume (m³/h)	1300	1300	2300
High efficiency filter	Dimensions (W×H×D)	630×630×69	630×630×69	630×915×69
High efficiency filter		Quantity (set)	1	2	3
prefilter	Dimensions (W×H×D)	855×158×17	855×158×17	855×158×17
prefilter		Quantity (set)	1	2	3
Total power/W			1130	2240	3350

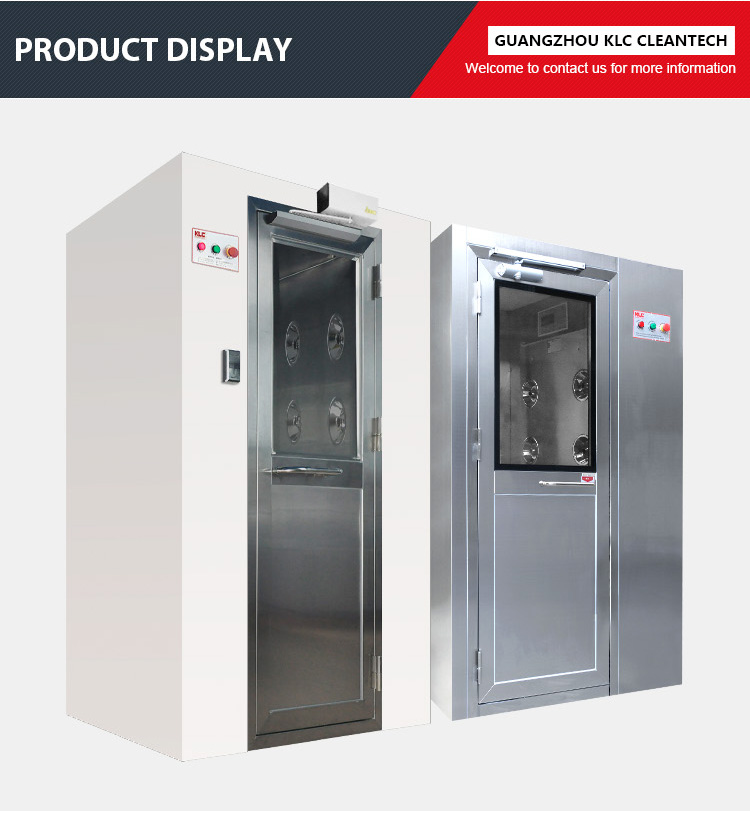

Product display

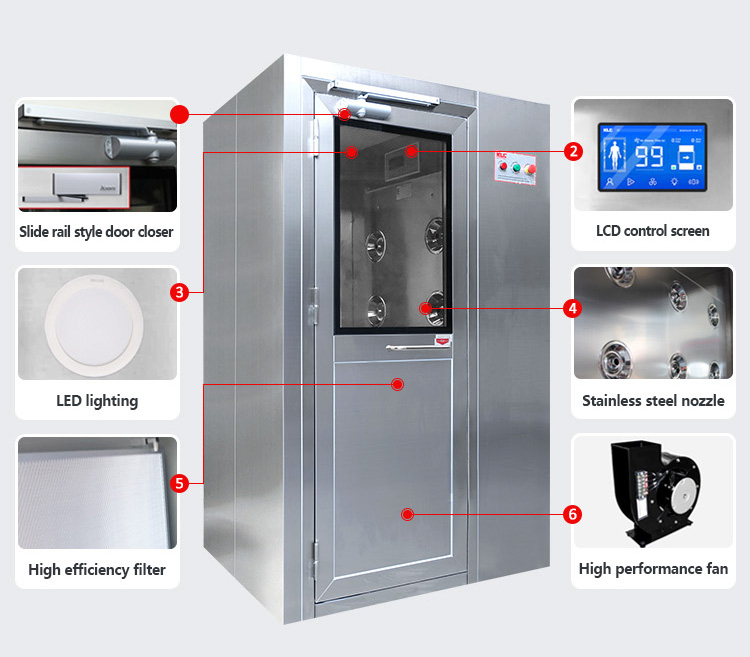

physical mechanicsAir comes out at the top and then returns to the bottom. It removes dust from the body together by gravity. No vortex will be generated to ensure the purification effect.Comparative AdvantageTraditional air shower room on the market - simple structure, double blowing system. Irregular airflow is more likely to create vortices. And the dust is not easy to take out immediately.KLC company practical air shower1. Install fans, high-efficiency filtration equipment, nozzles, and air-shower return air systems. 2. There are 16 25m/s high-speed airflow nozzles in a single air shower to form a vertical air circulation system. 3. The one-way air distribution method keeps the airflow speed consistent.
