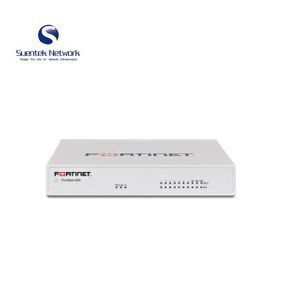

FG-60E Fortinet FortiGate-60E Network VPN Security Firewall

Product details
VPN Support:Yes;Single gross weight:2.5 KG;
Package Type:Original Packing;Type:Wired;
Certification:ICSA Labs;Place of Origin:United States;
Throughput:3 Gbps;Products Status:Stock;
Brand Name:Fortinet;Single package size:30X22X12 cm;
Model Number:FG-60E;Delivery Detail:0 days after payment;
Simultaneous Sessions:1.3 Million;Selling Units:Single item;
Overview

FortiGate/FortiWiFi® 60E Series

FortiGate 60E, 60E-POE, FortiWiFi 60E, FortiGate 61E and FortiWiFi 61E

The FortiGate 60E series offers an excellent network security solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy to deploy solution.

Deployment
Hardware
Security Fabric
Specifications

Hardware  Specifications

FG-60E

FG-60E-POE

FWF-60E

FG-61E

FWF-61E

GE RJ45 WAN / DMZ Ports
2/1
2
2/1
2/1
2/1
GE RJ45 Internal Ports
7
-
7
7
7
GE RJ45 PoE/+ Ports
-
8
-
-
-
Wireless Interface
-
-
802.11 a/b/g/n/ac
-
802.11 a/b/g/n/ac
USB Port
1
1
1
1
1
Console Port (RJ45)
1
1
1
1
1
Internal Storage
-
-
-
1x128GB SSD
1x128GB SSD
Included Transceivers
0
0
0
0
0
System Performance - Enterprise Traffic Mix
IPS Throughput
400 Mbps
NGFW Throughput
250 Mbps
Threat Protection Throughput
200 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)
3 / 3 / 3 Gbps
Firewall Latency (64 byte UDP packets)
3 μs
Firewall Throughput (Packets Per Second)
4.5 Mpps
Concurrent Sessions (TCP)
1.3 Million
New Sessions/Second (TCP)
30,000
Firewall Policies
5,000
IPsec VPN Throughput (512 byte)
2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels
200
Client-to-Gateway IPsec VPN Tunnels
500
SSL-VPN Throughput
150 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)
100
SSL Inspection Throughput (IPS, avg. HTTPS)
135 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)
135
SSL Inspection Concurrent Session (IPS, avg. HTTPS
75,000
Application Control Throughput (HTTP 64K)
650 Mbps
CAPWAP Throughput (HTTP 64K)
890 Mbps
Virtual Domains (Default / Maximum)
10 / 10
Maximum Number of Switches Supported
8
Maximum Number of FortiAPs (Total / Tunnel Mode)
30 / 10
Maximum Number of FortiTokens
100
Maximum Number of Registered FortiClients
200
High Availability Configurations
Active / Active, Active / Passive, Clustering
Dimensions
FG-60E/FG-60E-POE/FG-61E/FWF-60E/FWF-61E
Height x Width x Length (inches)
1.5 x 8.5 x 6.3
Height x Width x Length (mm)
38 x 216 x 160
Form Factor
Desktop
Weight
1.9 lbs (0.9 kg) [N.G weight for FG-60E-POE is 2.2 lbs (1.0 kg)]
Packing & Delivery



100% New original Packing

Warranty: 1 year's original warranty

Fast delivery: within 3 days after payment,

subject to final confirmation

Shipping way: DHL, UPS,Fedex or Aramex etc.
