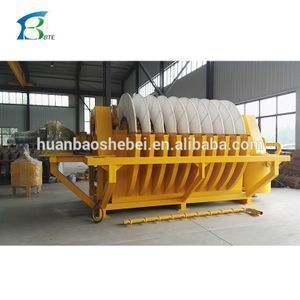

Metal Tailings Disc Ceramic Vacuum Filter For Coal Water Slurry

Supplier: Shandong Better Environmental Protection Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Christine Zhu
Price: $3199.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Engineers available to service machinery overseas;	Packaging Detail:	Container / Per required For Metal Tailings Ceramic Disc Vacuum Filter.;
Brand Name:	Better;	Disc number:	Per to model;
Condition:	New;	Vacuum:	Yes;
Port:	Qingdao;	Filtration area:	1-60 m2;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Textile/Slaughter/Pharmaceutical/SchoolHospital;

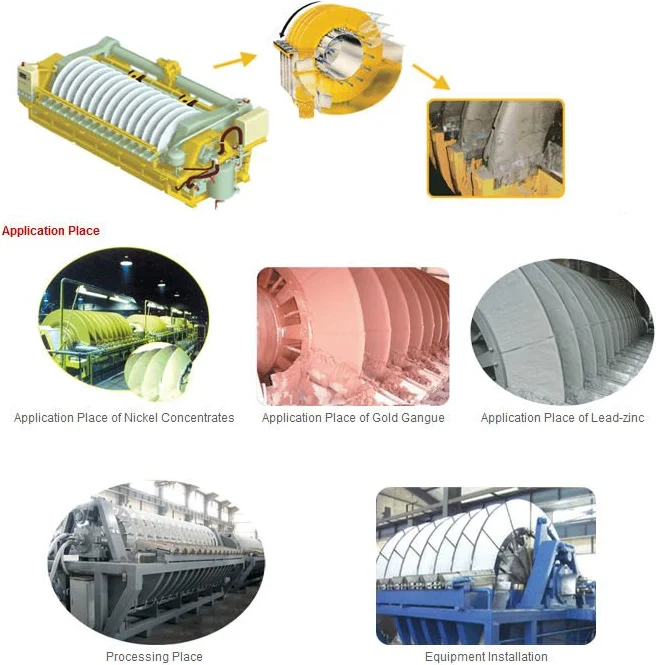

Application:	non-ferrous metallurgy, chemical;	Color:	Customer's Request;
Product name:	Metal Tailings Ceramic Disc Vacuum Filter;	Material:	Ceramic+Q235/ 304SS/ 316SS;
Capacity:	1-30 tons / h;	Place of Origin:	Shandong China (Mainland);
Supply Ability:	50 Set/Sets per Month;	After-sales Service Provided:	Engineers available to service machinery overseas;
Certificate:	ISO9001:2008; SGS; CE also available;

Product Overview

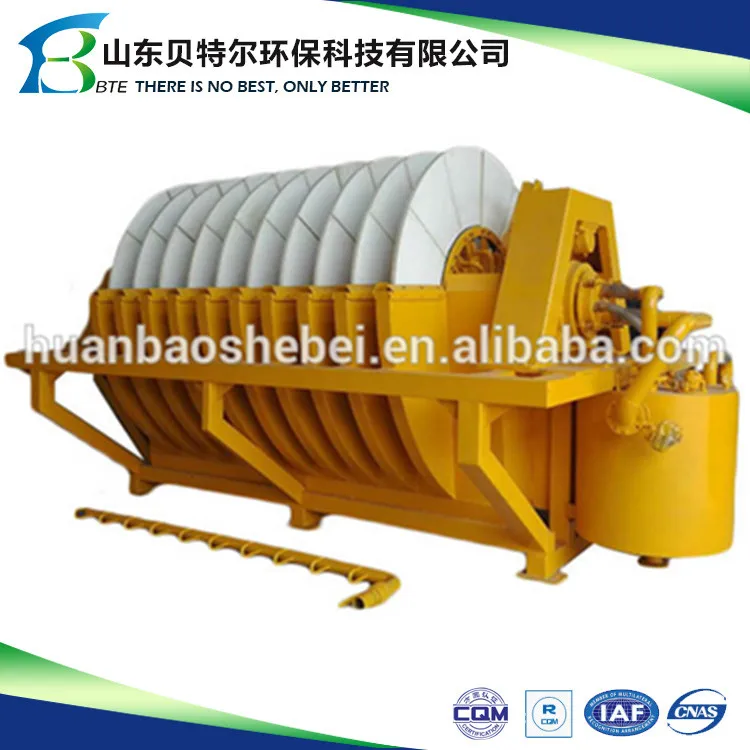

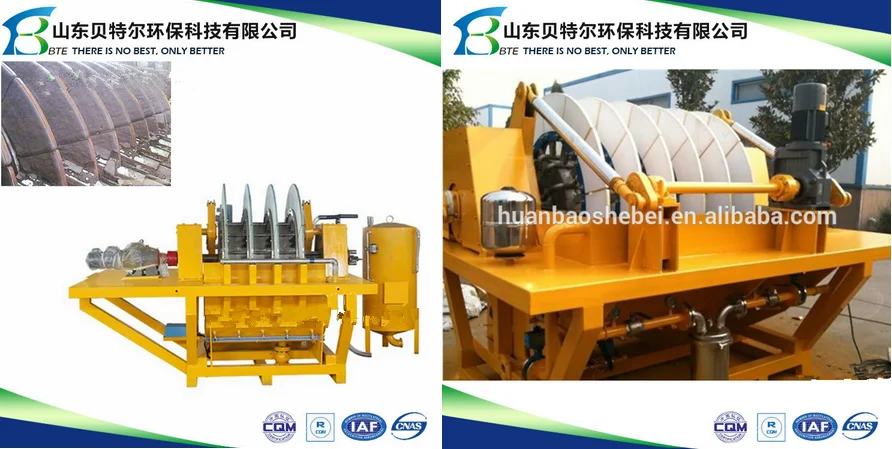

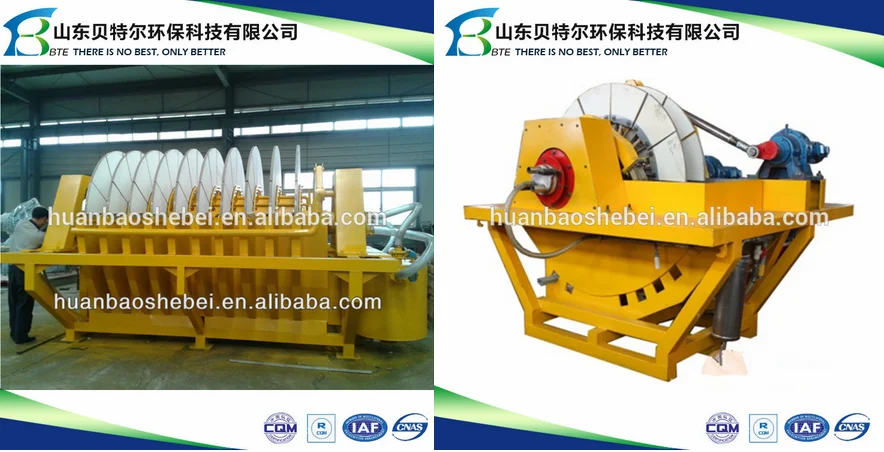

Ceramic filter is mainly used for fine coal slurry recovery, equipped with an engine base, under the engine base setting a fine coal slurry liquid trough, in this liquid trough, equipped with liquid level controller, both ends with negative pressure water tank, one side of this water tank is equipped with negative pressure connected assembly fix, another side is vacuum pump pipeline connecting with a vacuum pump; on the engine base, there is a coal slurry recovery rotor, this rotor consists of main axle, multilevel ceramic filter disc, stripper plate, multisection effluent connecting pipeline piping support plate, negative pressure connecting assembly plate.

The rotor is located in liquid trough; the ceramic filter disc consists of many ceramic cavity micropore plates, those plates located in a same axes connect by the effluent connecting pipeline.

Main Structure

Ceramic filter is mainly consisting of roller system, mixing system, ore slurry feed and discharge system, vacuum system, filtrate discharging system, scraping system, back washing system, united washing system (ultrasonic cleaning, automatic matching acid cleaning), full-automatic control system, trough body, rack etc.

Technology Parameter

model	filters plate(circle)	plate qual.(block)	tank volume(m3)	installed power	operating power	size(m)(LWH)
BTC-1	1	12	0.4	7.6	6.6	2.21.951.63
BTC-4	2	24	0.79	9	7.32	2.452.251.83
BTC-6	3	36	0.94	10.5	7.98	2.72.251.83
BTC-8	4	48	1.28	11.5	8.14	3.042.251.83
BTC-12	6	72	1.79	13	7.96	3.62.251.83
BTC-24	8	96	3.96	23	16.28	4.452.852.25
BTC-30	10	120	4.6	25.15	17.95	5.12.852.24
BTC-45	10	120	5.9	40	30.4	5.73.22.5
BTC-60	14	168	8.1	43.81	30.37	6.823.22.5
