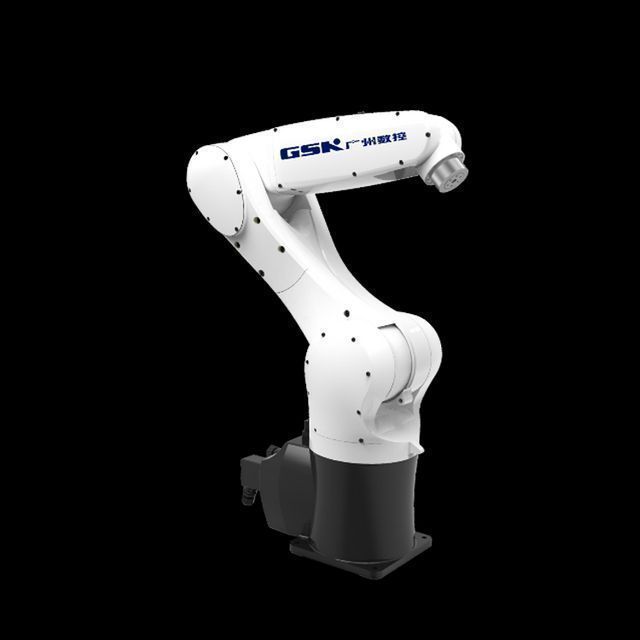

GSK RB06-900 Guangzhou CNC robot handling industry general robotic arm

Click here to contact

Product details

Packaging Details:	carton	Packaging Preview:
Core Components Warranty:	1 year	Repeatability:	±0.03mm
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Supply capacity:	1000 pieces per month
Warranty:	1 year	Payload:	6kg
Mechanical test report:	Not available	weight:	60 kg
port:	Shenzhen, China	Video external inspection:	Not available
Showroom location:	not any	Core components:	PLC, motor
Marketing Type:	Hot Products 2022	Weight (kg):	60 kg
Health status:	new	Motion radius:	900
Applicable industries:	Building materials stores, machinery repair shops, manufacturing plants, construction projects, others	brand:	GlaxoSmithKline
Drive mode:	AC Servo Drive	place of origin; place of origin:	Guangdong, China

Product Description

Widely used in logistics handling, machine tool loading and unloading, stamping automation, assembly, grinding, polishing, etc.

range of activities

Application scenarios

technical parameter

degree of freedom			6
drive mode			AC Servo Drive
Payload (kg)			6
Repeat positioning accuracy (mm)			±0.03
range of activities	J1	±170
		J2	+135-100
		J3	+155-110
		J4	±170
		J5	±120
		J6	±360
Maximum speed	J1	337.5
		J2	270
		J3	375
		J4	300
		J5	375
		J6	468
Maximum allowable torque (NM)	J4	12
		J5	10
		J6	6
Movement radius (mm)			900
Weight (kg)			60
Note: Avoid contact with flammable, explosive, corrosive gases and liquids; Do not splash water, oil, dust; Keep away from electrical noise sources (plasma)
