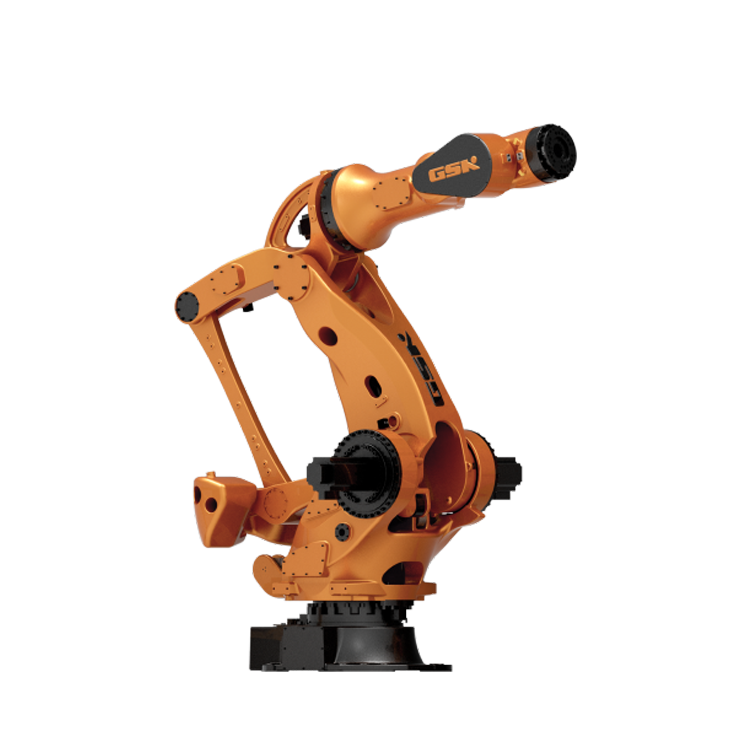

GSK RB500 Handling Industry General Robot Arm Guangzhou CNC Robot

Click here to contact

Product details

Applicable industries:	Building material stores, mechanical repair shops, manufacturing plants, construction works, others	Marketing Type:	Hot Products 2022
Showroom location:	not any	Video external inspection:	Not available
Repeatability:	±0.3mm	Packaging Preview:
Drive mode:	AC Servo Drive	port:	Shenzhen, China
brand:	GlaxoSmithKline	Payload:	500kg
place of origin; place of origin:	Guangdong, China	Packaging Details:	carton
Motion radius:	2882	Core Components Warranty:	1 year
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	weight:	3300 kg
Supply capacity:	1000 pieces per month	Mechanical test report:	Not available
Health status:	new	Warranty:	1 year
Weight (kg):	3300 kg	Core components:	PLC, motor

Product Description

Widely used in logistics handling, machine tool loading and unloading, stamping automation, assembly, grinding, polishing, etc.

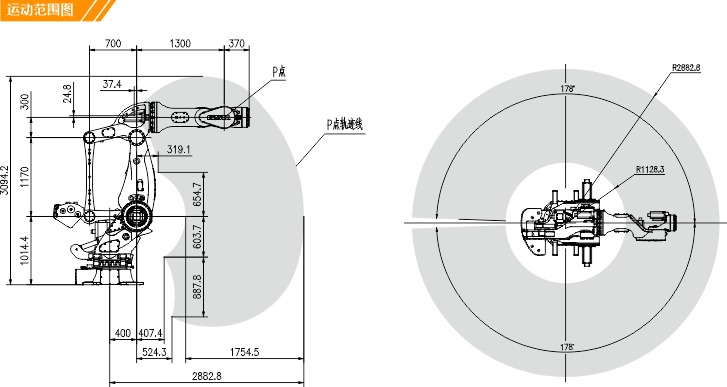

range of activities

Application scenarios

technical parameter

degree of freedom			6
drive mode			AC Servo Drive
Payload (kg)			500
Repeat positioning accuracy (mm)			±0.3
range of activities	J1	±178
		J2	+105-60
		J3	+70-62
		J4	±180
		J5	±115
		J6	±360
Maximum speed	J1	80
		J2	85
		J3	88
		J4	110
		J5	110
		J6	175
Maximum allowable torque (NM)	J4	3400
		J5	3400
		J6	1700
Movement radius (mm)			2882
Weight (kg)			3300
Note: Avoid contact with flammable, explosive, corrosive gases and liquids; Do not splash water, oil, dust; Keep away from electrical noise sources (plasma)
