Henan Baorun PZ series dry shotcrete machine/concrete shotcrete machine

Product details
strength:5.5kWOperating air pressure:0.3-0.5MPa
Health status:newMaximum aggregate size:20mm
Minimum order quantity:1 setAir consumption:7-8m³/min
Packaging Details:Fumigation-free wooden box or according to customer requirementsDelivery Details:Within 5-15 days after order confirmation
Free Design Services:Yesmaximum. Conveying distance:200 meters
Hose inner diameter:51 mmAfter-sales service provided:Engineers can repair machinery overseas
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypalCertification:ISO certification
port:Qingdao/Ningbo/ShanghaiWarranty:12 months
OEM/ODM:acceptableweight:600kg
Dimensions (L*W*H):1300*750*1180mmVoltage:380V, 380V
brand:XCMGSupply capacity:1000 sets per month
model:PZ-5place of origin; place of origin:Henan, China

Henan Baorun PZ series dry shotcrete machine/concrete shotcrete machine



Shotcrete machine is also called dry shot machine or shotcrete machine.

technical parameter:

type

PZ-5

PZ-6

PZ-7

ZSP-7

production capacity

5m³/hour

6 cubic meters/hour

7m³/hour

7m³/hour

concrete mix ratio

1:4-5

1:4-5

1:4-5

1:4-5

water-cement ratio

≤0.4

≤0.4

≤0.4

≤0.6

Maximum conveying distance

200m

200m

200m

300mm

Maximum aggregate size

φ20mm

φ20mm

φ20mm

φ20mm

Nozzle diameter

φ51mm

φ51mm

φ64mm

φ64mm

Operating wind pressure

0.3-0.5MPa

0.3-0.5MPa

0.3-0.5MPa

0.3-0.5MPa

Air consumption

7-8m³/min

7-8m³/min

10m³/min

10-12 m3/min

fill height

1.1m

1.1m

1.2m

1.2m

Motor Power

5.5KW

5.5KW

7.5KW

7.5KW

Voltage

380V

380V

380V

380V

Dimensions

1300*750* 1180mm

1300*750* 1180mm

1520*750* 1200mm

2100*900* 1200mm

gross weight

600 kg

600kg

850kg

1000kg



Shotcrete machine / shotcrete machine price / shotcrete machine



Perfect performance:



l Compact and beautiful in appearance.

l Stable and durable. Easy to operate and maintain.

l Suitable for various working environments.

l Mainly used for concrete construction such as tunnels, underground works, and slope protection.

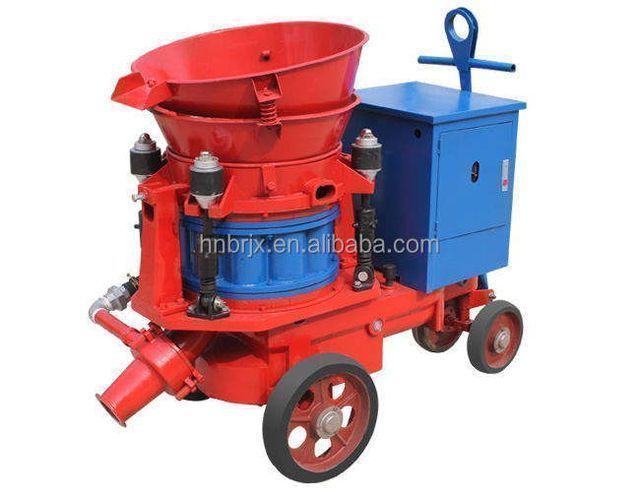

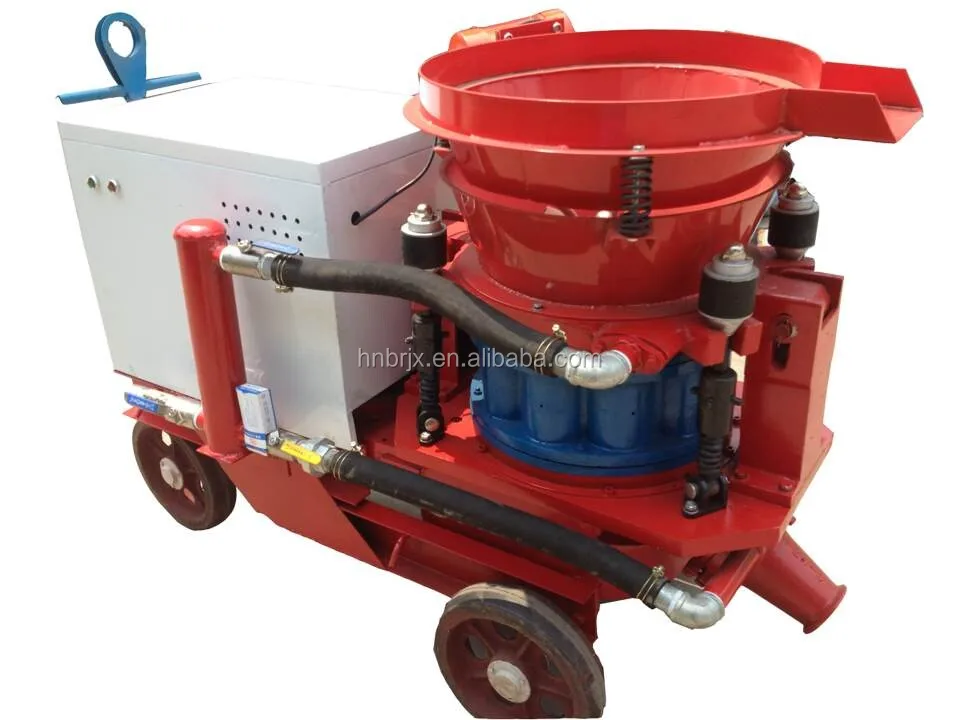

Product Details:

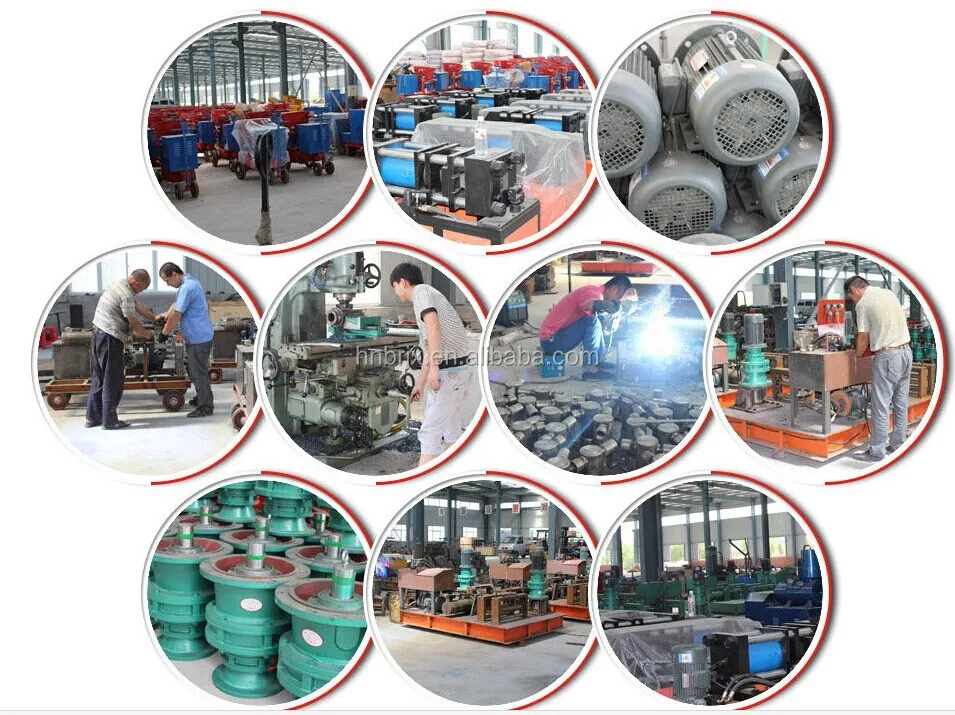

Workshop show:





company information:



Henan Baorun Machinery Co., Ltd. is a professional research and development, manufacturing engineering machinery, engineering machinery,

Profile cold working machinery and prestressing equipment.



The main products are spraying machine, grouting pump, cooling

Bending machine, upsetting machine, thread rolling machine, stretching machine

Bending machine, flange machine, etc., are widely used in coal, mining, railway, highway, water conservancy and hydropower, bridge and culvert engineering, metallurgy, chemical industry and other fields

and many more



Most of the products are exported to Russia, Pakistan, Arabia, South Africa, Southeast Asia and so on.



For more information, you can visit our website: www.hnbrjx.cn



FAQ:

MOQ: 1 set



•Packing: wooden case or according to customer requirements



• Shipping Port: Shanghai/Ningbo/Qingdao or other ports we can accept



•Service: 1 year warranty



What can we do for you?

1. We can change the color according to your actual requirements.
2. Customize the voltage motor according to your national standard.
3. Choose different wheels according to your needs.

Our advantage:

1: We are a professional manufacturer of industrial construction equipment and have our own brand "XCMG" in the domestic market, which has enjoyed a high reputation for many years.

2: We can guarantee the quality, good after-sale service, competitive price.

3: We are very close to Zhengzhou Xinzheng International Airport, which is convenient for customers to visit; We are located in Changge City, Henan Province, the center of China, with logistics extending in all directions, and we can guarantee fast delivery time.





For more information, you can visit our website: www.hnbrjx.cn
