PZ Series Dry Gunite Shotcrete/ Concrete Spraying Machine

Product details
Place of Origin:Henan China (Mainland);Package Type:wooden case;
Max Aggregate Size:20mm;OEM/ODM:acceptable;
Single volume:1 cm;Single gross weight:600 KG;
Condition:New;Delivery Detail:0 days after payment;
After-sales Service Provided:Engineers available to service machinery overseas;Max. Conveying Distance:200 meters;
Selling Units:Single item;Brand Name:XUGONG;
Voltage:380V;Hose Inner Diameter:51 mm;
Free design sevice:yes;MOQ:1 set;
Air Consumption:7-8cbm;Warranty:12 months;
Voltage:380V;Operation Wind Pressure:0.3-0.5 MPa;
Dimension(L*W*H):1300*750*1180 mm;Weight:600kgs;
Certification:ISO Certificated;Power(W):5.5 KW;

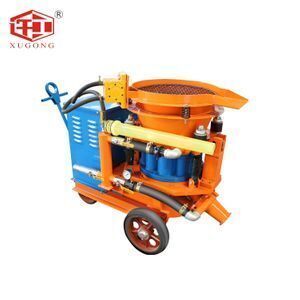

PZ Series Dry Gunite Shotcrete/ Concrete Spraying Machine



Shotcrete machine is also called dry shotcrete machine or gunite shotcrete machine.

Technical Parameters:

Type

PZ-5

PZ-6

PZ-7

ZSP-7

Production Capacity

5m³/hour

6m³/hour

7m³/hour

7m³/hour

Concrete Mixture Ratio

1:4-5

1:4-5

1:4-5

1:4-5

Water Cement Ratio

≤0.4

≤0.4

≤0.4

≤0.6

Maximum Conveying Distance

200m

200m

200m

300mm

Maximum Aggregate Size

φ20mm

φ20mm

φ20mm

φ20mm

Nozzle Diameter

φ51mm

φ51mm

φ64mm

φ64mm

Operation Wind Pressure

0.3-0.5 MPa

0.3-0.5 MPa

0.3-0.5 MPa

0.3-0.5 MPa

Air Consumption

7-8m³/min

7-8m³/min

10m³/min

10-12 m³/min

Filling Height

1.1m

1.1m

1.2m

1.2m

Power of Motor

5.5KW

5.5KW

7.5KW

7.5KW

Voltage

380V

380V

380V

380V

Overall Dimensions

1300*750* 1180mm

1300*750* 1180mm

1520*750* 1200mm

2100*900* 1200mm

Total Weight

600 kg

600kg

850kg

1000kg





Excellent Performance:



l   Tightly compact, attractive appearance.

l  Stable and durable. easy to operate and maintain.

l  Applicable for all kinds of working environment.

l  Mainly used for tunnel, underground work, slope protection and other concrete construction.

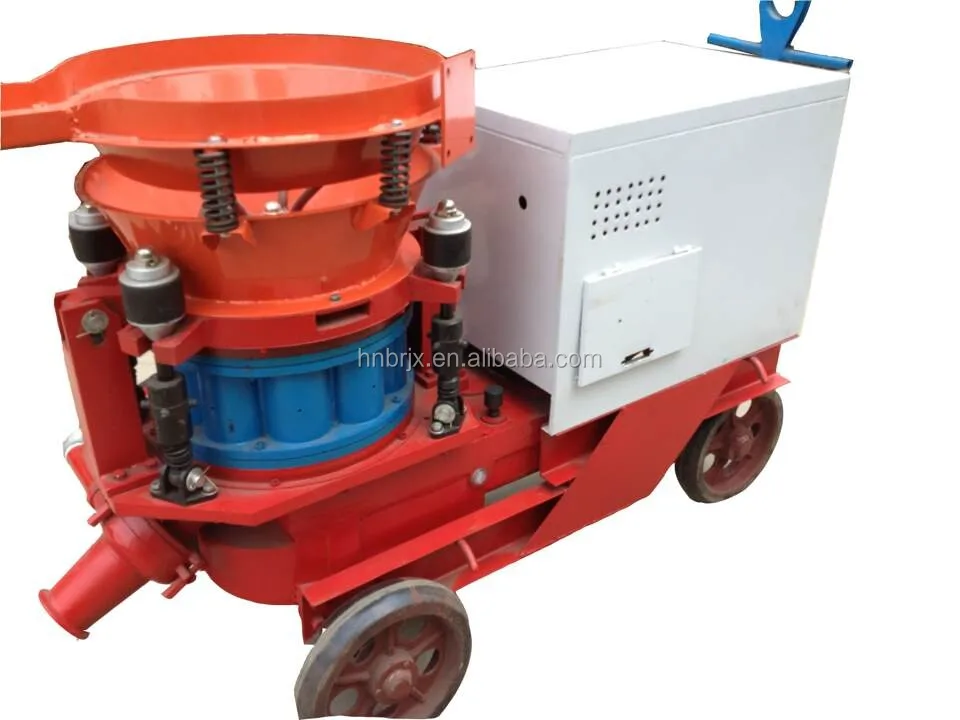

Product Details:





Workshop Show:





Company Information:



Henan Baorun Machinery CO., LTD is a big joint stock enterprise which is specialized in developing and manufacturing engineering machinery, construction machinery,

profile cold processing machinery and prestress equipment.



The major products are spraying machine, grouting pump, cold

bending machine, upsetting machine, thread rolling machine, stretch

bending machine, flange machine and etc., and widely used in the field of coal, mine, railway, highway, water conservancy and hydropower projects, bridge-culvert engineering , metallurgy, chemical engineering

 etc.



Most products are exported to Russia, Pakistan, Arab, South Africa, Southeast Asia and so on.



For more information, you can visit our website:  www.hnbrjx.cn



FAQ:

MOQ: 1 SET



•Packing: wooden case or according to customers' request



•Shipping Ports: SHANGHAI/NINGBO/QINGDAO or other we can acceptable



•Service: 1 Year's warranty



what can we do for you?

1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.

Our Advantages:

1: we are professional industrial construction equipment manufacturer, we have our own brand "XUGONG" in domestic market and enjoy high reputation for many years.

2: we can guarantee quality, good after-sale service, competitive price.

3: we are near from Zhengzhou Xinzheng International Airport ,it is convenient for clients come to visit; we are located in Changge City, Henan Province, the center of China, the logistic lead in all directions, we can guarantee fast delivery time.
