LCR digital bridge LW2812C high precision 100KHZ inductance and capacitance tester LCR instrument tester

  • Supplier: Guangzhou Myami Trading Co., Ltd.
  • Region: Guangdong, China
  • Contact: Mr Gor Lee
  • Price: $151.36 / 1 - 49 pieces
    $147.84 / 50 - 99 pieces
    $145.20 / >=100 pieces
  • Min. Order: 1 piece
Product details
Single package size:30X36X21 cmWarranty:other
Measurable resistance range:0.001Ω-99.99MΩAccuracy class:0.3vrms±10%
place of origin; place of origin:Guangdong, Chinabrand:length and width
Gross weight per piece:10.000 kgtype:LCR
model:LW2812CSales unit:single product
Packaging Preview:exhibit:digital
Name:LCR Testerproduct name:Precision LCR Meter Tester

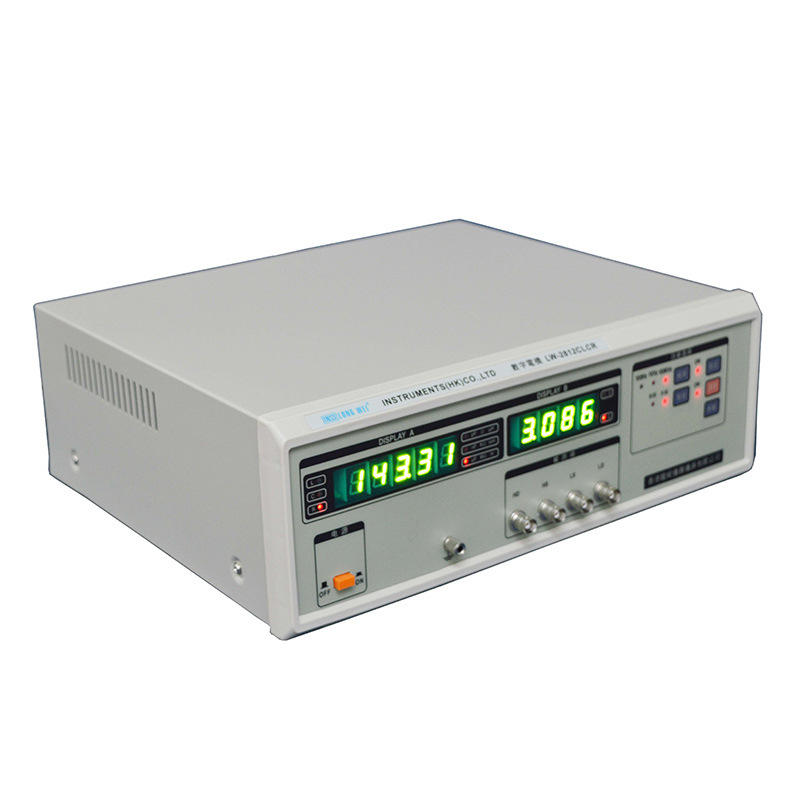

LCR digital bridge LW2812C high precision 100KHZ inductance and capacitance tester LCR instrument tester
feature:
1. Based on single chip microprocessor, advanced five-terminal measurement technology and microprocessor error correction technology are adopted. 2. It has kinetic energy such as shock resistance, range locking, and special reset. 3. Simple operation, high reliability, suitable for on-site testing 4. The instrument adopts advanced measurement principle and five-terminal measurement technology, which can measure accurately for a long time without special adjustment. In order to ensure the accurate measurement of the instrument, the stray capacitance and lead resistance caused by the test clip can be removed through the zero-clearing function of the instrument. 5. Measurement parameters: inductance L, capacitance C, resistance R, quality factor Q, loss angle
application:LW2812C LCR digital bridge is an intelligent parameter measuring instrument that automatically measures inductance L, capacitance C, impedance R, loss tangent D and quality factor Q based on microprocessor technology. The instrument integrates practical functions, excellent performance and convenient operation, and can be widely used in factories, colleges and universities and other users to accurately measure component parameters.
The instrument adopts advanced measurement principle and five-terminal measurement technology, which can measure long-term accuracy without special adjustment. In order to ensure the accurate measurement of the instrument, the stray capacitance and lead resistance caused by the test clip can be removed through the "0" function of the instrument.
Specification
Measurement parameters
Inductance (L) Capacitance (C) Resistance (R) Quality Factor (Q) Loss Tangent (D)
Measurement frequency
LW-2812C: 100Hz 1KHz 100KHz
Current measurement level
0.3vrms±10%(no load)
Measuring speed
4-8 times/sec
Measuring range
L: 0.01μH-9999H Q: 0.001-9999
C: 0.01PF-9999μF D: 0.0001-99999 R: 0.001Ω-99.99MΩ
strength
AC220V±10% 50Hz
size
360×320×140mm
weight
3.5Kg
