Origin: | Guangdong, China | Gross weight per piece: | 2.000 kg |
Display: | 2.8 inch TFT LCD screen | model: | ET430 |
Name: | LCR tester | brand: | Processing |
exhibit: | digital | Single pack size: | 30.0X25.0X10.0 cm |
Test frequency: | 10khz | Sales unit: | single product |
Measurable resistance range: | 0.0001Ω~20.000MΩ | Warranty: | 3 months - 1 year |
type: | handheld bridge | Package preview: | |
level of accuracy: | 0.3%+4 frequency points | Calibration function: | load |

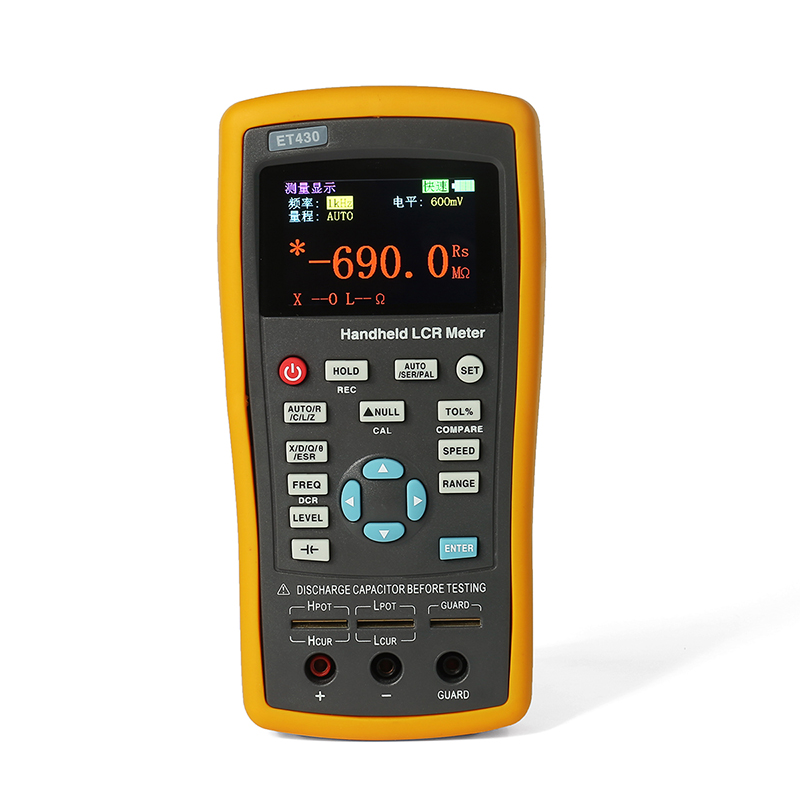

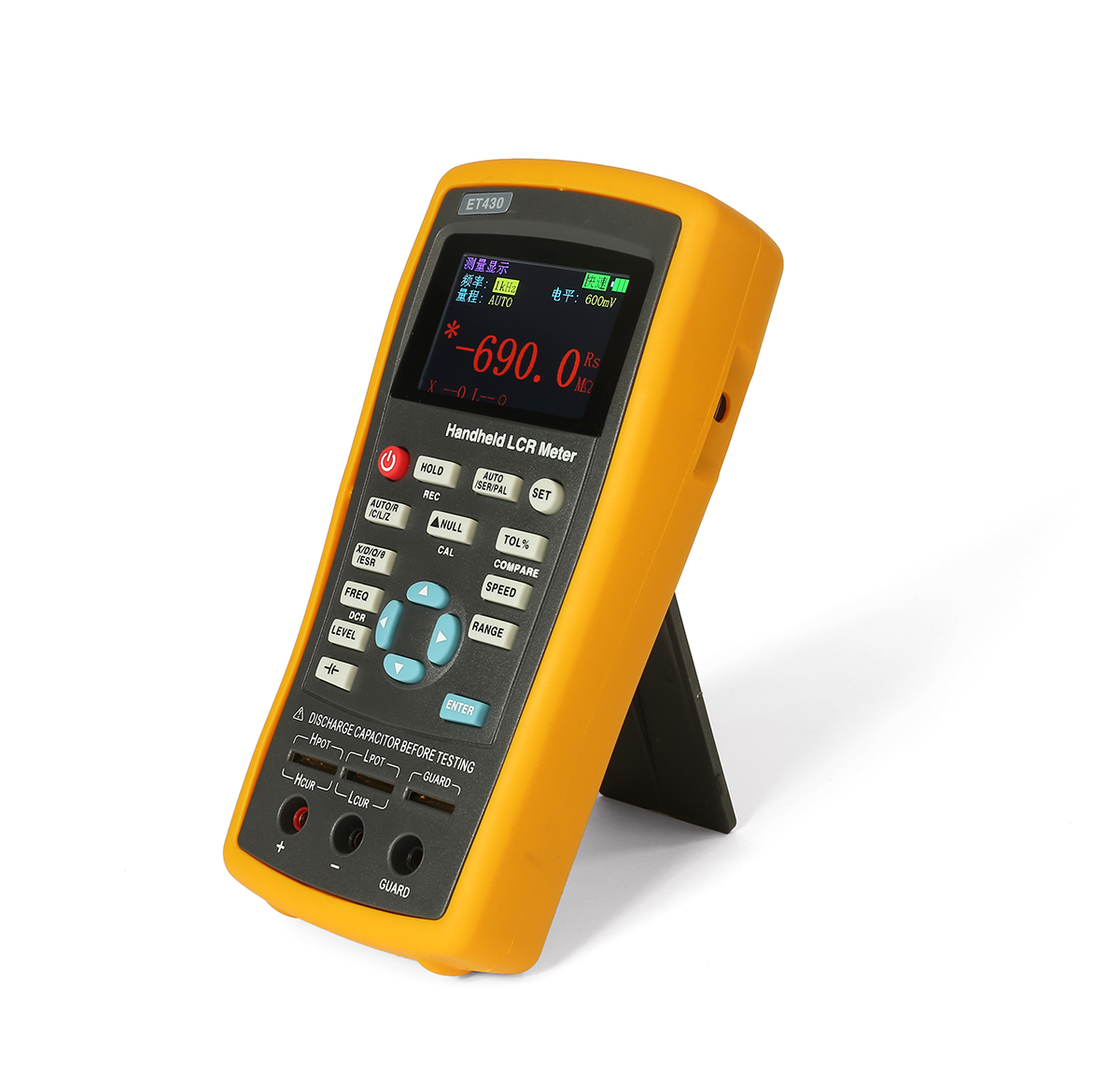

product name: | 10kHz Digital LCR Meter |
Model
|
ET430
|
ET431
|

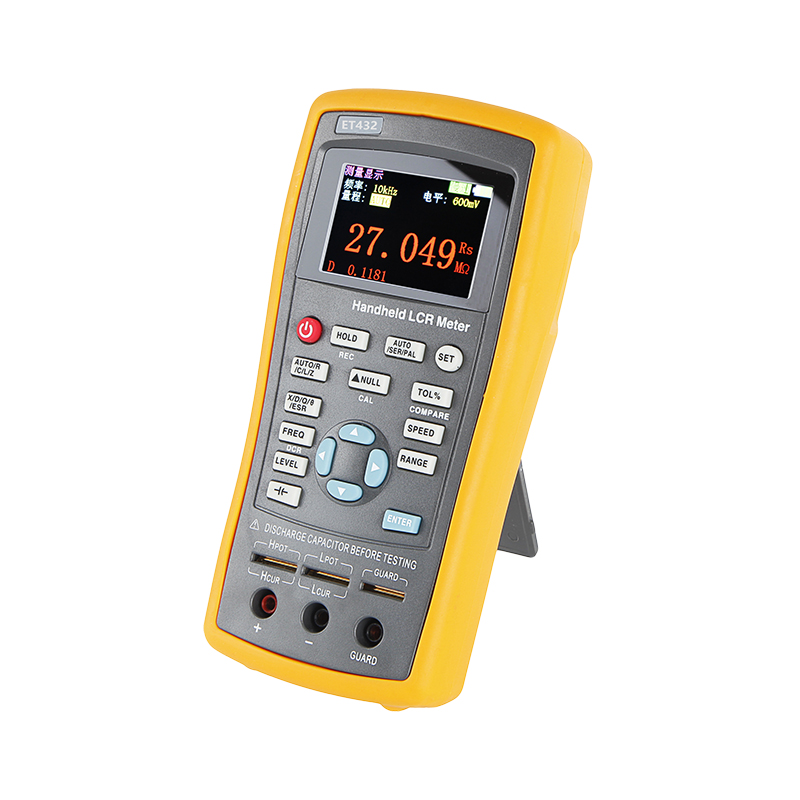

ET432
|
ET433
|
||||
test frequency |
100 Hz, 120 Hz,
1kHz, 10kHz,
40kHz, 100kHz
|
100Hz, 120Hz, 1kHz, 10KHz
|
100Hz, 120Hz, 1kHz, 10kHz, 40kHz, 100kHz
|
100Hz-100kHz
Continuously adjustable,
1 Hz as step size
|
||||
basic precision |
0.3%
|
0.2%
|
0.2%
|
0.2%
|
||||
display screen |
2.8 inch TFT LCD screen |
|||||||
display digits |
Main parameters: 5 digits Secondary parameter: 5 digits |
|||||||
Measurement parameters |
Main parameters: L/C/R/Z Secondary parameters: X/D/Q/θ/ESR |
|||||||
Electrolytic capacitor method |
√
|
√
|
√
|
√
|
||||
DCR mode |
x
|
√
|
√
|
√
|
||||
Measuring range |
L: 0.000μH~2000H, C: 0.000pF ~ 20.000mF, On-resistance: 0.0001Ω~20.000MΩ |
|||||||
Measure display speed |
slow, medium, fast |
|||||||
internal deviation |
x |
0-500mV adjustable, step 1mV. |
||||||
test level |
0.3Vrms, 0.6Vrms |
0.1Vrms, 0.3Vrms, 0.6Vrms, 1Vrms |
10mV-1100mV 1mV adjustable |
|||||
Calibration function |
Open calibration, short calibration |
|||||||
filter function |
The filtering limit range can be set from 1% to 50%, The fixed points are 1%, 5%, 10%, 20%. |
|||||||
Deviation measurement |
Used to compare and display the percentage deviation of components from the set nominal value |
|||||||
others |
Backlight brightness adjustment, Chinese and English optional, USB device and automatic shutdown time |
|||||||
Accessories: |
||||||||
Standard configuration |
1. Mini USB cable; 2. Power adapter; 3. Shorting bar; 4. Red and black rubber plug; 5. High capacity lithium battery |
|||||||
/ |
Kelvin clip |
