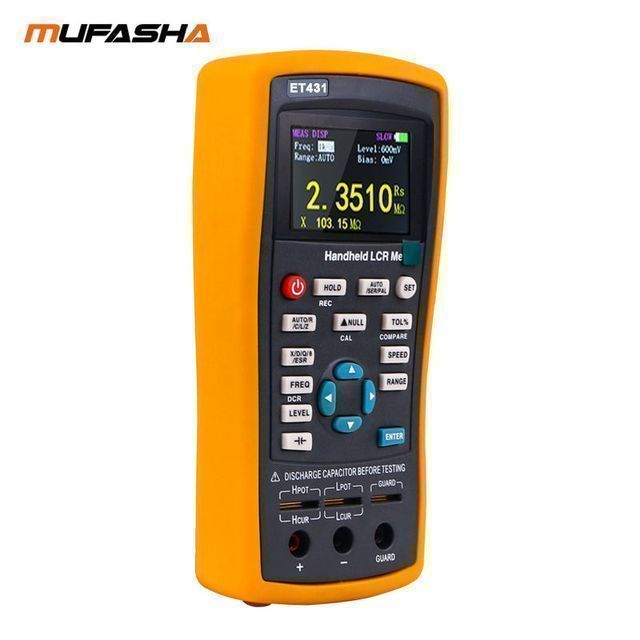

MUFASHA ET431 capacitance meter portable digital lcr meter

Supplier: Changzhou Boer High Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jay Li
Price: $146.82 / 1 - 99 pieces
$131.36 / 100 - 999 pieces
$123.64 / 1000 - 9999 pieces
$109.73 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Rear bracket:	Yes	Warranty:	3 months - 1 year
Gross weight per piece:	1.200 kg	Packaging Preview:
type:	LCR meter	Calibration function:	Open circuit calibration, short circuit calibration
Sales unit:	single product	Display:	2.8-inch TFT LCD screen
model:	ET431	Measurable resistance range:	0.0001Ω~20.000MΩ
place of origin; place of origin:	Jiangsu, China	Accuracy class:	0.2%
brand:	Mufasa	Single package size:	28X22.5X8 cm
coronavirus:	Yes	Packaging Details:	carton

Product Description

Product description: ET43 series handheld LCR is a portable handheld measuring instrument used to measure the parameters of components such as inductance, capacitance and resistance. With 5V lithium battery, suitable for desktop applications. It is also portable and mobile.

Product parameters

Test frequency	100Hz, 20Hz 1KHz, 10KHz 40kHz, 100KHz	100Hz, 120Hz 1KHz, 10KHz	100Hz, 120Hz 1KHz, 10KHz 40kHz, 100KHz	100Hz-100KHz Continuously adjustable, 1Hz step
Basic accuracy	0.3%	0.2%	0.2%	0.2%
display	2.8-inch TFT LCD screen
Display digits	Major parameter: 5 digits, Minor parameter: 5 digits
Measurement parameters	Primary parameters: L/C/R/Z, secondary parameters: X/D/Q/θ/ESR
Electrolytic Capacitor Mode	√	√	√	√
DCR mode	×	√	√	√
Measuring range	L: 0.000µH～2000H, C: 0.000pF～20.000mF, R: 0.0001Ω～20.000MΩ
Measuring display speed	1 time/sec (slow), 2 times/sec (medium speed), 4 times/sec (fast)
internal bias	×	0-500mV adjustable, 1mV step
test level	300mVrms; 600mVrms	100mVrms, 300mVrms, 600mVrms, 1Vrms			10mV-1100mV adjustable
Calibration function	Open circuit calibration, short circuit calibration
Filter function	The filter limit range can be set from 1% to 50%, and the fixed points are 1%, 5%, 10%, and 20%.
Bias measurement	Used to compare the deviation percentage of the display element with the set nominal value
Operating temperature	0℃~40℃
strength	2600 mA
Gift box weight/dimension	900g/27021570mm
Kit Contents	Handheld LCR (built-in lithium battery), CD, Mini-USB communication cable, power adapter, red and black rubber plug - alligator clip Test lead, shorting bar, 4-terminal Kelvin test clip (optional for ET430, standard for other models)

detailed picture
