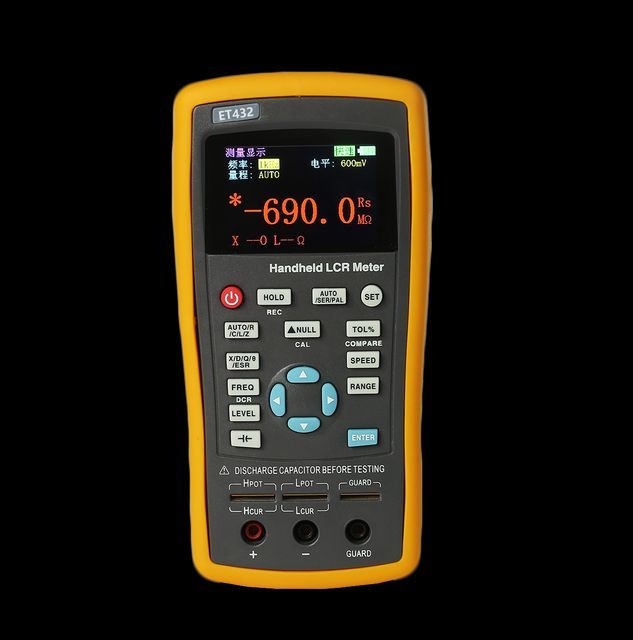

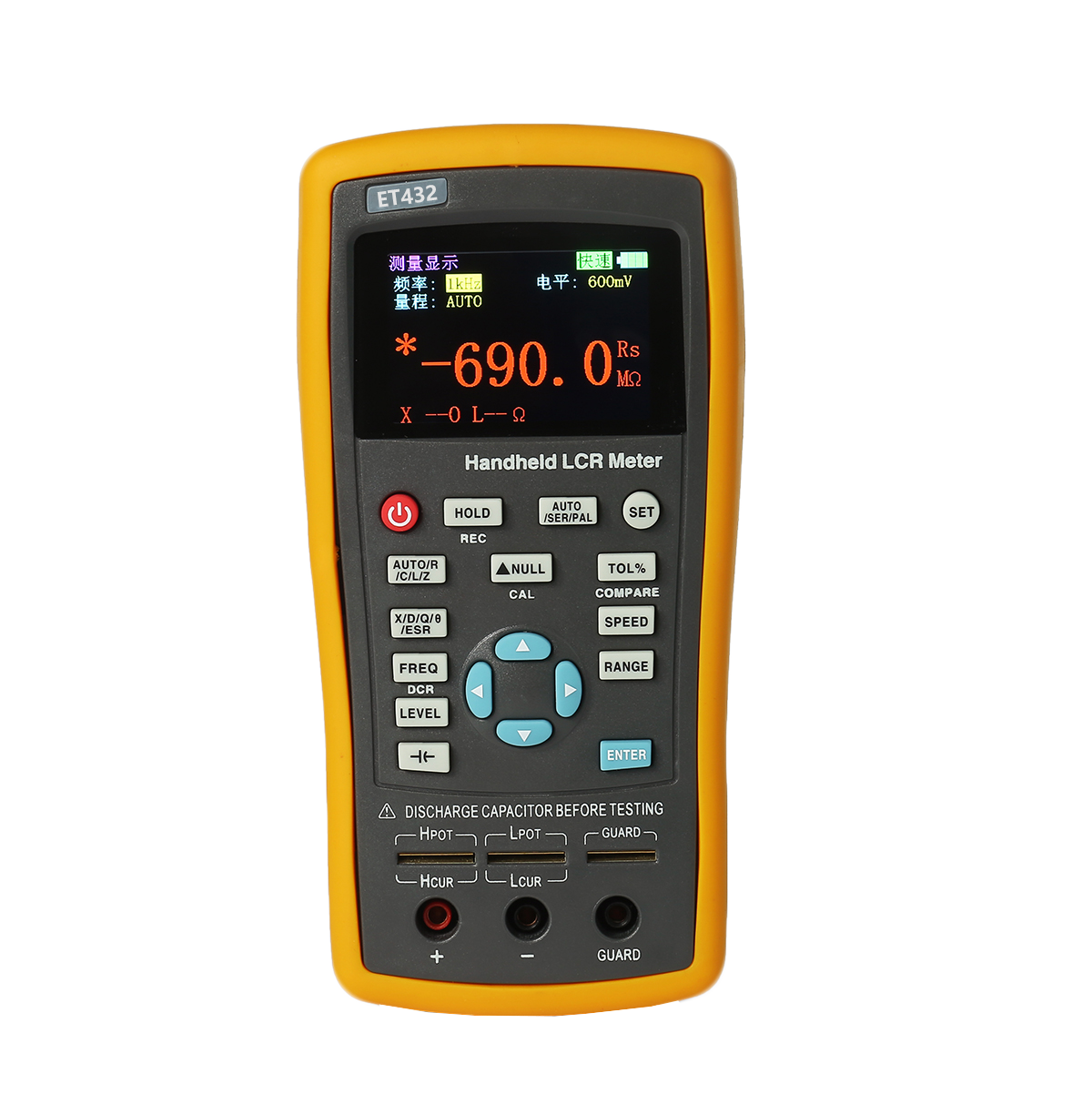

EAST TESTER ET431 series handheld LCR bridge tester capacitance inductance resistance home appliance repair multimeter goodprice

Supplier: Shishi Bada Electrical Automation Trading Co., Ltd.
Region: Fujian, China
Contact: Ms yan wu
Price: $96.83 / 10 - 99 pieces
$86.91 / 100 - 299 pieces
$77.26 / >=300 pieces
Min. Order: 10 pieces

Click here to contact

Product details

level of accuracy:	0.2%	Display digits:	Primary parameter: 5 digits Secondary parameter: 5 digits
model:	ET431	Test level:	0.3%
type:	Handheld	port:	Xiamen
Origin:	zhejiang	Measurable resistance range:	other
Display:	display screen	Supply capacity:	10000 boxes per month
Model:	ET430	Basic precision:	0.3%
brand:	Oriental Tester	Warranty:	other
Test frequency:	100Hz, 120Hz, 1KHz, 10KHz, 40kHz, 100KHz	payment terms:	wire transfer

Product Description

Model	ET430	ET431	ET432	ET433
test frequency	100 Hz, 120 Hz, 1KHz, 10KHz, 40kHz, 100kHz	100Hz, 120Hz, 1KHz, 10KHz	100Hz, 120Hz, 1KHz, 10KHz, 40kHz, 100KHz	100Hz-100KHz Continuously adjustable, 1 Hz as step size
basic accuracy	0.3%	0.2%	0.2%	0.2%

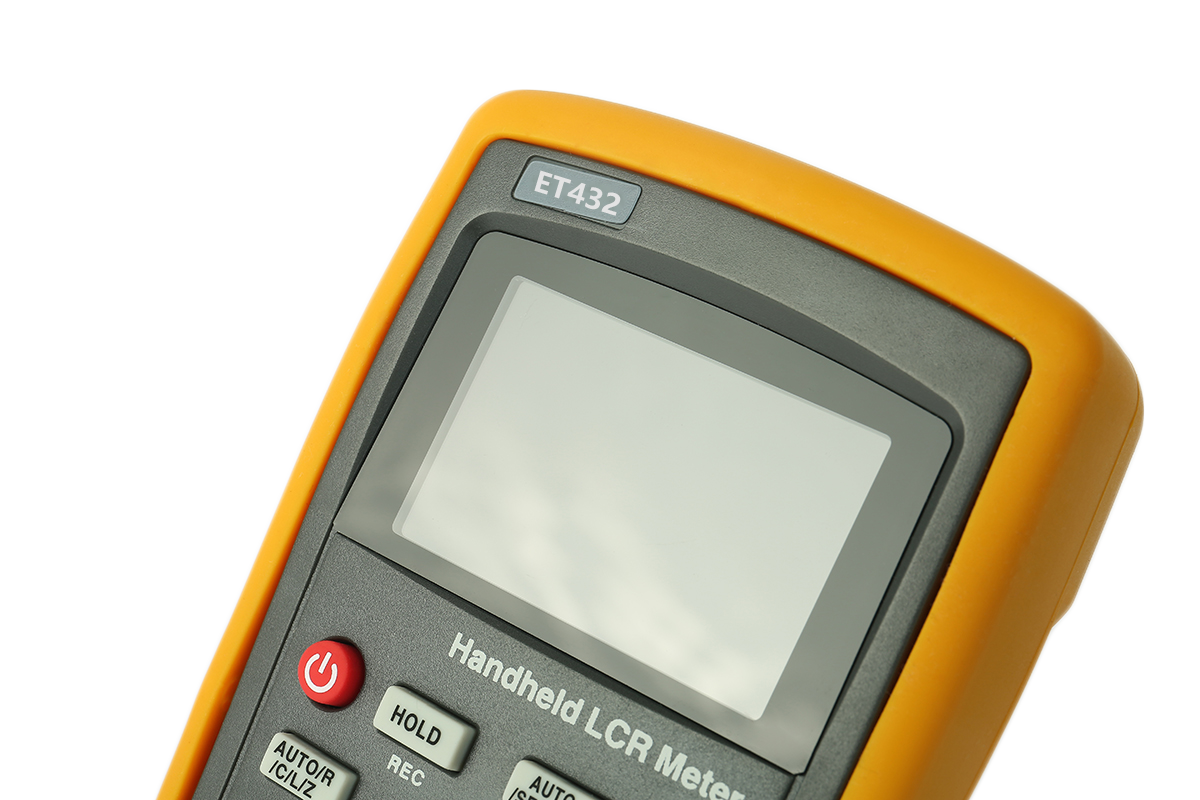

display screen	2.8 inch TFT LCD screen
display digits	Main parameters: 5 digits Secondary parameter: 5 digits
Measurement parameters:	Main parameters: L/C/R/Z Secondary parameters: X/D/Q/θ/ESR
Electrolytic capacitor method	√	√	√	√
DCR mode	x	√	√	√
Measuring range	L: 0.000μH～2000H, C: 0.000pF ~ 20.000mF, On-resistance: 0.0001Ω～20.000MΩ
Measure display speed	1 time/second (slow), 2 times/second (medium), 4 times/second (fast)
internal deviation	x	0-500mV adjustable, step 1mV.
test level	300mVrms, 600mVrms	100mVrms, 300mVrms, 600mVrms, 1Vrms			10mV-1100mV adjustable
Calibration function	Open calibration, short calibration
filter function	The filter limit range can be set from 1% to 50%, and the fixed points are 1%, 5%, 10%, 20%.
Deviation measurement	Used to compare and display the percentage deviation of components from the set nominal value

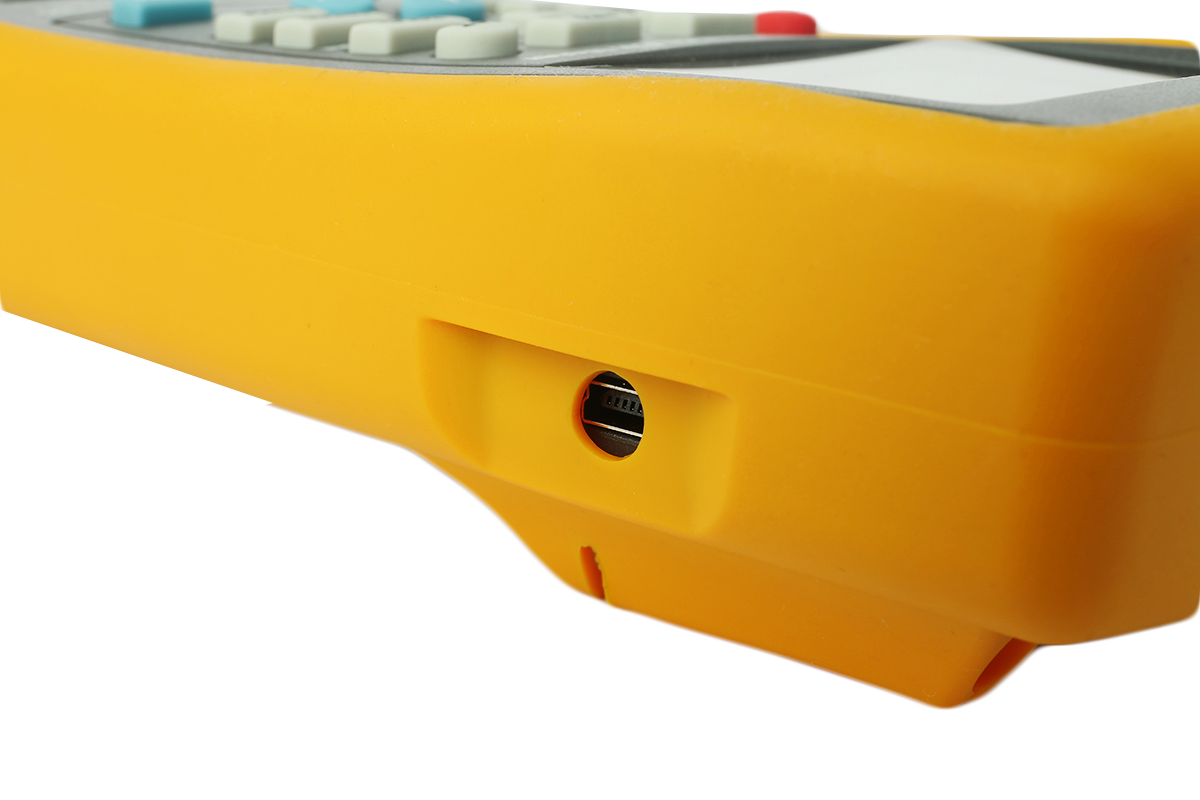

others	Backlight brightness adjustment, Chinese and English optional, USB device and automatic shutdown time

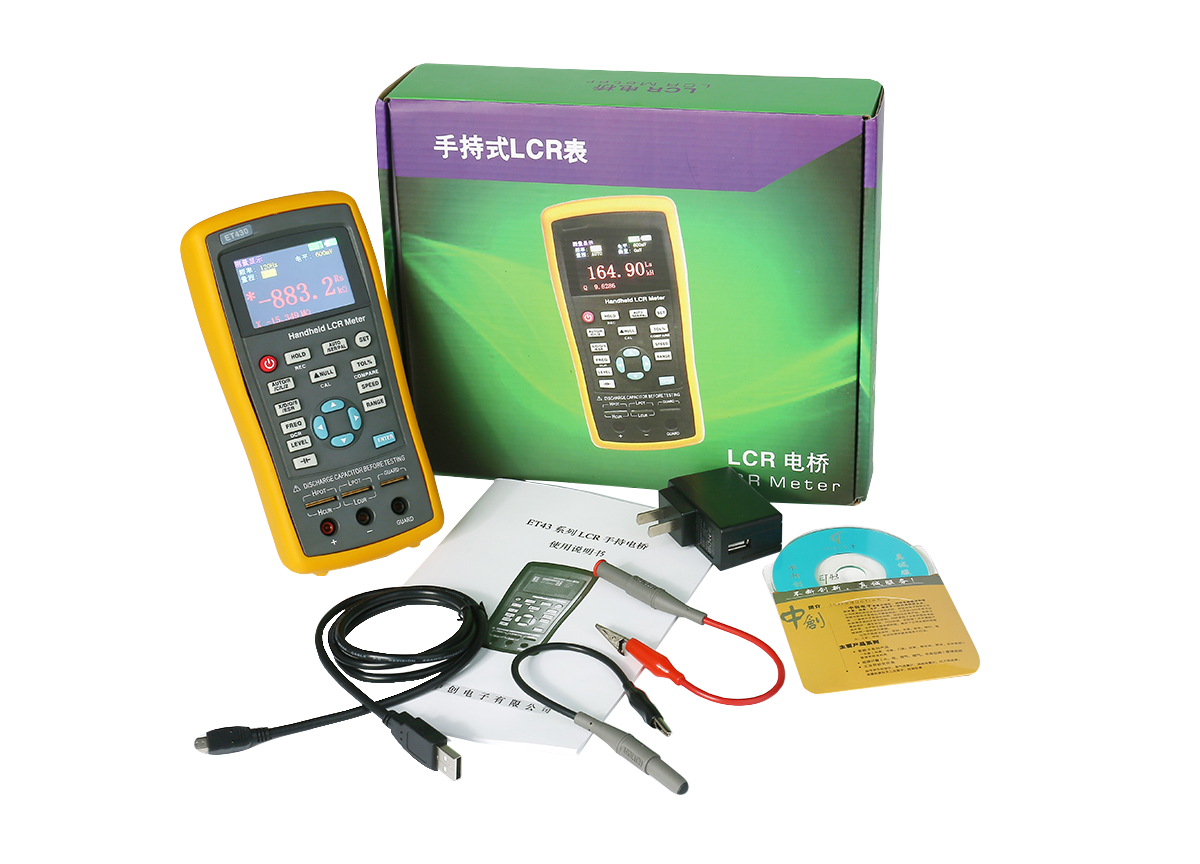

Accessories
Standard configuration	1. Mini USB cable; 2. Power adapter; 3. Shorting bar; 4. Red and black rubber plug; 5. High-capacity lithium battery
	/	Kelvin clip
Optional	Kelvin clip SMD clip	SMD clip
