Marketing Type: | New Products 2020 | Certification: | ISO9001:2008 |
place of origin; place of origin: | Henan, China | Showroom location: | Philippines, Indonesia, Pakistan, Mexico, Russia, South Korea, South Africa, Nigeria, Uzbekistan, Tajikistan |
Voltage: | According to local requirements. | Install: | under technical guidance |
Raw materials: | Gypsum, limestone, cement | color: | According to customer requirements |
Mechanical test report: | if | payment terms: | letter of credit, wire transfer |
Packaging Details: | Standard export containers, bare metal, motors and small parts are packed in wooden boxes. | type: | Fully automatic |
application: | Gypsum powder production, mining, quarrying, chemical industry | Dimensions (L*W*H): | According to model |
weight: | 5000 kg | Health status: | new |
Supply capacity: | 5 sets per month as per your requirement | capacity: | 2.7-40TPH |
quality: | high level | Main selling point: | high productivity |
Video external inspection: | if | use: | Production of gypsum powder |
Warranty: | 1 year | Advantage: | high efficiency |
Applicable industries: | Manufacturing, Energy & Mining | product name: | Gypsum powder making machine |
Core components: | PLC, engine, bearing, gearbox, motor | brand: | Turi |
port: | Qingdao, Tianjin, Shanghai or other port requirements | Core Components Warranty: | 1 year |
strength: | 200-800kw | | |
Product Description

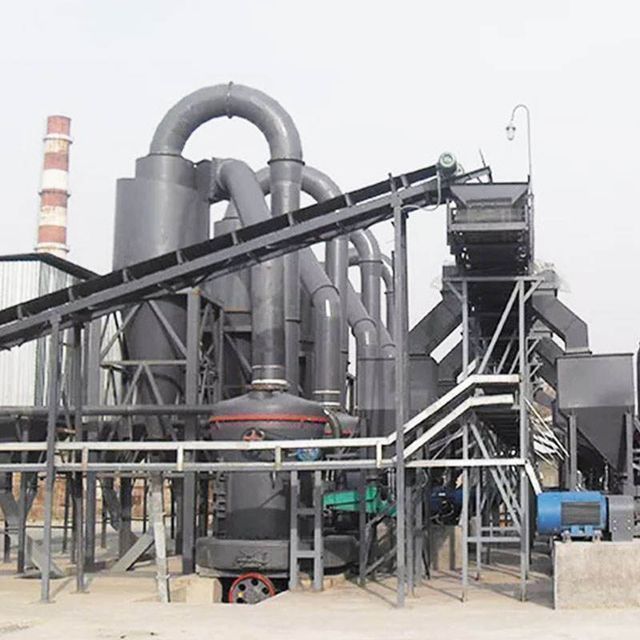

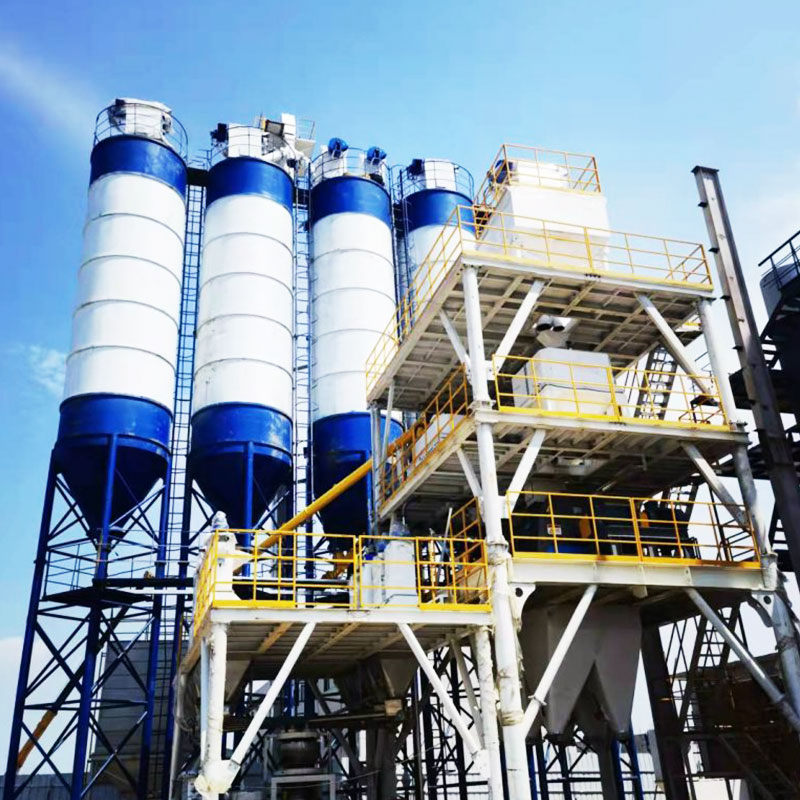

Gypsum powder production line is to produce gypsum powder that matches with gypsum board.The gypsum powder production line using natural gypsum as raw material is equipped with a variety of advanced technical equipment at home and abroad. The powder is classified by a classifier. The qualified powder that meets the required fineness is sent to the calciner, and the unqualified powder is returned to the mill for further processing. Gypsum powder, commonly known as plaster of paris, is stored in finished silos and used to make gypsum board stock.
application
Gypsum calcination process equipment production line - the latest Raymond mill, with bearing gear transmission, internal oil lubrication system, arc air duct and other intellectual property rights, has become one of the most advanced mills in the world.Widely used in cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic minerals, building materials, ceramics and other industries. It can process limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, phosphate rock, manganese ore, iron ore, quartz, activated carbon, carbon black, ceramics, coal and other materials.
working principle

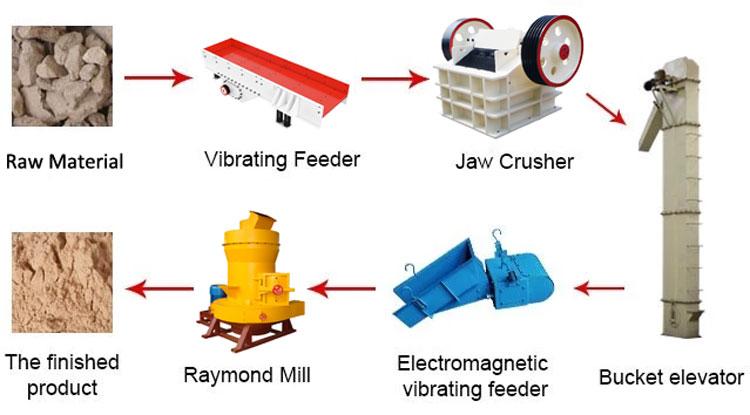

1>.First, the raw material is crushed to the size required by the Raymond mill by a stone crusher.2>.Second, the raw material enters the grinding chamber at a uniform speed through a vibrating feeder.
3>.Third, the raw material lifted by the bucket is ground into powder between the ring and rollers.
4>.Fourth, the powder is blown to the cyclone collector through the classifier and collected through the discharge valve. Unwanted powders that do not pass through the classifier will be reground to desired powders.
technical parameter
Specification | | | |
Annual production capacity | capacity per hour | Annual gypsum consumption | Calciner size |
20,000 tons | 2.7 tons | 24000 tons | 4.5 x 1.0 x 1.2 meters |
30,000 tons | 4.2 tons | 36000 tons | 4.5 x 1.2 x 1.4 meters |
50,000 tons | 6.9 tons | 60,000 tons | 4.5 x 1.4 x 1.6 meters |
60,000 tons | 8.3 tons | 72000 tons | 4.5 x 1.6 x 1.8 meters |
100,000 tons | 13.88 tons | 120,000 tons | 4.5 x 2.0 x 2.2 meters |
150,000 tons | 20.83 tons | 180,000 tons | 4.5 x 2.2 x 2.4 meters |
200,000 tons | 27.77 tons | 240,000 tons | 4.5 x 2.4 x 2.6 meters |
Gypsum product parameters:1. Fineness: ≥100 mesh; 2. Bending strength (directly related to raw materials): ≥1.8Mpa; Compressive strength: ≥3.0Mpa; 3. Main content: hemihydrate: ≥80% (adjustable); Gypsum <5% (adjustable); Soluble anhydrous <5% (adjustable). 4. Initial setting time: 3-8min (adjustable); Final setting time: 6~15min (adjustable) 5. Consistency: 65%~75% (adjustable)
feature

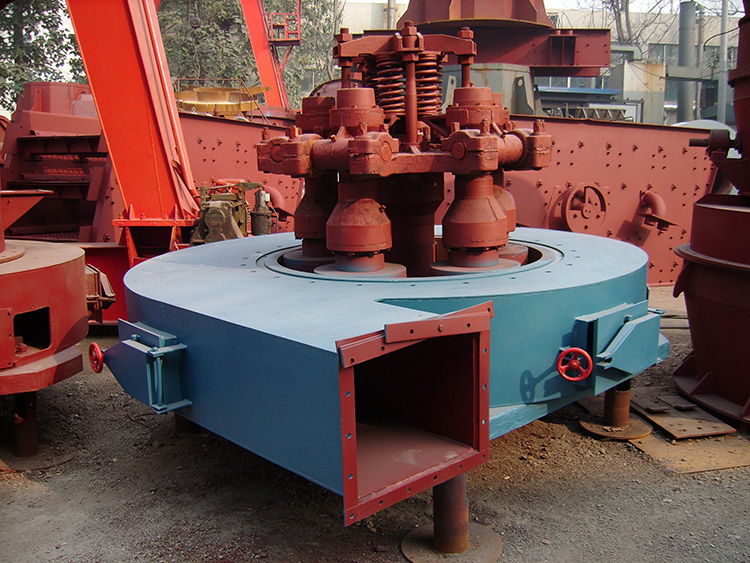

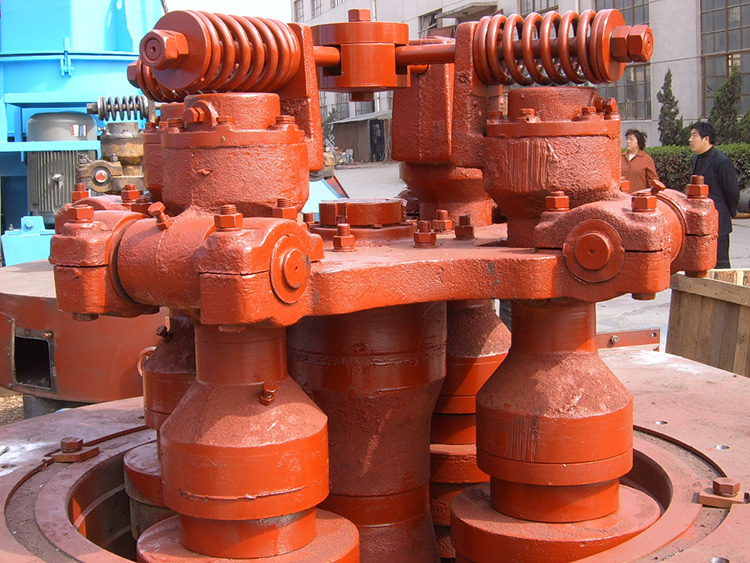

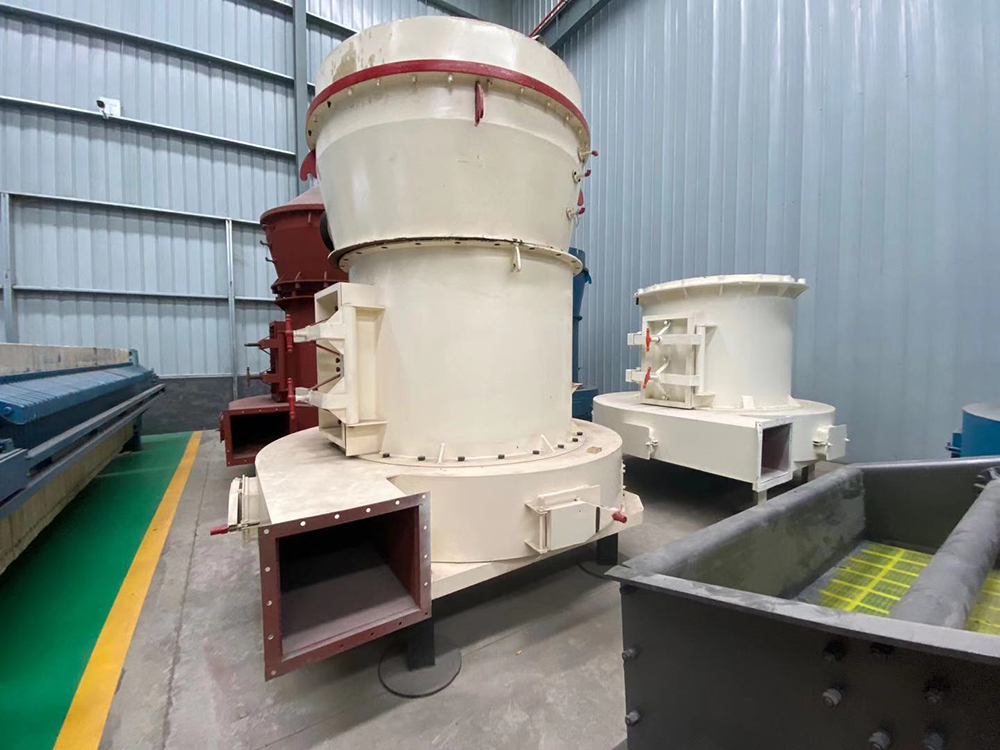

Raymond mill features
1. Compared with other mills, the output is increased by 10%-20%. 2. The ore with Mohs hardness below 9.3 can be ground. Up to 1000 meshes.

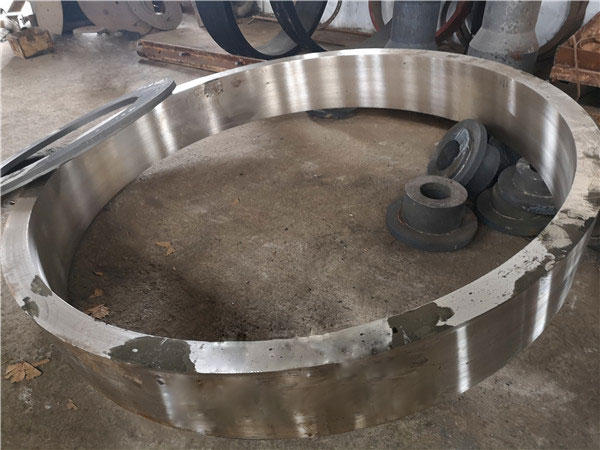

Raymond Grinder Grinding Ring

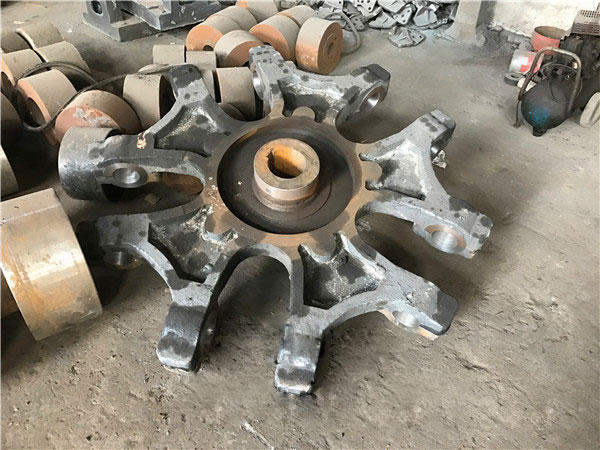

Raymond Mill Plum Blossom Stand
