Ball Mill Stone Mill Stone Ball Mill Crusher Grinder Small Mini Ball Mill Price

Product details
Health status:newproduct name:Gold mine grinding machine
Showroom location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Tajikistan, Japan, Malaysia, Australia, ball mill pricesprice:Negotiable
payment terms:Western Union, T/T, MoneyGram, AlibabaCore Components Warranty:2 years
port:Qingdao, Tianjin, Shanghai, Ningbo, Guangzhou, ShenzhenMotor Type:AC motor
Supply capacity:20 sets per monthquality:ISO9001:2008 certificate
type:ball millCapacity (tons/hour):2tph to 100tph
brand:FsyMarketing Type:New product
After-sales service provided:Online supportplace of origin; place of origin:Henan, China
Mechanical test report:ifWarranty:2 years
weight:2000kgVideo external inspection:if
advantage:Easy to operateModel:900x3000
Core components:Engines, Bearings, Gearboxes, Motors, Pressure Vessels, GearsGrinding Media:metal ball
spare parts:lift rodPackaging Details:Big bare, small wooden box hot sale professional factory high efficiency vibrating screen quarry for sale
Factory tour:warm welcomeTest and install:Professional Engineer Supplies
Packaging Preview:Applicable industries:Manufacturing Plant, Construction Engineering, Energy and Mining, Other, Ball Mill Stone Mill, Gold Mine Ball Mill Ball Mill, Ball Mill, Grinder Ball Mill Price
Product Description

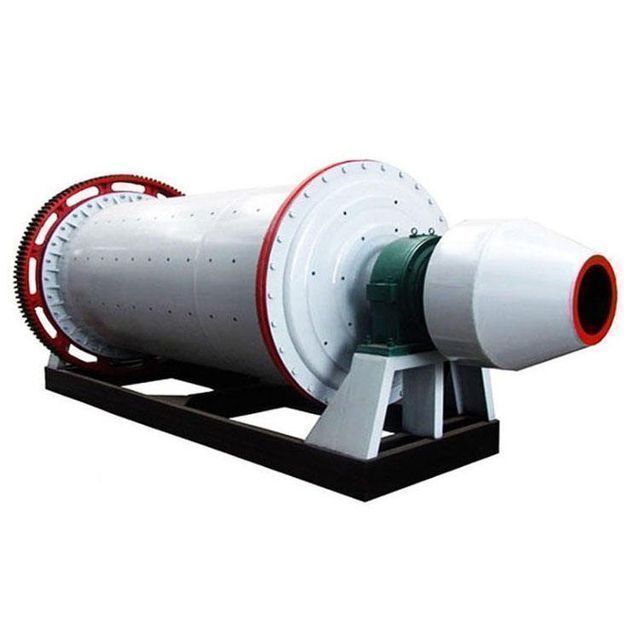

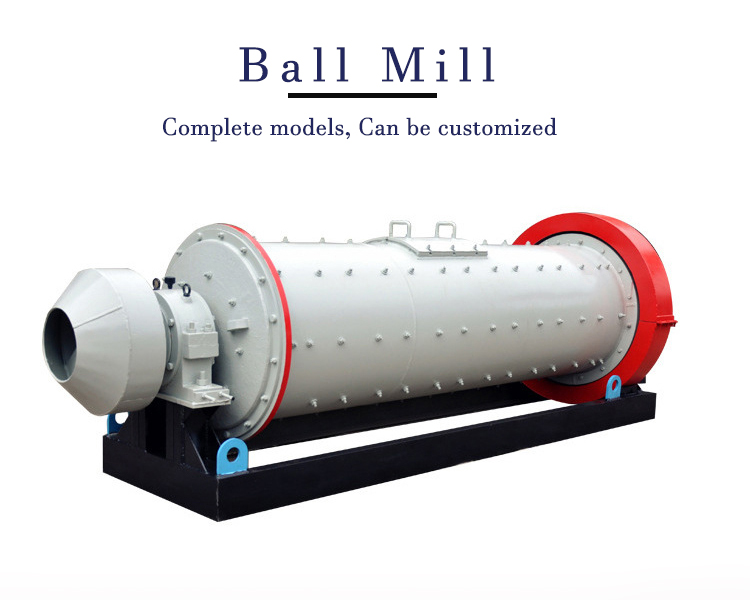

FSY ball mill is a kind of grinding machine used to grind materials into extremely fine powder, mainly used in mineral processing industry. Ball mills, also known as pulverizers, ball mills, can wet or dry grind various ores and other materials as required.
feature:
1. The inner lining can be replaced. 2. Mineral ball mill is an efficient tool for grinding various materials into fine powder. 3. Two grinding methods: dry method and wet method. 4. The final particle size depends entirely on the hardness of the material you are grinding. 5. With the rotation of the barrel, the material is pulverized between the various grinding media, which mix and pulverize the product into fine powder within a few hours.
data sheet
Model
Feed size (mm)
Discharge size (mm)
Capacity (tons/hour)
Power (kW)
Weight (tons)
900*1800
≤20
0.075-0.089
0.65-2
18.5
1.5
900*3000
≤20
0.075-0.089
1.1-3.5
twenty two
2.7
1200*2400
≤25
0.075-0.6
1.6-5.8
37
4.6
1200*4500
≤25
0.074-0.4
1.6-5.8
55
5.5
1500*3000
≤25
0.074-0.4
2-5
75
9
1500*5700
≤25
0.074-0.4
3.5-6
130
17
1830*4500
≤25
0.074-0.4
4.5-12
155
15
1830*6400
≤25
0.074-0.4
6.5-15
210
twenty one
1830*7000
≤25
0.074-0.4
7.5-17
245
twenty three
2100*4500
≤25
0.074-0.4
8-43
245
twenty four
2100*7000
≤25
0.074-0.4
8-48
280
26
2200*4500
≤25
0.074-0.4
9-45
280
27
2200*6500
≤25
0.074-0.4
14-26
380
35
2200*7000
≤25
0.074-0.4
15-28
380
35
2400*3000
≤25
0.074-0.4
30-50
245
twenty three
2400*4500
≤25
0.074-0.4
40-60
320
30
2700*3600
≤25
0.074-0.4
45-80
430
40
2700*4500
≤25
0.074-0.4
50-90
430
48
2700*13000
≤25
0.074-0.4
50-90
630
60
3200*4500
≤25
0.074-0.4
-
800
65

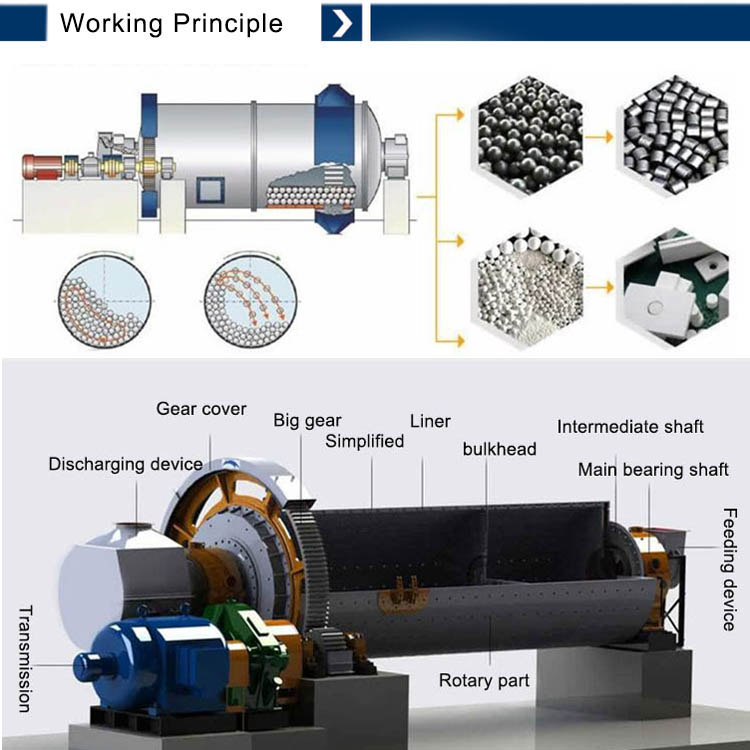

The ball mill is a horizontal cylindrical rotating device, driven by edge gears, with two chambers and lattices. The material enters the first chamber through the feeding port, and there are stage lining plates, corrugated lining plates and various steel balls in the first chamber. The rotation of the housing creates eccentricity, this force brings the ball to a certain height, and the ball then descends by gravity, which will impact and grind the material. After the primary grinding in the first chamber, the material enters the second chamber through the sorting screen, and the second chamber has a flat lining plate and steel balls. After the secondary grinding, the material is discharged through the discharge screen.

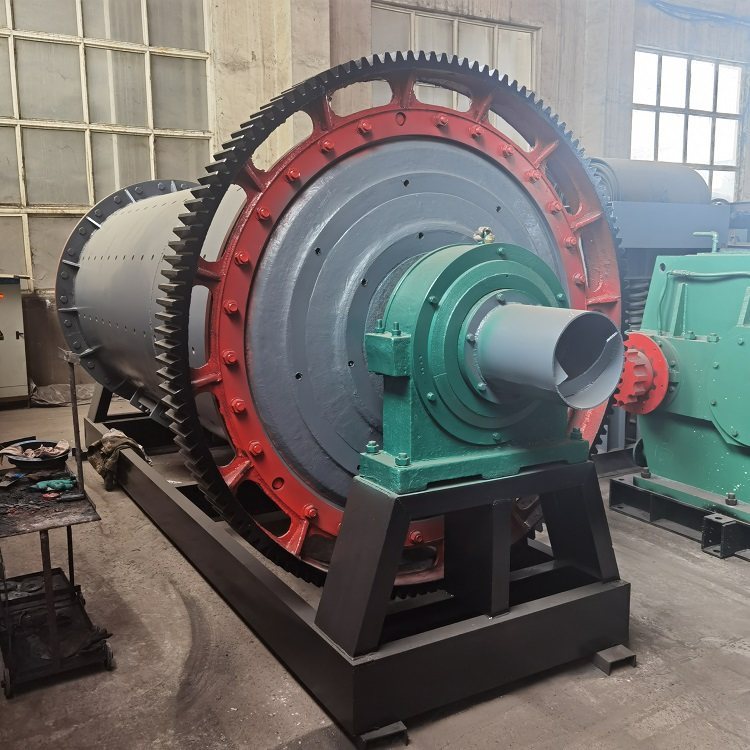

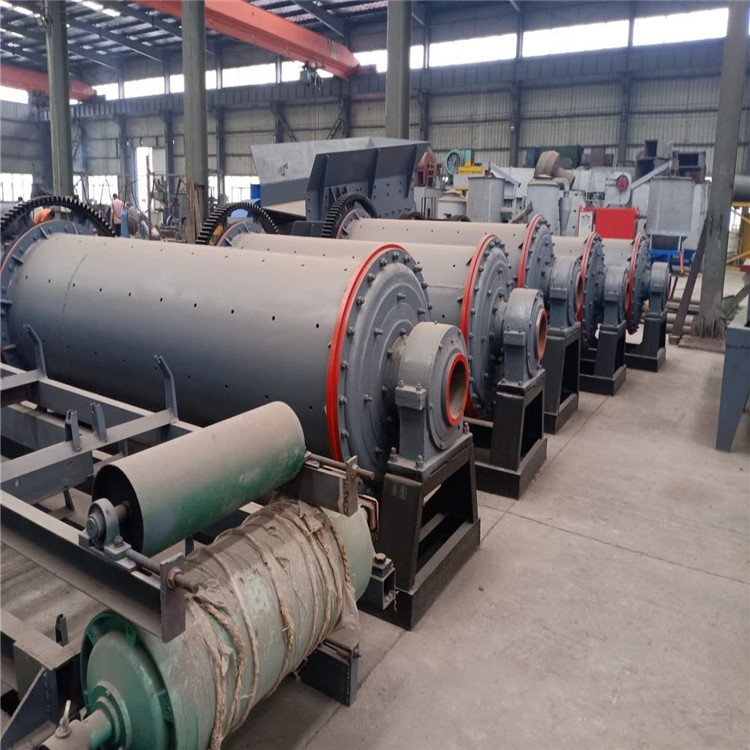

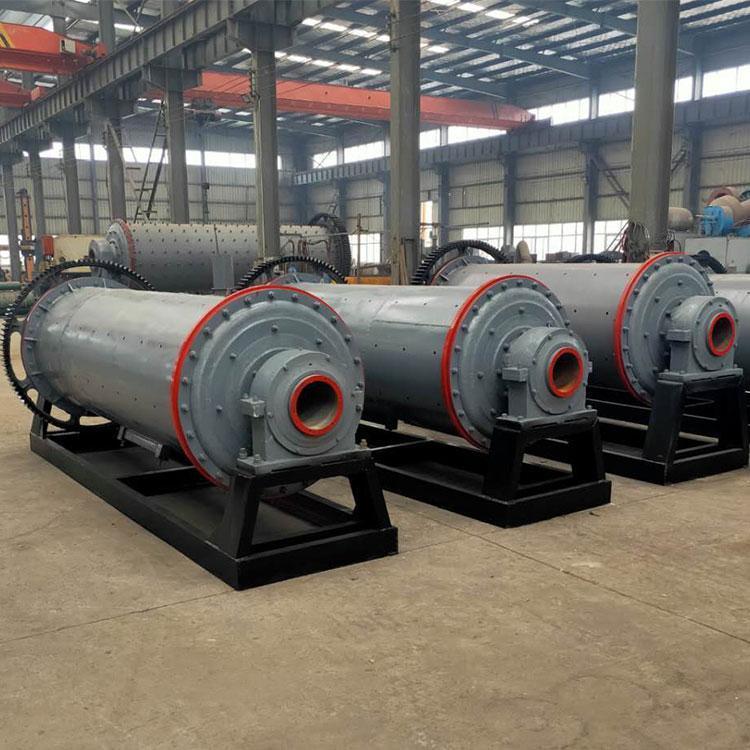

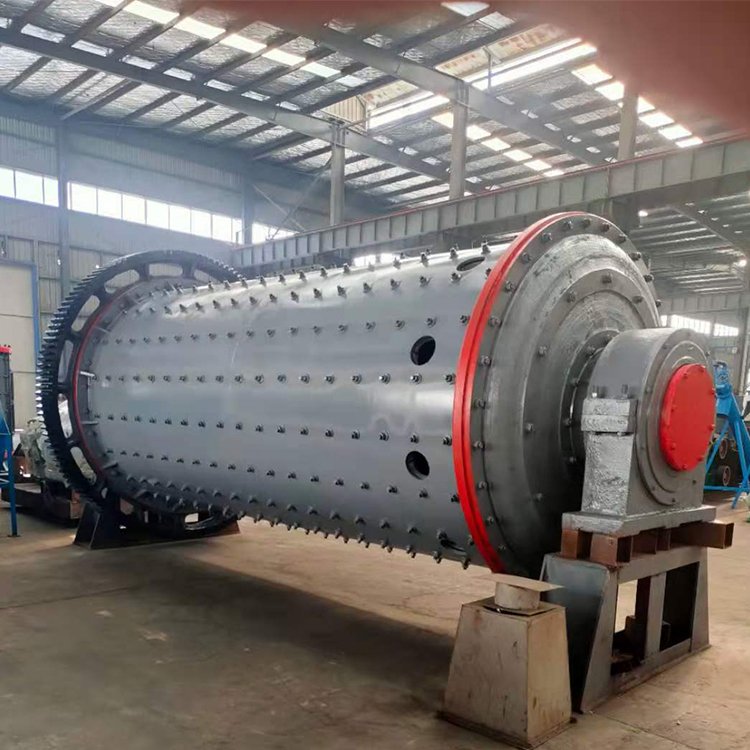

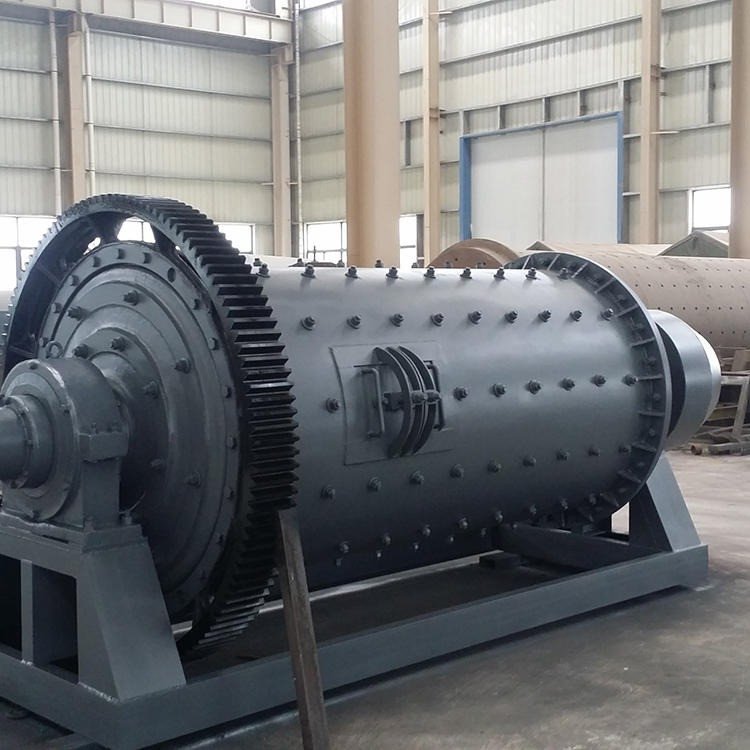

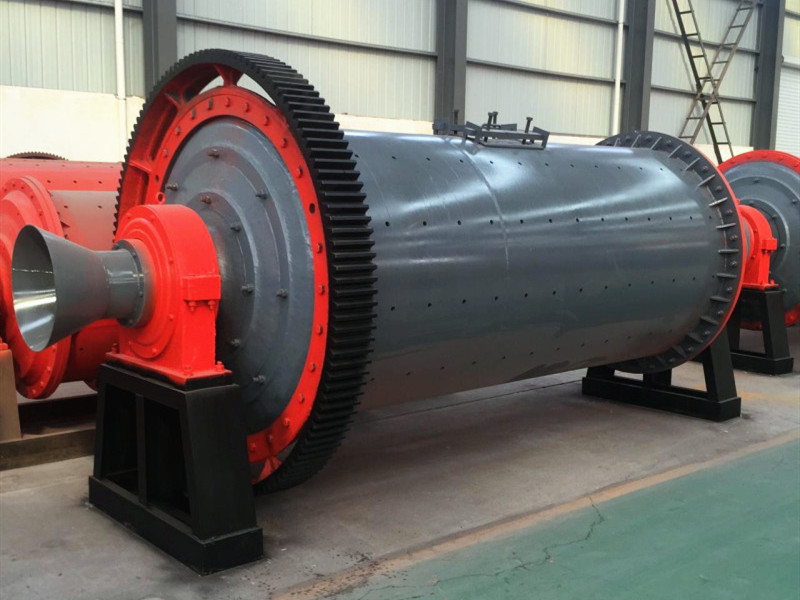

Product display
FSY ball mills are widely used in gold, cooper, magnetite, antimony, calcite, kaolin, mica, clay, bentonite and other mineral processing production lines. It is the key equipment for material crushing after crushing. For grinding various materials into fine powders of 20-75 microns. Depending on the type of discharge, it can be grate, overflow, etc.

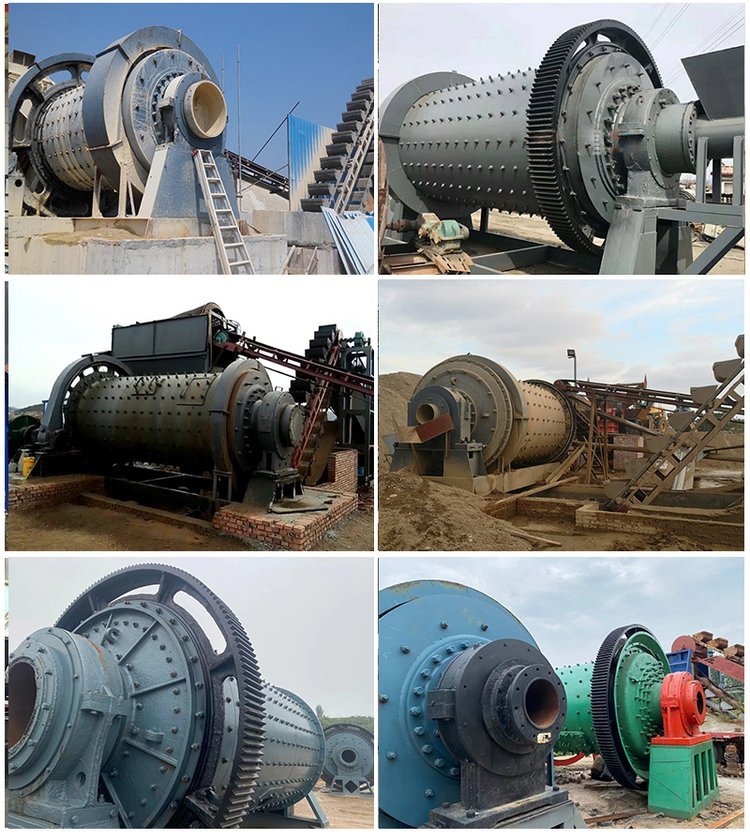

Customer website
