Edible Oil Filter Press Carbon Steel/Diesel Oil Clean Wastewater Filter Press

Supplier: Wuhan HDC Technology Co., Ltd.
Region: Hubei, China
Contact: Ms Jacky Ji
Price: $550.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Dimensions (LWH):	890550765 mm, 890550765 mm	Applicable industries:	factory, farm
Certification:	international standard	Warranty:	1 year
place of origin; place of origin:	Hubei, China	Core component warranty:	1 year
Video shipment inspection:	if	Local service location:	not any
State of health:	new	port:	Qingdao, Wuhan, Shanghai
Supply capacity:	100 coconut oil filters per month	Automatic level:	automatic
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Crude Oil Refinery	Voltage:	220V/380V, 220V/380V
driving force:	electric or diesel engine	Filter type:	liquid
Technical Support:	lifetime	brand:	HD data center
weight:	180kg, 180kg	After-sales service provided:	online support
Marketing Type:	2019 Hot Products	Core components:	Programmable Controllers
thing:	Filter press price	Packaging Details:	Standard export wooden box packaging or new small automatic edible oil filter/edible oil plate and frame filter press according to needs
Processing type:	Various oil machines	Mechanical test report:	if
Showroom location:	not any	Package preview:
Performance:	Efficient and stable, large capacity	strength:	0.75kw, 0.75kw
After warranty service:	Video technical support, online support

Product Description

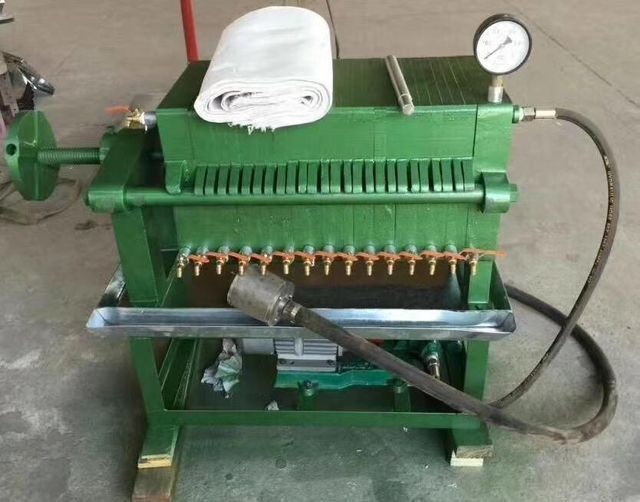

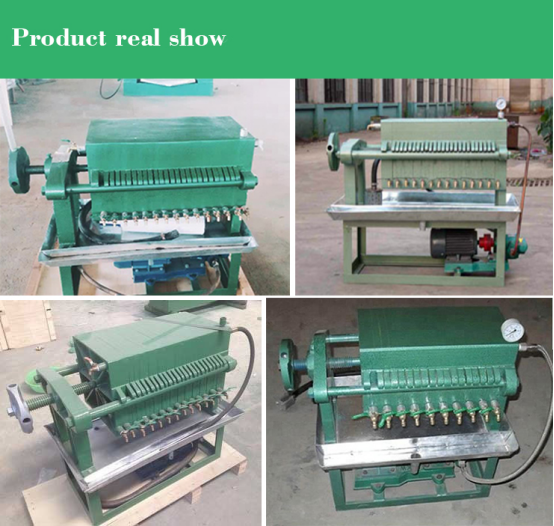

Carbon Steel Edible Oil Filter/Edible Oil Plate and Frame Filter Press

This machine is used to filter the crude oil squeezed out by the screw oil press, and it can work together with 68, 80, 95, 100, 120, 160 oil presses. In the oil processing industry, plate and frame filter presses are used in edible oils for the separation of solids and liquids from crude oil for culinary and edible purposes. Frame type oil filter series products are ideal equipment for edible oil factories and individual oil mills.

product structure
Edible oil plate and frame filter press is composed of filter plate and filter frame or filter plate row (box type).
Under the action of the delivery pump, the suspension hydraulic pressure is sent into the filter chamber, and the solid-liquid separation is carried out through the filter medium (filter cloth, filter paper, filter membrane).

Product Details

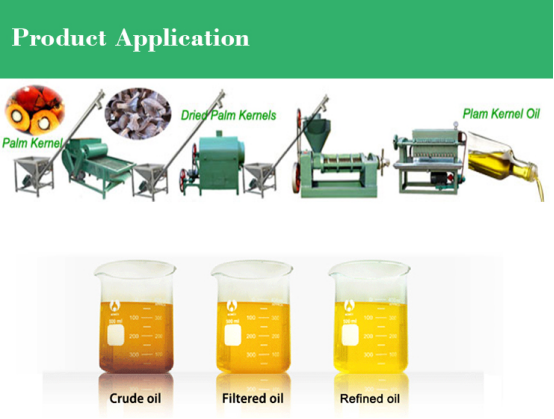

application

Features:
Crude oil is first filtered and cleaned to remove most of the mechanical impurities before entering the refining process or directly obtaining edible oil.
In addition, it is used to remove impurities in the refining process.

Instructions:
When the edible oil plate and frame filter press is working, all pipe clamps should be tightened to prevent oil leakage. Filter cloth should be placed between the filter plates, and then tightened with tension bolts to ensure no leakage. Under normal operation, oil will come out 2 or 3 minutes after the hydraulic press is started. If there is no oil, please stop the machine or check whether the oil pipe is blocked. under the filter plate. Equipped with a valve, it is used when the filter cloth is damaged or the oil is dirty.
