Workshop mobile container crane cost

Supplier: Henan Nybon Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Kevin An
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Field maintenance and repair service;	Min. ground clearance:	80mm;
Span:	2.5m;	Brand Name:	NYBON;
Supply Ability:	100 Set/Sets per Month Workshop mobile container crane cost;	Port:	Qingdao port;
Payment Terms:	L/C,T/T;	Place of Origin:	Henan China (Mainland);
Name:	Workshop mobile container crane cost;	Condition:	New;
Warranty:	2 Years;	Certification:	CE;
Max. running speed:	4km/h;	Max. Lifting Height:	4.7m;
Application:	Terminal station,port,workshop;	Self weight:	8.7T;
Max. lifting speed:	0.04m/s;	Drive wheel dia.:	450mm;
Feature:	Portal Crane;	Max. lifting height:	4700mm;
Rated load:	40Ton;	Applicable Industries:	Manufacturing Plant,Food Shop;
Packaging Detail:	Workshop mobile container crane cost Standard export package main frame be packed by bubble film, the parts be packed by wooden box;	Rated Loading Capacity:	40T;
Lifting hydraulic cylinder dia.:	203mm;	Model of generator set:	KM385QB KM485QB;

Product Description

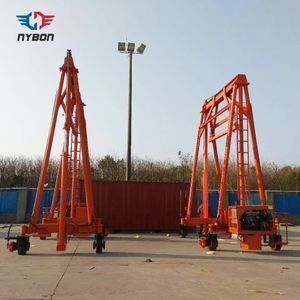

Workshop mobile container crane cost

Mobile container crane is a container-specific crane which is specially produced for small and medium-sized
container yards and enterprise container shipments with low operating cost. The main functions are: Loading
and unloading the container from the truck on the work site, the operator can continuously load the container.
At the same time, using containers as transit will greatly shorten the waiting time of container trucks for
loading, can improve the efficiency of container trucks by 12 to 15 times.

The container crane is powered by a 490BPG diesel engine and features low operating noise and low vehicle
vibration. The main body consists of steel frame, steel wire rope, hydraulic motor of hydraulic transmission
system, gear pump, steering cylinder, lifting cylinder, double-acting balance valve and walking solid tire. The
lifting mechanism adopts four cylinders with the diameter of 180 mm, which have a large lifting capacity, a
small system pressure, a stable and safe lifting and lowering, and high loading and unloading efficiency. It
adopts two-wheel drive, four-wheel steering, and a large rotation angle of up to 110 degrees. It can realize
steering and translation at any angle, and the turning radius is small. The control system consists of a
complete set of valve body and operating rod, which is simple, convenient and flexible to operate.

The container crane is required to be used on a flat, hardened, pit-free site. It is suitable for the loading
and unloading of containers in logistics companies, warehouses, terminals, container yards, freight yards, etc.
It is a high-quality, low-cost, convenient and practical container lifting equipment.

Item		Technical parameter
Rated load		40T
Max. lifting height		4700mm
Max. lifting speed		0.04m/s
Self weight		8.7T
Model of generator set		KM385QB KM485QB
Generator power/Rated rotate speed		26/3300kw/r/min 35/3300kw/r/min
Max. torque/Rotate speed		85/2110~2310[Nm/r min] 115/2110~2310[Nm/r min]
Max. running speed		4km/h
Lifting hydraulic cylinder dia.		203mm
Lift system pressure		10Mpa
Steering hydraulic cylinder dia.		75mm
steering system pressure		15Mpa
Torque of hydraulic motor		949Nm
Hydraulic motor speed range		6~400r/min
Drive wheel dia.		450mm
Min. ground clearance		80mm
Outline dimension	Length	4900mm
	Width	2500mm
	Height	6600mm
