Goods yard portable Mobile Container Gantry Crane Cost

Supplier: Henan Nybon Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Kevin An
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	100 Set/Sets per Month Goods yard portable Mobile Container Gantry Crane Cost;	Payment Terms:	L/C,T/T;
Port:	Qingdao port;	Min. ground clearance:	80mm;
Lifting hydraulic cylinder dia.:	180mm;	Certification:	CE;
Max. running speed:	4km/h;	Warranty:	2 Years;
Place of Origin:	Henan China (Mainland);	Applicable Industries:	Manufacturing Plant,Food Shop;
Packaging Detail:	Goods yard portable Mobile Container Gantry Crane Cost Standard export package main frame be packed by bubble film, the parts be packed by wooden box;	Rated load:	40Ton;
Span:	5.8m;	Name:	Goods yard portable Mobile Container Gantry Crane Cost;
Drive wheel dia.:	450mm;	Max. lifting speed:	0.04m/s;
Rated Loading Capacity:	40T;	Max. lifting height:	2360mm;
Max. Lifting Height:	2.36m;	After-sales Service Provided:	Field maintenance and repair service;
Brand Name:	NYBON;	Model of generator set:	KM385QB KM485QB;
Condition:	New;	Feature:	Portal Crane;
Application:	Terminal station,port,workshop;	Self weight:	9.5T;

Product Description

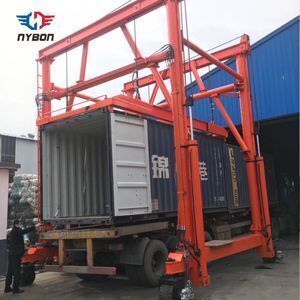

Goods yard portable Mobile Container Gantry Crane Cost

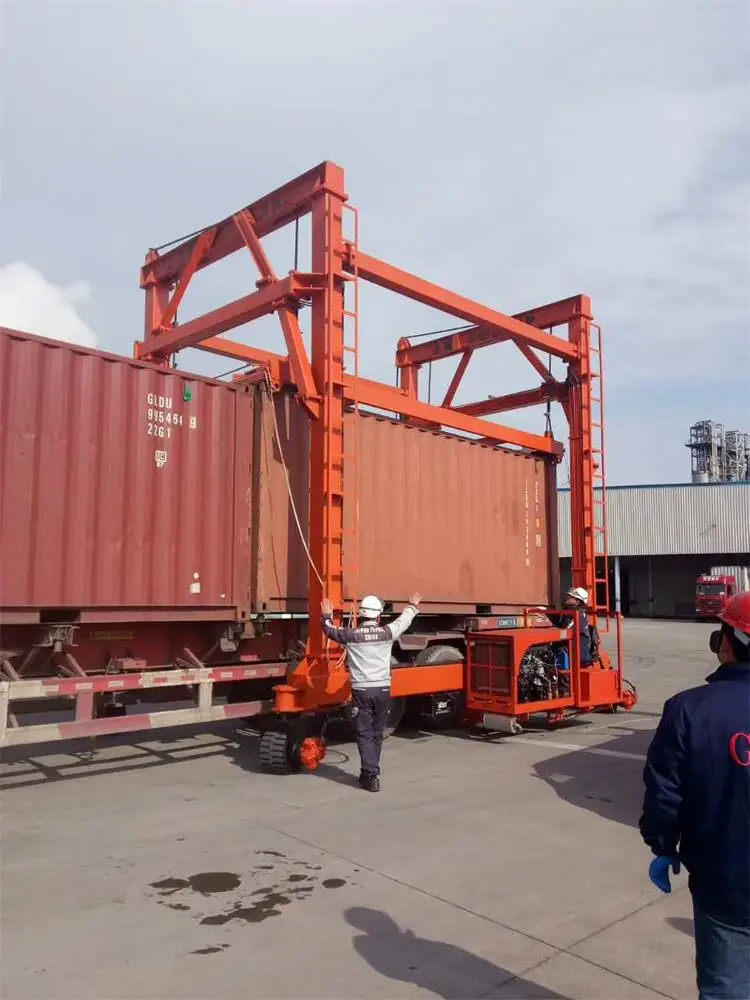

Mobile container crane is a container-specific crane which is specially produced for small and medium-sized
container yards and enterprise container shipments with low operating cost. The main functions are: Loading
and unloading the container from the truck on the work site, the operator can continuously load the container.
At the same time, using containers as transit will greatly shorten the waiting time of container trucks for
loading, can improve the efficiency of container trucks by 12 to 15 times.

The container crane is powered by a 490BPG diesel engine and features low operating noise and low vehicle
vibration. The main body consists of steel frame, steel wire rope, hydraulic motor of hydraulic transmission
system, gear pump, steering cylinder, lifting cylinder, double-acting balance valve and walking solid tire. The
lifting mechanism adopts four cylinders with the diameter of 180 mm, which have a large lifting capacity, a
small system pressure, a stable and safe lifting and lowering, and high loading and unloading efficiency. It
adopts two-wheel drive, four-wheel steering, and a large rotation angle of up to 110 degrees. It can realize
steering and translation at any angle, and the turning radius is small. The control system consists of a
complete set of valve body and operating rod, which is simple, convenient and flexible to operate.

The container crane is required to be used on a flat, hardened, pit-free site. It is suitable for the loading
and unloading of containers in logistics companies, warehouses, terminals, container yards, freight yards, etc.
It is a high-quality, low-cost, convenient and practical container lifting equipment.

Item		Technical parameter
Rated load		40T
Max. lifting height		2360mm
Max. lifting speed		0.04m/s
Self weight		9.5T
Model of generator set		KM385QB KM485QB
Generator power/Rated rotate speed		26/3300kw/r/min 35/3300kw/r/min
Max. torque/Rotate speed		85/2110~2310[Nm/r min] 115/2110~2310[Nm/r min]
Max. running speed		4km/h
Lifting hydraulic cylinder dia.		180mm
Lift system pressure		16Mpa
Steering hydraulic cylinder dia.		75mm
steering system pressure		15Mpa
Torque of hydraulic motor		949Nm
Hydraulic motor speed range		6~400r/min
Drive wheel dia.		450mm
Min. ground clearance		80mm
Outline dimension	Length	6000mm
	Width	5800mm
	Height	7500mm
