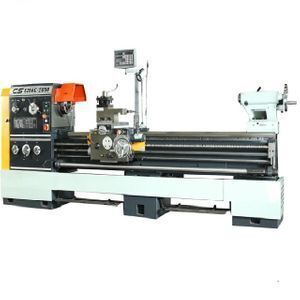

CS6266C 105mm spindle bore heavy duty lathe for screw cutting

Product details
Type:Horizontal;Weight:4400kgs;
CNC or Not:Normal;Single package size:280X115X190 cm;
Warranty:1 Year;lathe machine:metal cutting;
Year:New;high speed:low cost;
logo printing:available;Model Number:CS6266Cx1000;
Power(W):7.5KW;Place of Origin:Anhui China (Mainland);
Automatic Grade:Manual;After-sales Service Provided:Engineers available to service machinery overseas;
After-sales Service Provided:Online support,Video technical support;Certification:CE, ISO;
Package Type:CS6266C is packed with standard export package.;Key Selling Points:High Productivity;
Condition:New;spindle bore:105mm;
Brand Name:WMT;Voltage:380V;
Selling Units:Single item;Dimension(L*W*H):3820x1300x2100;
Max. Swing Diameter:660mm;Range of Spindle Speed(r.p.m):1600rpm;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Energy & Mining;Single gross weight:3,100 KG;
Width of bed:390mm;
Technology Data

Specification for lathe machine CS6266C

Specification
CS6250C
CS6266C
CQ6280C
Max. swing over bed
Φ500mm
Φ660mm
Φ800mm
Max. swing in gap
Φ710mm
Φ870mm
Φ1000mm
Max. swing over slide
Φ300mm
Φ420mm
Φ560mm
Max. workpiece length
1000/1500mm / 2000/3000mm
2000/3000mm
Spindle bore
Φ105mm
Type of spindle
ISO 702/II NO.8 com-lock type
Spindle speed
12 steps:36-1600rpm
12 steps:30-1400rpm
Spindle motor
7.5kw
Diameter of quill
Φ90mm
Max. travel of quill
150mm
Taper of quill
MT5
Tool O.D. size
25×25mm
Max. X travel
145mm
Max. Z travel
320mm
310mm
320mm
X feed range
65 kinds 0.063-2.52mm/r
Z feed range
65 kinds 0.027-1.07mm/r
Metric threads
22 kinds 1-14mm
Inch threads
25 kinds 28-2t.p.i
Module threads
18 kinds 0.5-7πmm
Diametric pitch
24 kinds 56-4t.p.i.π
Cooling pump
60w
Length
2632/3132mm/3632/4632mm
3365/4365mm
Width
975mm
1340mm
Height
1270mm
1450mm
1490mm
N.W
2100/2300kgs/2500/2900kgs
3000/3200kgs
G.W
2200/2400kgs/2600/3000kgs

Standard accessories:

1) 3-jaw chuck  2) 4-jaw chuck
3) face plate     4) steady rest
5) follow rest     6) face plate
7) work lamp     8) coolant system
9) splash guard  10) foot brake
11) dead centers 12) tool box tools


Optional accessories:

1) 2- axis Sino DRO
2) 3-axis Sino DRO
3) taper attachment
4) Quick change toolpost
5) live center


Machine Pics

1) Optional accessories:

quick change toolpost

2) Optional accessories:

Digital read out

3) Optional accessories:

Taper turning attachment

Packing & Delivery
Related Products

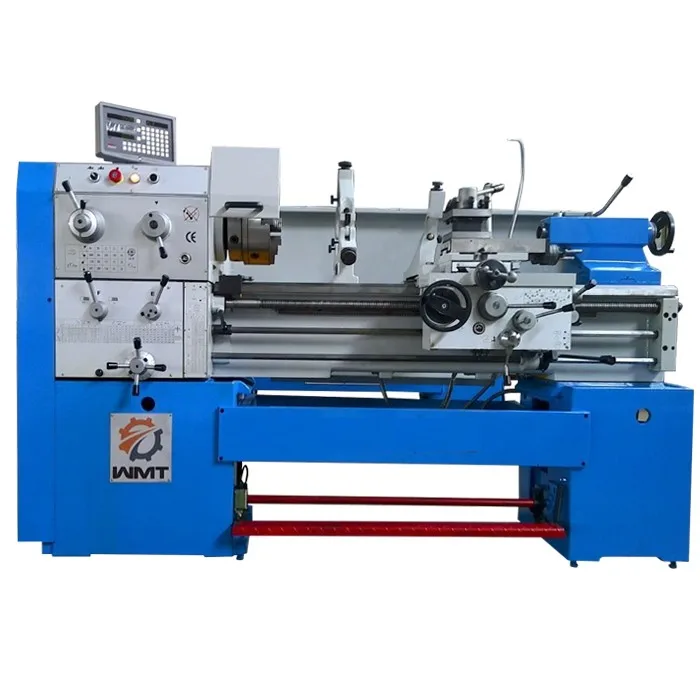

Lathe CD6260C

91.8% Response Rate

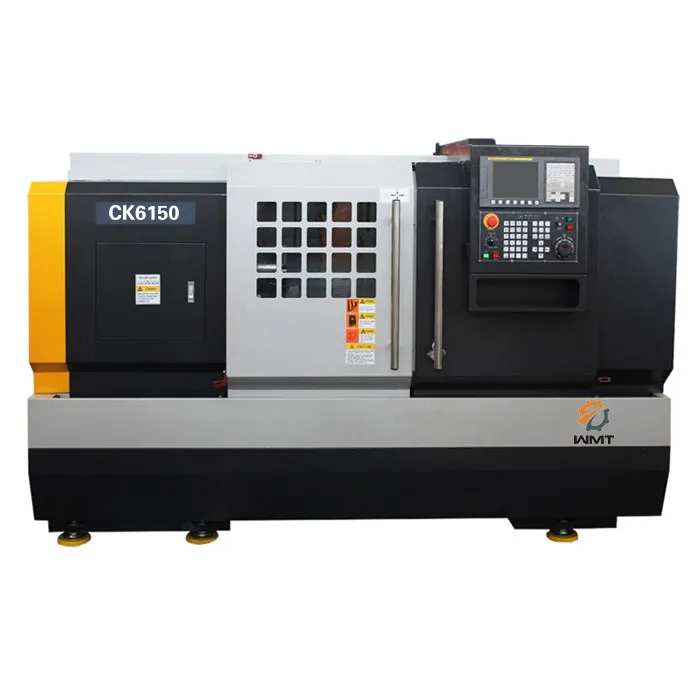

CNC lathe CK6150

91.8% Response Rate

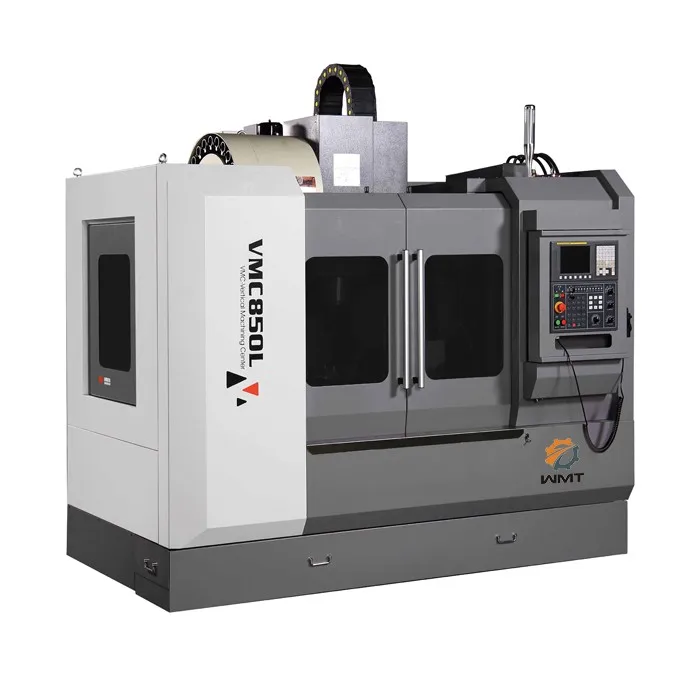

CNC milling machine VMC850L
