410mm Gap Bed Turning Lathe machine CM6241/41V for metal wor

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $4750.00 /set
Min. Order: 1 set

Click here to contact

Product details

lathe machine:	metal cutting tool;	Delivery Detail:	0 days after payment;
Power(W):	3.3kw;	Voltage:	220V 380V;
Single package size:	256X90X170 cm;	Color:	Customer appoint;
Spindle bore:	52mm;	Certification:	CE,ISO;
Automatic Grade:	manual;	Type:	Horizontal;
Year:	new;	Width of bed:	250mm;
Brand Name:	WMT;	logo printing:	available;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training;	Place of Origin:	Anhui China (Mainland);
Package Type:	The machine is well packed into wooden case and transported to customers' port.;	Weight:	1750KGS;
Selling Units:	Single item;	Single gross weight:	1,800 KG;
Range of Spindle Speed(r.p.m):	45-1800r/min;	After-sales Service Provided:	Engineers available to service machinery overseas;
high speed:	low cost;	Max. Swing Diameter:	410mm;
Model Number:	CM6241;	Dimension(LWH):	2060 2560X900X1640mm;
CNC or Not:	Normal;	Condition:	New;

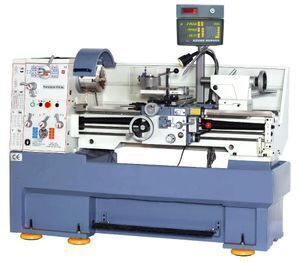

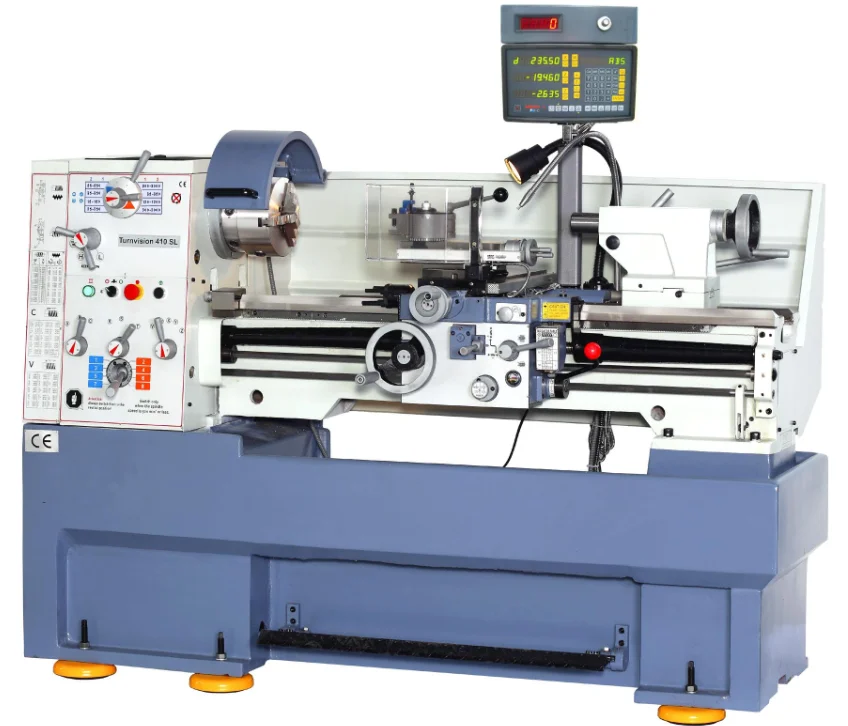

Universal High Precision Metal Horizontal Gap Bed Turning Lathe CM6241

Features:

Super voice frequency heated bedways

Hardened and grounded gears in the headstock

With 2 precision D degree taper roller bearings on the spindle

Integrated deluxe cast iron floor stand

Tolerance test certificate, test flow chart included

Specification	CM6241×1000 /1500mm
Swing over bed	410mm
Swing over cross slide	255mm
Swing in gap	580mm
Length of gap	19mm
Distance between centers	1000mm /1500mm
Center height	205mm
Width of bed	250mm
Spindle nose	D1-6
Spindle bore	52mm
Taper of spindle bore	MT6
Range of spindle speed	16 changes 45-1800r/min
Travel of compound rest	102mm
Max.travel of cross slide	210mm
Leadscrew pitch	4T.P.I.
Max.Section of tool	20×20mm
Longitudinal feeds range	0.05-1.7mm/rev(0.002"-0.067"/rev)
Cross feeds range	0.025-0.85mm(0.001"-0.0335"/rev)
Cross feeds range	0.025-0.85mm(0.001"-0.0336"/rev)
Inch threads range	45kinds 2-72T.P.I
Diametrical pitches range	21kinds 8-44D.P.
Module pitches range	18kinds 0.3-3.5M.P.
Dia.of tailstock sleeve	50mm
Travel of tailstock sleeve	120mm
Taper of tailstock sleeve	MT4
Power of main motor	2.2/3.3kw(optional 3.0/4.5kw)
Power of coolant pump	90w
Overall dimension	1940/2440×850×1300mm
Packing size	2060/2560×900×1640mm
N.W/G.W	1500/1750kgs 1550/1800kgs

Standard accessories:

3 jaw chuck, 4 jaw chuck, coolant system, working light, foot brake,steady rest, follow rest, chasing dial indicator,change gears set Tool Box & Tools

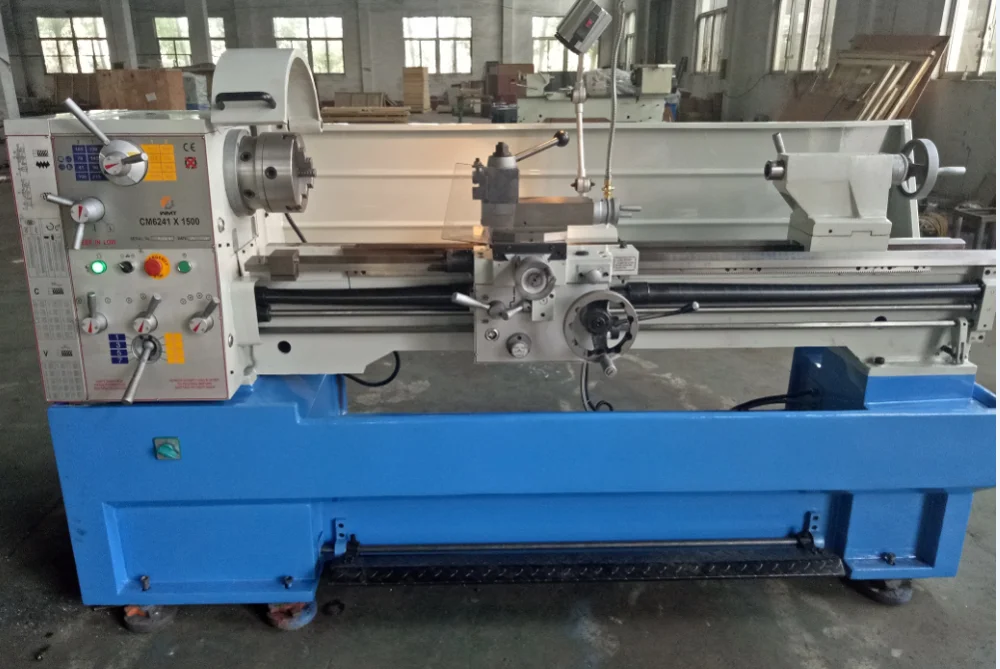

Machine details:

Our Services

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
