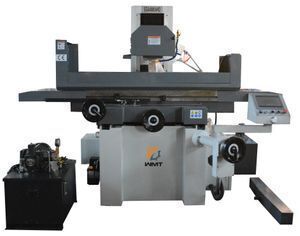

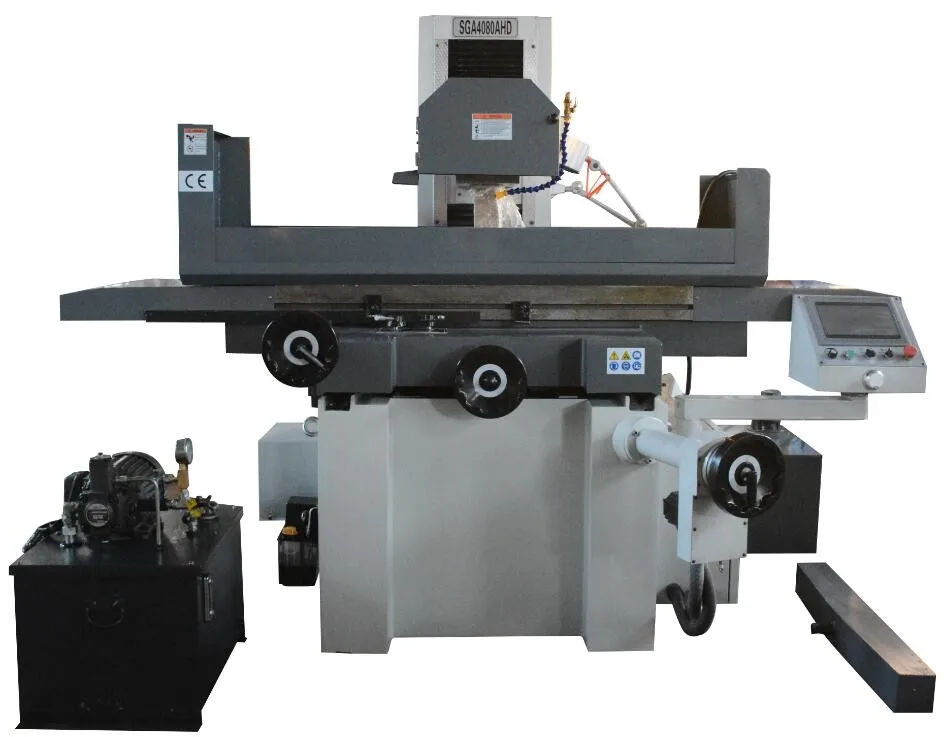

SGA-4080AH/AHR/AHD High precision surface grinder machine for metal work with CE

Product details
After-sales Service Provided:Engineers available to service machinery overseas;Brand Name:WMT;
Warranty:1 Year;After-sales Service Provided:Online support,Video technical support,Free spare parts;
Dimension(L*W*H):2715x265x2250mm;Condition:New;
Selling Units:Single item;Power(W):4/5.5kw;
color:customer appoint;Certification:CE ISO9001;
Key Selling Points:High-accuracy;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Home Use,Construction works ;
Weight:3600kg;Single package size:270X220X220 cm;
Place of Origin:Anhui China (Mainland);Weight (KG):3600;
Package Type:Surface grinding machine packed by plywood wooden box;Single gross weight:1,640 KG;
Type:Universal;CNC or Not:Normal;
Voltage:220V 380V;Max. Grinding Length:910mm;
Product Description

 surface grinding machine price SGA-2550AH/AHR/AHD

Specification
SGA-4080AH/AHR/AHD
Table size(WxL)
406x813mm
Max.longitudinal travel
910mm
Cross travel
450mm
Max.distance from spindle center to table
580mm
Magnetic chuck size
400x800mm
Speed of table longitudinal movement
7-23m/min
Table transerve movement/ Auto feed
0.1-8mm/min
Table transerve movement/ Repid speed
990mm/min
Table transerve movement/ Feed of handlwheel
0.02mm/div.
Wheelhand vertical movement/ Auto feed
-(H/R mode)0.005/0.01/0.02/0.03/0.04/0.05(only for D model)mm/stroke
Wheelhand vertical movement/Repid speed
-(H mode)610(only for R model)480(only for D model)mm/min
Wheelhand vertical movement/ Feed of handlwheel
0.005mm/div.
Grinding wheel Speed 50HZ
1450rmp
Grinding wheel Speed 60HZ
1750rpm
Grinding wheel (ODxWxID) Size
350x40x127mm
Spindle motor
4/5.5kw
Hydranlic Motor
2.2kw
Cooling pump motor
0.09kw
Elevating motor
-(Hmode)0.25(Rmode)0.5(D mode servo motor)kw
Cross feed Motor
0.04kw
Max.loading capacity of table(include magnetic chuck)
500kg
Total rated Power
7.5/9kw
Height of machine
1890mm
Floor space
3600x2400mm
Gross weight
3600kg
Packing dimensions(LxWxH)
2715x2210x2250mm
Products Show
Our Company
Customer Photo
Packing & Delivery


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 25-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample, but need extra cost.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Related Products

High precision surface grinding machine MY1022 with CE Standard

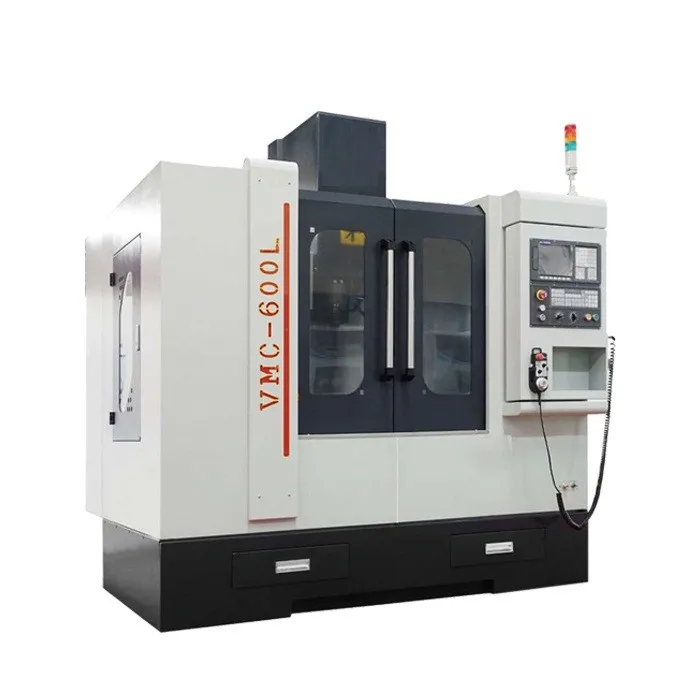

VM600L vertical machine center for sale

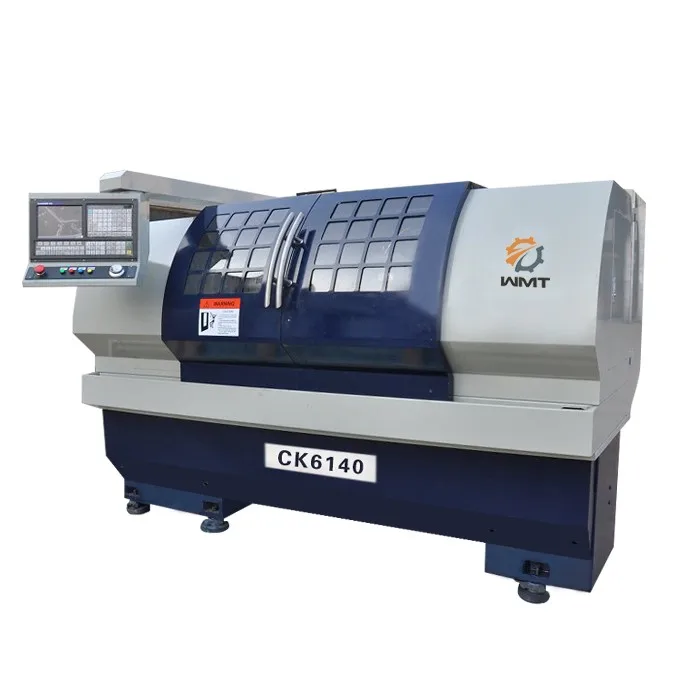

CK6140x1000 CNC lathe machine price with CE standard
