Usage: | industry plastic; | After-sales Service Provided: | Online support,Video technical support; |
absorb material: | flakiness, granules; | Applicable Industries: | Manufacturing Plant; |
Certification: | CE; | Application: | plastic industry; |
Brand Name: | XIECHENG; | Warranty: | 1 year; |
Loading: | automatic; | Voltage: | 380V/50Hz/3Phase as usual; |
After-sales Service Provided: | Overseas third-party support available; | Condition: | New; |
Packaging Detail: | Standard wooden case as usual; | Port: | Jiangmen/Shenzhen/Guangzhou; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Lifetime: | more than 5 years; |
Security setting: | overload protection; | Dimension(L*W*H): | 370*300*560mm; |
Motor: | induction; | Weight: | 20kg; |
Power(W): | 1100; | Supply Ability: | 500 Set/Sets per Month; |
Controller: | microcomputer; | Place of Origin: | Guangdong China (Mainland); |

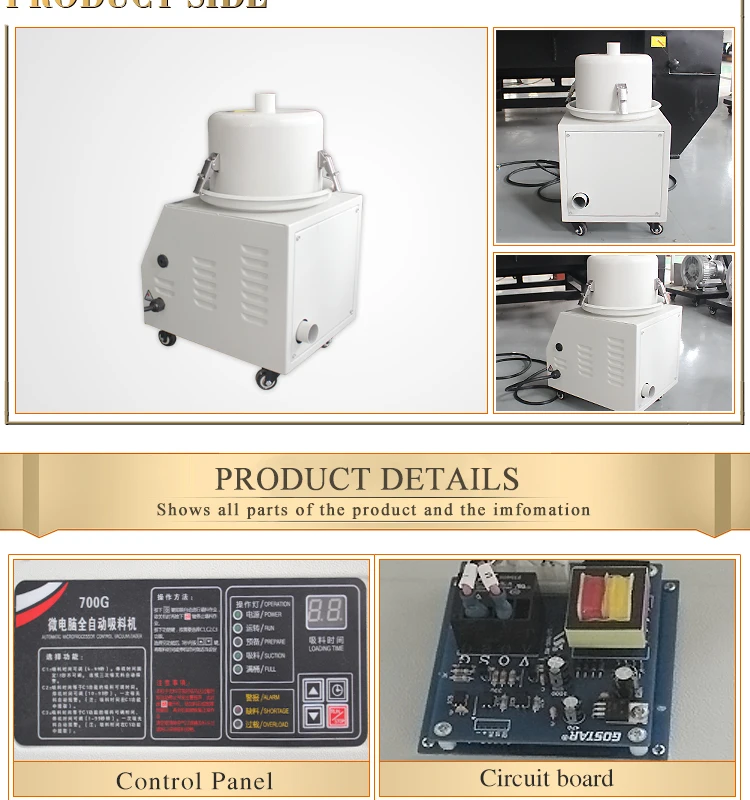

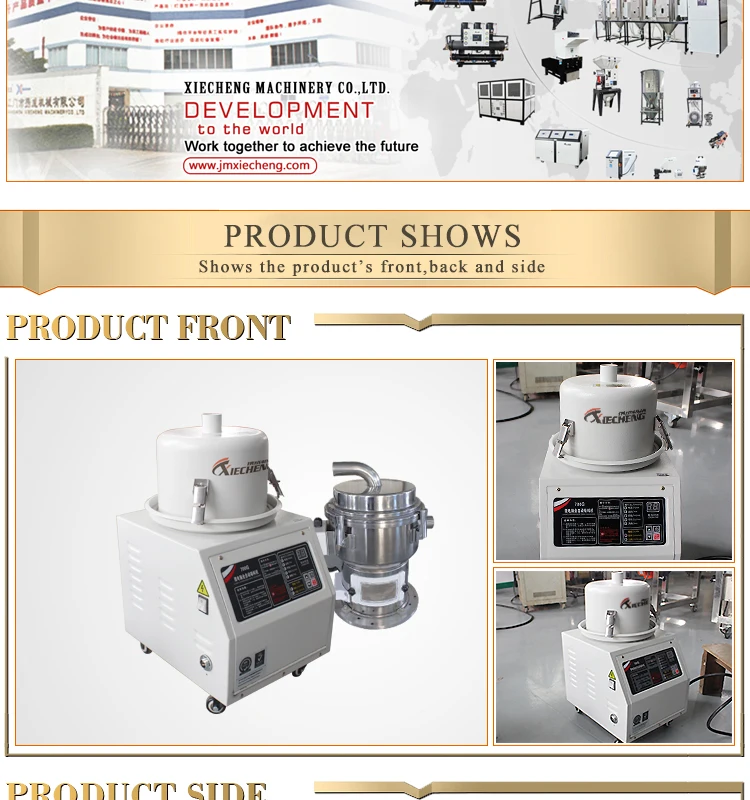

Microcomputer Controlled Plastic Granules Auto Loader industrial vacuum loader
Xiecheng brand auto loader machine series

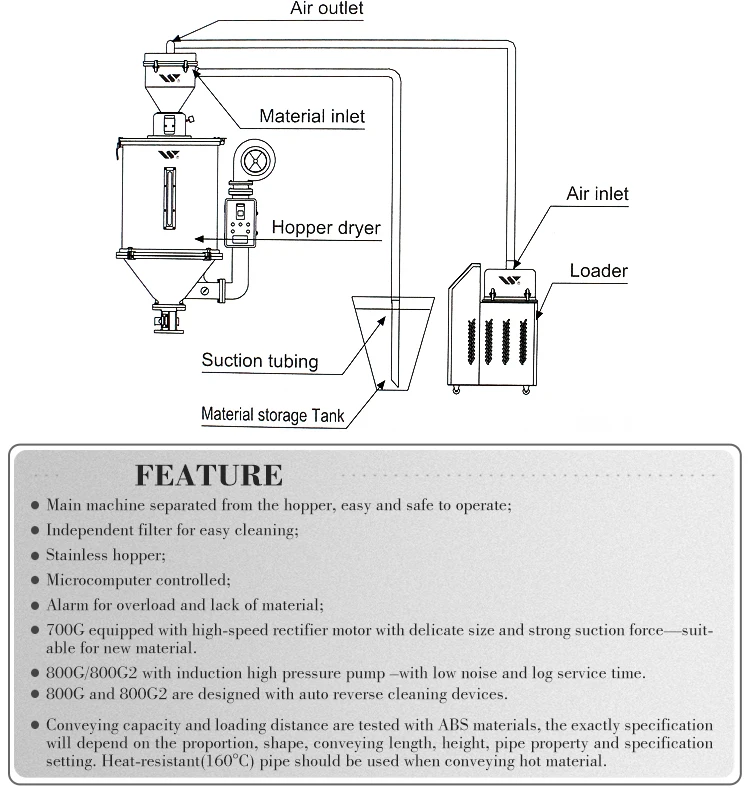

1. Main machine separated from the hopper, easy and safe to operate;
2. Independent filter for easy cleaning;
3. Stainless hopper;
4. Microcomputer controlled;
5. Alarm for overload and lack of material;
6. 700G equipped with high-speed rectifier motor with delicate size and strong suction force—suitable for new material.
7. 800G/800G2 with induction high pressure pump –with low noise and log service time.
8. 800G and 800G2 are designed with auto reverse cleaning devices.
Conveying capacity and loading distance are tested with ABS materials, the exactly specification will depend on the proportion, shape, conveying length, height, pipe property and specification setting. Heat-resistant(160°C) pipe should be used when conveying hot material.

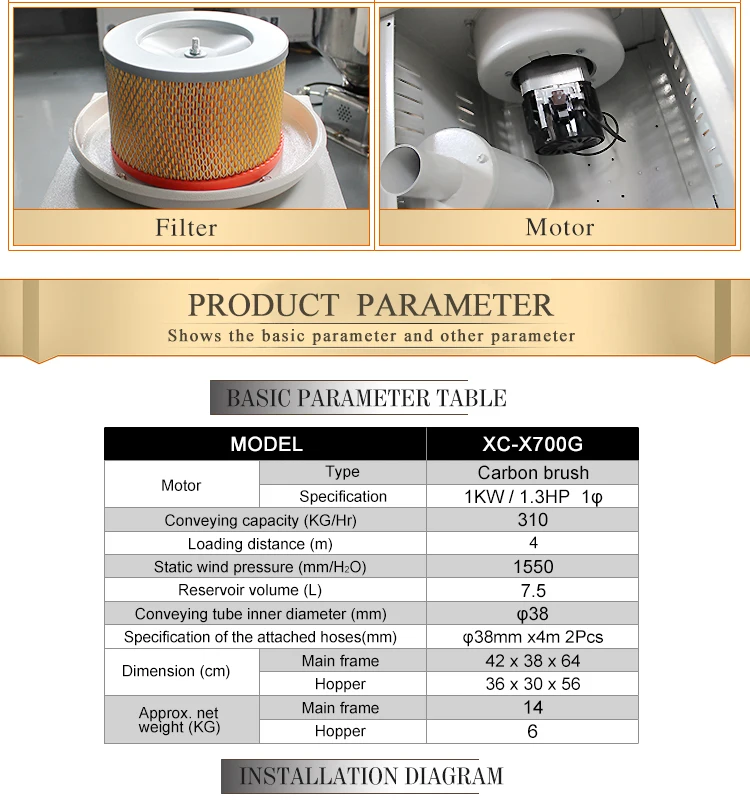

Model | XC-X700G | XC-X800G | XC-XF800G2 | |
Motor | Type | Carbon brush | Induction | Induction |
Specification | 1kw/1.3hp 1φ | 1.1kw/1.5hp 3φ | 1.5kw/2hp 3φ | |
Conveying capacity(kg/hr) | 310 | 450 | 590 | |
Loading distance(m) | 4 | 4 | 5 | |
Static wind pressure(mm/H2O) | 1550 | 1800 | 2400 | |
Reservoir volume(L) | 7.5 | 7.5 | 7.5 | |
Conveying tube inner dim | φ38 | φ38 | φ38 | |
Specification of the attached hoses | φ38mm×4m 2pcs | φ38mm×4m 2pcs | φ38mm×5m 2pcs | |
Dimensions (mm) | Main fram | 370×300×560 | 420×380×640 | 500×400×720 |
Hopper | 280×340×430 | 450×320×450 | 450×320×450 | |
Net weight(kg) | Main fram | 14 | 47 | 66 |
Hopper | 6 | 7 | 27 |
.
