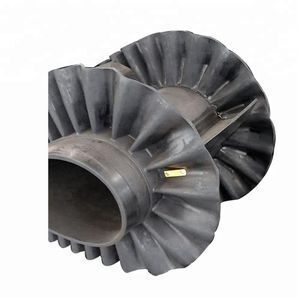

mining rubber sidewall belt coal feeder

Supplier: Ningbo Sinoconve Belt Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jose Zhu
Price: $20.00 / >=50 meters
Min. Order: 50 meters

Click here to contact

Product details

Ply thickness:	1.45mm/ply;	Single gross weight:	50 KG;
Belt width:	300mm---1500mm;	Condition:	New;
Brand Name:	sinoconve;	Sidewall height:	40mm--400mm;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;	Place of Origin:	Zhejiang China (Mainland);
Model Number:	EP400/3,EP500/4;	Application:	mining;
certificate:	ISO9001;	Cover thickness lower:	0-4.5;
Description:	weighing feeder belts;	Warranty:	1 Year;
Single package size:	50X50X50 cm;	Package Type:	packed in water-proof poly bag;
Power Type:	Electric;	Strength(N/mm):	600/900/1200/1500;
Package Preview:	https://sc01.alicdn.com/kf/HTB1W0Hmef5G3KVjSZPxq6zI3XXa7.jpg_640x640.jpg;	After-sales Service Provided:	Online support;
Cover thickness upper:	1.5-12;	Length:	8000mm, 6000mm,5000mm;
Selling Units:	Single item;

Product Description

Product Details

-- Rubber weigh feeder belt is mainly installed on belt feeder for coal,cement and other powder material.

-- It is made by two parts: sidewall and base belt.

Sidewall

-- Sidewall is hot vulcanized on the base belt

-- High quality rubber to guarantee sidewall withstand highly stress and repeated flexing

Specification

Sidewall height(mm)	40,60,80,100,120160,200,220,240
Belt width(mm)	500,600.650,700,800 1000,1200,1400,1500
Tensile strength	EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6
Top+Bottom thickness(mm)	3+1.5, 4+2, 4+1.5, 4+3, 5+1.5
Belt thickness(mm)	6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
Belt length(mm)	5000,6000,7000,8000,9000,10000

Application

Sidewall conveyor belt

EP400/3,EP500/4,EP630/3

Sidewall height: from 40mm to 400mm

Cleat height: from 35m to 350mm

MOQ:5m

High quality wrapped V belt

O,Z,M,A,B,C,D,E

SPZ,SPA,SPB,SPC,

3V,5V,8V,3L,4L,5L

MOQ: 50pcs

General conveyor belt

EP400/3,EP500/4,EP630/3
Width: from 300mm to 2600mm
Thickness: from 3mm to 50mm
MOQ:10m

Conveyor belt fastener

140E,190E, 1.5" 2",2.5"

Conveyor belt vulcanizing machine

Suitable for belt width upto 2600mm

Chevron V conveyor belt

Closed V, Open V type

C5,C10,C15,C20,C25

Quality control

Step 1: Raw material inspection

Rubber compound test

Moving die rheometer analyzes the characteristics of Rubber Compound

EP fabric test

Tensile strength test and elongation test when broken.

Step 2: Advance equipment to guarantee quality from the details

Calender process

4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.

Forming process

The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.

Step 3:Finished belts inspection

We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.

Length and surface inspection

Thickness inspection

WIdth inspection

Step 4: Technical data test

We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.

Abrasion test

Adhesion strength test

Tensile strength test

Q1. Are you a manufactuer?

Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.

Q2. What about the lead time?

1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel

Q3. How to pay?

1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service

Q4. How to guarantee your quality?

We are one of the top suppliers of International famous Belt company over years. Excellent quality is well accepted.
Please contact us for more details.
