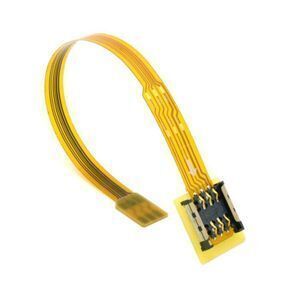

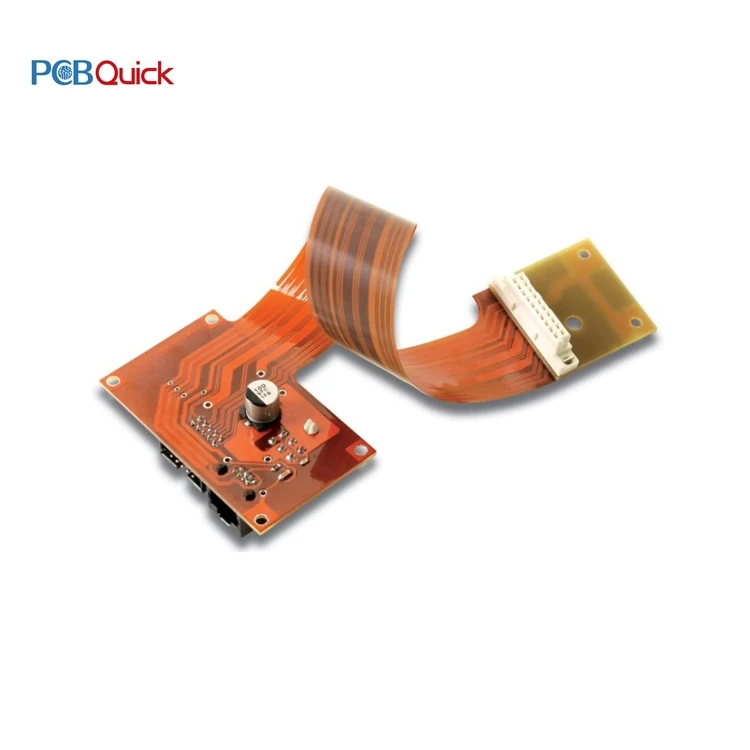

Flat flex pcb immersion gold fpc board flexible copper pcb

Supplier: Shenzhen King Fung Technology Limited
Region: Guangdong, China
Contact: Ms mary zhao
Price: $1.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Min. Hole Size:	0.2mm;	Base Material:	PI;
Base, Cover film, Stiffeners thickness:	0.5mil;	Product name:	Flex PCB;
PCB standard:	IPC-A-610 E;	Item:	Flexible Pcb Prototype;
Test:	100% E-Testing;	Min. Line Width:	0.2mm;
Surface Finishing:	ENIG;	Outline Profile:	Laser Cut;
Copper Thickness:	1oz;	Port:	shenzhen/hongkong;
Place of Origin:	Guangdong China (Mainland);	Brand Name:	PCBQuick;
Min. Line Spacing:	0.2mm;	Packaging Detail:	Vacuum sealed packaging,Silica Gel inside.;
Supply Ability:	50000 Piece/Pieces per Month;	Assembly Service:	SMD;
Board Thickness:	0.6mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Service:	ODM;	Profiling Punching:	Laser;
Certificate:	ROHS,ul;	Model Number:	kf-0113;

Flat flex pcb immersion gold fpc board flexible copper pcb

Aabout PCBQuick

PCBQuick is a PCB supplier that offers quick online quote service.

We can provide customized solutions for LED lighting PCB and UPS PCB.

Our Rigid PCB/ FPC/LED PCB/PCBA is exported to all parts of the world.

PCBQuick continuously improves the quality and service.

By the end of 2018, we have already served more than 300 companies worldwide.

Why us ?

1) Professional engineer team --help you to check design and do engineering before production

2) Rich expierences in pcb production industry--provide high quality and competitive price pcb.

3) After-sales service--every problem you have will get our professional advice and solution.

4) Constant follow up-- make us have the fast reaction of your requirement.

5) Inspected by the Inspection Institution--ISO,UL,ROHS cerfiticated

Our Service

We are able to provide you best electronics servicesWe are able to provide you best electronics services.

1) PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,Rogers,CEM-1 )

2) FPC,PCB Copy Service.

3) PCB Assembly Service. (SMT, BGA, DIP)

4) PCBA Final Functional Testing.

5) PCBA Copy Service.

6) Electronic Components Purchasing & BOM List Purchasing Services.

7) PCB SMT Stencil. (Laser cut & Etching)

Process Capability

Flexible PCB Board

Quality Grade	Standard IPC 2	Material	DuPont PI, Domestic Shengyi PI
Number of Layers	1 - 8layers	Board Size	Min 66mm, Max 406610mm
Order Quantity	1pc - 10000+pcs	Board Thickness	0.1mm - 0.8mm
Build Time	2days - 5weeks	Copper Weight (Finished)	0.5oz - 2.0oz
Min Tracing/Spacing	3mil/3mil	Silkscreen Sides	As per the file
Solder Mask Sides	As per the file	Silkscreen Color	White, Black, Yellow
Solder Mask Color	Green, White, Blue, Black, Red, Yellow	Surface Finish	HASL - Hot air solder leveling Lead - free HASL - RoHS ENIG - RoHS Immersion Tin - RoHS OSP - RoHS
Solder-stop coating---Soldermask oil	Green, White, Blue, Black, Red, Yellow
Solder-stop coating---Coverlay	PI and PET film
Min Annular Ring	4mil
Min Drilling Hole Diameter	8mil
Min. hole size---Drilling (PTH)	0.2mil	Other Techniques	Peelable solder mask Gold fingers Stiffener (only for PI/FR4 substrate)
Min. hole size---Punching (NPTH)	0.5mil
Tolerance of dimension	±0.05mm

Welcome to ask us !

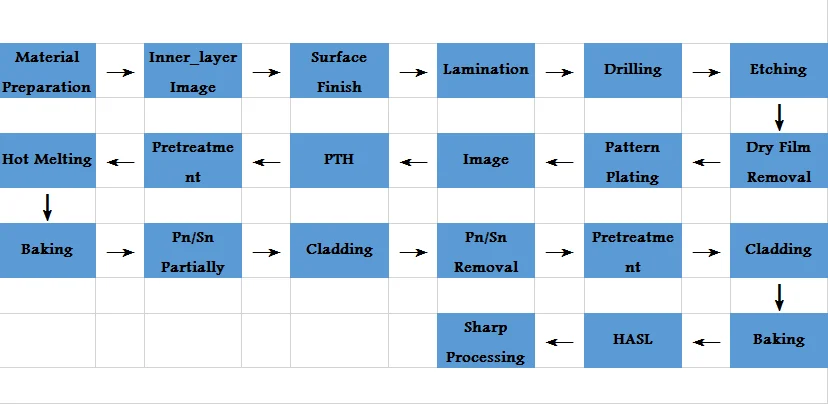

Production Flow

PCB&PCBA Products

Certifications

If you need more clear certificate, please contact us

FAQ

Q1.What is needed for quotation?

PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)

PCBA: PCB information, BOM, (Testing documents...)

Q2. What file formats do you accept for production?

Gerber file: CAM350 RS274X

PCB file: Protel 99SE, P-CAD 2001 PCB

BOM: Excel (PDF,word,txt)

Q3. Are my files safe?

Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.

Q4. MOQ?

There is no MOQ in POE.We are able to handle Small as well as large volume production with flexibility.

Q5.Shipping cost?

The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
