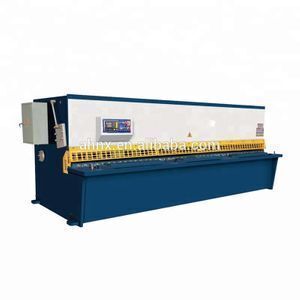

QC12Y 4*2500 Hydraulic Sheet Metal Shearing Machine/Hydro Stainless Plate Shearing Machine/Used Sheet Metal Shearing Machines

Product details
strokes:3-18 times per min.;cutting angle:0.5-4°;
cutting length:2500-6000mm;Dimension(L*W*H):depends on details;
Voltage:380V/60HZ /3P(according to your local voltage );Condition:New;
Warranty:1 Year provided technical service all life time;After-sales Service Provided:Engineers available to service machinery overseas;
back gauge:20-800mm;Place of Origin:Anhui China;
Model Number:QC11/12Y series;ODM:yes;
Packaging Detail:packng with film and wood for Cutting Machine;Delivery Detail:2018-06-14;
main power:4-75kw;Rated Power:7.5kw;
Weight:3-60 t;Port:shanghai;
OEM:yes;Brand Name:Nanxia Cutting Machine;
cutting thickness:4-40mm;Payment Terms:L/C,T/T,Western Union,Paypal for Cutting Machine;
Supply Ability:10 Set/Sets per Week Cutting Machine;voltage:380/220V or according to yours;
Certification:CE ISO;Product name:Cutting Machine;
Product Description

Anhui Nanxai Hydraulic Cutting machine --QC12Y-10x6000


NC Cutting machine is also called NC Shearing machine ,hydraulic NC shearing machine ,guillotine shearing machine ,plate shearing machine ,metal sheet shearing machine,steel sheet cutting machine ,steel sheet shearing machine which is mainly used for cutting and shearing sheet .


QC12Y-10x6000
shear size
10*6000
mm
remark
 Shear Angle
1°30′
degree
The Times of Stroke
7
Min-1
Height of Table
910
mm
The Max of Back gauge
700
mm
Distance between Housings
6205
mm
Overall Dimension
L
6800
mm
W
2550
mm
H
2200
mm
Main Motor

Model
Y200L1-6
Power
18.5
KW
Rotation Speed
970
r/min

Main Features:

※ Totally European design ,streamlined,looking,monoblock, welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

※ As the cutting beam had been designed in inner-incliner structure ,it is easy for plates to fall down and the accuracy of products can also be guaranteed.

※ High accuracy ,high efficiency ,simple,and convenient operation,good performance,favorable price and best service.

※ The machine by the European Union CE certification and ISO quality system certification.


Certifications
Detailed Images

Machine Part


Name: Value group
Brand:Nanxia Cutting Machine
Original: China
adjustable and control switch .and have release pressure function.

Main Features


Name: Motor
Brand: Siemens/Schnider
Original: France
mainly Motor is france Schnider/Siemens system, and it is NC system Cutting Machine

Machine Parts


Name: Backgauge
Brand: Nanxia Cutting Machine
Original: China

Backgauge automatically concede function and Backgauge automatically lift funtions.



Main Features


Name: E21 system
Brand: Estun
Original: China Cutting Machine
ESTUN have high- performance AC servo motor and drive.and it is our standard configuration,40 procedures,25 work steps in each program.
panel type installation,backgauge control and stop link control,power-off protection.


Our Factory


1.Installation Service

Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )


   2.Training Service

 Our technician is available to your factory and offer training of how to   use our machines. As well, you may send your technician to our   company to learn how to operate machines.

Packing & Delivery
delivery
Size
QC12Y-10x6000
Weight
22.44T Cutting Machine



remark


Delivery time is 25 days

30% in advance and the rest before delivery time .

The valid time is one month.

The price is FOB shanghai port
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
22.44 T  Cutting Machine



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
