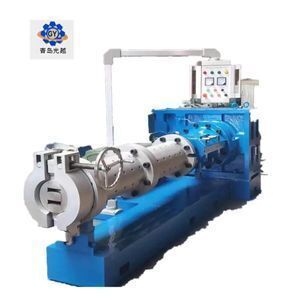

Chinese XJ-85 Hot Feed Rubber Extruder

Supplier: Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr daguang qiu
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Capacity:	70-210kg/h;	Warranty:	2 years;
Certification:	CE ISO SGS;	Weight:	2500kg;
Brand Name:	Guangyue;	Dimension(LWH):	2050x700x1200;
Voltage:	220V, 380V, 440V;	Type:	Rubber Extruder;
Model Number:	XJ-85;	Supply Ability:	40 Set/Sets per Month day;
Place of Origin:	Shandong China;	After-sales Service Provided:	Engineers available to service machinery overseas;
Application:	Extrude rubber products;	Payment Terms:	L/C,D/A,D/P,T/T;
Machine Type:	Hot Feed Rubber Extruder;	Quality:	high quality;
Power(W):	15kw;	Condition:	New;
Port:	QingDao;	Delivery Detail:	within 20 days;
Packaging Detail:	wooden case or other packages according to your requirements;

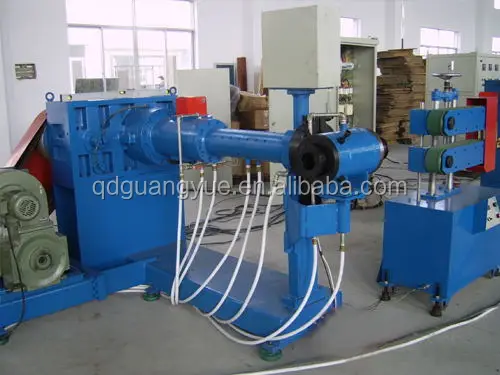

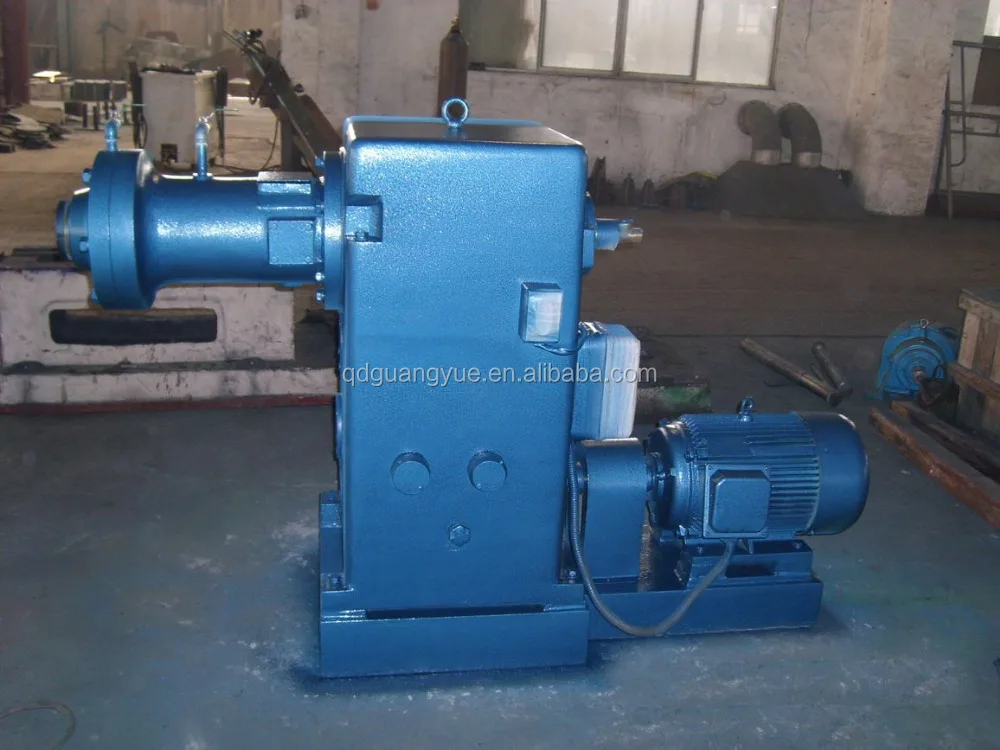

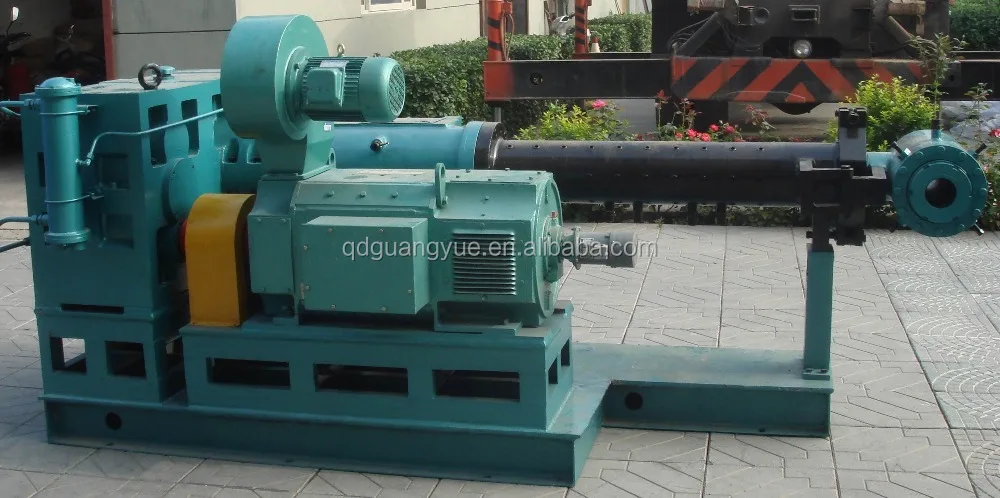

Rubber Extruder

1.General Introduction

Generally Hot Feed Rubber Extruder is mainly applicable to shape extruding types of products. It has kinds of extruder heads for covering rubber of hose, electric wire and cable, also extruding types of tread, various different type rubber plate and board, and other rubber products.

The material of all screw shafts and liners is 38CrMoALA high-quality steel, the surface of them is processed by nitrogen treatment and hardness HRC is 6065. Their resistance to wear and corrosion is very good.

2.Advantages

Excellent quality;
Flexibility of operation;
High performance-cost ratio

3.Technical Parameters for Rubber Extruder

Version Parameters	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200
Screw thread form	Double-head equal-depth convergence type	Double-head equal-distance, unequal- depth type	Double-head convergence type	Double-head unequal- depth type	Double-head convergence type
Screw outer diameter(mm)	65	85	115	150	200
Screw length- diameter ratio(L/D)	4	4.3	4.8	4.43	4.35
Compression ratio		1.3	1.3	1.34
Screw rotational speed(r/min)	20.27.35.47	28.40.56.80	33.46.60	27-81	22.4-67.2
Motor power(kw)	7.5	11/15	22	18.3-55commutator motor	25-75commutator motor
Productive capacity(kg/h)	50-80	70-210	100-420	700-1200	1500-2200
Steam pressure(Mpa)	0.2-0.3	0.3-0.4	0.4-0.6	0.6	0.6-0.8
Cooling water pressure(Mpa)	0.2-0.3	0.2-0.3	0.2-0.3	0.2	0.2-0.3
Compressed air pressure(Mpa)					0.3-0.6
Overall dimension(lengthwidthheight)(mm)	1630* 604* 1050	2050* 700 *1200	1630* 604 *1050	3411 814 1470	4564 1800 1750
Product weight(exclusive of motor head) (kg)	1200	2500	3000	5000	8000

Qingdao guangyue rubber machine manufacturing Co.,ltd is one of the important backbone of enterprises in rubber machinery industry in China. It is one member of Shandong Machinery Union Company. The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high reputation in China rubber machine industry.

The main products are hydraulic press, rubber mixing mill, dispersion kneader, bale cutter, rubber machine, tyre machine, inner tube press, reclaimed rubber machine and rubber powder machine,etc. The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas. All of the products are designed visually by three-dimension cad design, quikly built module, limited element analysis, analogue action and interfering inspection.
