Automatic induction door carg air showers clean room equipment

Supplier: Wuxi Yijing Purification Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Maylynn Huang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	air shower;	Place of Origin:	Jiangsu China;
After-sales Service Provided:	Engineers available to service machinery overseas;	Air shower time (s):	0-99 seconds;
Packaging Detail:	Export Wooden Packing, Standard Configuration;	material:	cold steel, stainless steel;
Supply Ability:	1000 Set/Sets per Year;	Warranty:	12 months;
Condition:	New;	Filter efficiency:	≥99.995% of particles ≥0.3μm;
Applicable Industries:	Building Material Shops,Manufacturing Plant;	Port:	Shanghai;
Payment Terms:	L/C,T/T,Western Union;	Keywords:	air shower;
Door Lock:	Automatic;	Brand Name:	Yijing;
After-sales Service Provided:	Online support;

Air Shower Basics

Air showers are a tool that allows for people and/or objects to enter a clean area without bringing in unwanted contaminants such as dust and bacteria. Air showers act as a sort of buffer or air lock between two areas of varying cleanliness, and preserve the air quality of a dynamic clean environment. Due to their usefulness and simplicity, air showers are a critical component of modern-day cleanroom facilities.

Air showers employ high-speed currents of air to blow microscopic dust and bacteria particles off of clothing and other surfaces. The air used in air showers runs through a filtration system in order to maintain air purity and avoid recirculation of microscopic contaminants.

YiJing Air Showers

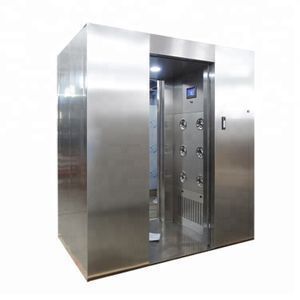

The YiJing YJ-A Series Automatic Door Air Showers are available in three different materials: 100% Stainless Steel, Stainless Steel Interior, and Steel Plate. The YJ-A series of air showers employ YiJing's patented air shower technologies, and includes 360-degree jet nozzles that work at more than 25 m/s. Our smart, automatic YJ-A features a touchscreen LCD color display that allows the user to customize the air shower interval and many other settings, as well as control user access. We employ German technology for our interlocking door system, which ensures a clean seal that prevents contaminant seepage. The YJ-A series come equipped with the same standard features as our YJ-S series, but offer the convenience of a sleek, high-tech automatic door. All YiJing Air Shower models can be customized and configured to meet your specifications.

YiJing Air Shower Advantages

1) Customizable

Choose one or more of our 14 optional features to build the perfect air shower for your needs.

2) Modern

YiJing air showers are manufactured to exacting standards using state-of-the-art machinery including laser cutting and CNC automatic sheet cutting equipment. We use only SUS304-grade stainless steel and high-quality cold-rolled steel plates for our interior and exterior surfaces.

3) Smart

Our air showers come equipped with a 7" LCD touchscreen display PLC system, an OTS error code display system, and available audio prompts and instructions. The system can be set to manual or automatic mode, and includes security features such as a screen lock, delayed light timer, password protection, and total system access control.

4) Dependable

All electrical air shower components, including door locks (LCJ), door seals (Dorma), and LED lights (Omron) employ patented, innovative technologies. All other proprietary technologies are covered in Chinese patent ZL 2010-2 0502252-1.

5) Flexible

We can customize and add features such as UV lights, door configuration, air shower dimensions, interior/exterior materials, ozone generators, infrared sensing technologies, fingerprint access, etc. according to your needs.

E-Clean YJ-A Series Air Shower Spec Sheet
Model	YJ-A-1	YJ-A-1500	YJ-A-2	YJ-A-3
Material	Available in 100% SUS304 Stainless Steel and/or High-Quality Steel Plate
Users	1	2	2-3	3-4
Air Shower Time	0-99 seconds
Jet Nozzles	12	18	24	36
Nozzle Diameter	30 mm
Air Velocity	> 25 m/s
Filter Efficacy	≥99.995% of Particles ≥0.3μm
Control Panel	7" LCD Touchscreen PLC Control Panel
Filter Size LxWxH (mm)	600 × 600 × 120	820 × 600 × 120	600 × 600 × 120	600 × 600 × 120
No. of Filters	2	2	4	6
Exterior Size LxWxH (mm)	1700 x 1000 x 2200	1700 x 1500 x 2200	1700 x 2000 x 2200	1700 x 3000 x 2200
Interior Size LxWxH (mm)	800 x 900 x 1960	800 x 1400 x 1960	800 x 1900 x 1960	800 x 2900 x 1960
Power Source	380V/50Hz (Also Available in 220V and 110V)
Lighting	1 Recessed LED	2 Recessed LED	2 Recessed LED	3 Recessed LED
Fan Power (# x Kw)	2 x 0.55	2 x 0.75	4 x 0.55	6 x 0.55
YiJing Patent No. ZL-2010-2-0502252.1

E-Clean YJ-A Series Air Shower Standard Features

Infrared Sensor for Automatic Door
360° Stainless Steel Jet Nozzles
Advanced Sensor Technology
7" Smart LCD Touchscreen PLC Control Panel
