Professional Vertical Shaft Lime Kiln From China Manufacturers

Supplier: Henan Zhengzhou Mining Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Katia Zhao
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

after sale service:	for the whole using life;	installation:	under our engineer's guide;
After-sales Service Provided:	Field installation, commissioning and training;	Packaging Detail:	standard export packing or according to customers' requirements;
design:	offer;	Condition:	New;
Dimension(LWH):	Customizable;	After-sales Service Provided:	Engineers available to service machinery overseas;
Brand Name:	ZK;	Port:	Tianjin, Shanghai, Qingdao;
Power(W):	As required;	Product name:	Professional Vertical Shaft Lime Kiln From China Manufacturers;
Weight:	heavy;	Place of Origin:	Henan China (Mainland);
testing:	we offer;	Supply Ability:	200 Set/Sets per Year;
Warranty:	1 Year;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Voltage:	220/380/440v;	Certification:	ISO CE;

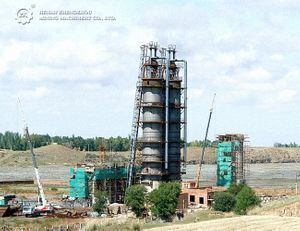

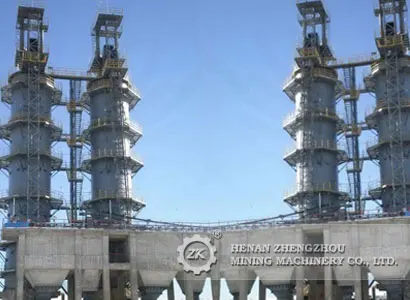

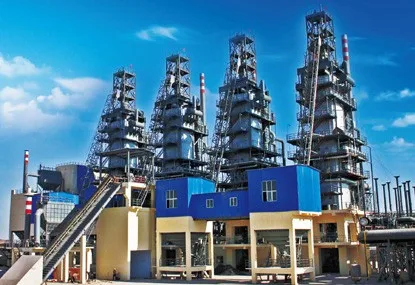

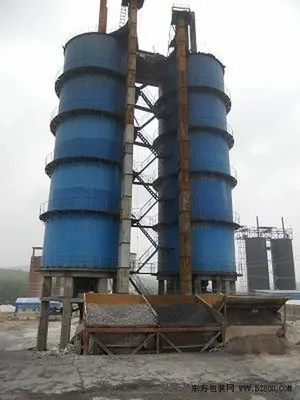

Professional Vertical Shaft Lime Kiln From China Manufacturers

Product Description

Vertical Shaft Kiln to building material equipment, is the main equipment for sintering cement clinker in cement production plant, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
1. Cement Vertical Shaft Kiln is used for making of cement clinker and there are dry and wet methods to make cement.

2. Metallurgy chemical Vertical Shaft Kiln is used in metallurgy industry and ironworks for lean iron ore, chromium ore and ferronickel ore calcimine.

3. Lime Vertical Shaft Kiln is used in the most important equipment in lime production line.

Vertical Shaft Kiln is used for

Calcination of high aluminum vandal ochre in refractory material industry;
Calcination of calotte and aluminum hydroxide in aluminum manufacturer;
Calcination of chrome sand ore and chrome powder ore in chemical plant.

Specifications of Vertical Shaft Kiln

Specificttions (mm)	Kiln demensions			Output(t/h)	Rotation speed(r/min)	Moto power(kw)	Weight	Note
Specificttions (mm)	Diameter (mm)	Length (mm)	Obliquity (%)	Output(t/h)	Rotation speed(r/min)	Moto power(kw)	(t)	Note
ø1.4*33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5	----
ø1.6*36	1.6	36	4	1.2-1.9	0.26-2.63	22	52	----
ø1.8*45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2	----
ø1.9*39	1.9	39	4	1.65-3	0.29-2.93	30	77.59	----
ø2.0*40	2	40	3	2.5-4	0.23-2.26	37	119.1	----
ø2.2*45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3	----
ø2.5*40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61	----
ø2.5*50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37	----
ø2.5*54	2.5	54	3.5	6.9-8.5	0.48-1.45	55	196.29	----
ø2.7*42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5	----
ø2.8*44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58	Suspension preheating kiln
ø3.0*45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94	----
ø3.0*48	3	48	3.5	25.6-29.3	0.6-3.48	100	237	Outside disassemble kiln
ø3.0*60	3	60	3.5	12.3-14.1	0.3-2	100	310	----
ø3.2*50	3.2	50	4	40.5-42	0.6-3	125	278	Outside disassemble kiln

Packaging & Shipping

Our Services

pre-sale services:
We offer you the profase plan, the technology process and the team design according to your special demands and the conditions of the job site.

sales services:
Send professional technicians to the workplace to guide the installation and adjustment, provide the training of the operation, meet the test together with you.

Service after sale:
Establish long-term friendship with you, we regularly receive your comments. In addition, we provide one-year warranty to ensure normal operation of your machine.

All Henan Zhengzhou Mining Machinery Equipment Co., Ltd are produced by the professional technicians of our own factory, with best price and high quality. We look forward to cooperating with you.

We would like to recommend a machine or production line suitable for you and we will send you a best offer.

Company Information

Henan Zhengzhou Mining Machinery Co., Ltd. established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 60000 m² and various building area of 35000 m². In the plant, there are workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.

The main products of company include: ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, preheater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry. The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.
