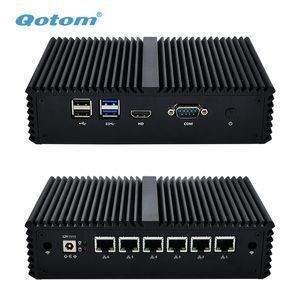

oem firewall x86 firewall router board firewall

Product details
Brand Name:OEM;VPN Support:Yes;
Intel Graphics:Intel HD Graphics 510/520/610;Dimension:187*111*50mm;
Memory Capacity:≥ 4GB;Model Number:Q500G6-09;
Port:Shenzhen;Color:Black;
Place of Origin:Guangdong China;Simultaneous Sessions:6;
Type:Wired & Wireless;Supply Ability:10000 Set/Sets per Month;
Hard Disk:2.5 inch SATA HDD and Msata SSD;Memory:DDR4L DIMM Memory Slot;
Packageing List:Power adapter ,VESA mount bracket, 2 antennas;Packaging Detail:the standarded export carton;
Processor:Intel Celeron/Core i3 i5 i7;Operating System:win7/8/10/Linux;
Products Status:Stock;AES-NI:Yes;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal, Alipay;Certification:CE;
Products
Item name
Q500G6
Dimension
187*111*50mm(L*H*W)
Processor( support AES-NI)
Intel Celeron 3855U,1.6GHz,2M Cache,dual core ,                                  Intel HD Graphics 510
Intel Celeron 3865U,1.8GHz,dual core,                                                        Intel HD Graphics 610
Intel Core i3-6100U,2.3GHz,dual core,                                                       Intel HD Graphics 520
Intel Core i5-6200U,2.3GHz,to 2.8GHz,dual core,                                   Intel HD Graphics 520
Intel Core i7-6500U,2.5GHz,to 3.1GHz,dual core,                                     Intel HD Graphics 520
Memory(RAM)
DDR4L SO-DIMM Socket (Up 16G,2133MHz)
Storage
1x 2.5 inch HDD/SSD 1X full length Mini-PCIE for Msata
 LAN
6 * Intel I211-AT- 10/100/1000 Controller
WiFi
Option 1 : USB WIFI RT3070( by default)
Option 2 : Antheros PCIE WIFI (choose it,there will be 5 LAN works )

(For option 1,pls use it on AP mode settings)

Audio Solution
Realtek ALC662 6-Channel HD Audio
Expansion port
1x SIM card slot , 2*RS-485(optional)
Front-Panel Connectors
power on/off button
HDD LED, Power LEDs
2 *USB 2.0 Ports
2 * USB 3.0 ports
Serial port: 1RS-232(COM 1)
HD Video port
Rear-Panel Connectors
12V DC input ,(DC Jack 5.5mm,2.5mm)
6* Intel RJ-45 Ports for Gigabit LAN
1 x Speak Out Connector
Support system
Preload ,support linux Ubuntu,Windows 7/8/10 etc.

Attention

Here are all optional configurations. Any irequirements,pls contact me.

Memory:4G/8G/16G RAM
Hard disk: 8GB/ 16G/32G/64G/128G/256G/512GB Msata SSD
2.5" HDD: 500G or 1T

WIFI: optional
