China T611 Motor cyle Cylinder Horizontal Boring Milling Machine price

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Production Capacity:	High;
Packaging Detail:	Plywood case China T611 Motorcyle Cylinder Horizontal Boring Miliing Machine price;	Name:	China T611 Motorcyle Cylinder Horizontal Boring Miliing Machine price;
Certification:	ISO CE;	Supply Ability:	150 Set/Sets per Month China T611 Motorcyle Cylinder Horizontal Boring Miliing Machine;
Longitudinal and transverse feed range:	6-250 mm/min;	Condition:	New;
Voltage:	Customer's Requirement;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,China T611 Motor cyle Cylinder Horizontal Boring M;
Brand Name:	Luzhong Machine Tool;	Dimension(LWH):	480020002500mm;
Color:	customer's requirement;	Key Selling Points:	Easy to Operate;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;	Warranty:	1 Year;
Motor Power (kw):	3;	Place of Origin:	Shandong China;
After-sales Service Provided:	Online support,Video technical support;	Weight:	9000kg;
Spindle speed range:	20-450rpm;	Type:	horizontal;
Spindle diameter:	110mm;	CNC or Not:	Normal;
Worktable rapid feed speed:	2500mm/min;	Max. load of worktable:	3000kg;
Quill travel:	400mm;	Port:	Any port in China;

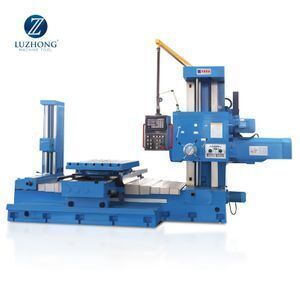

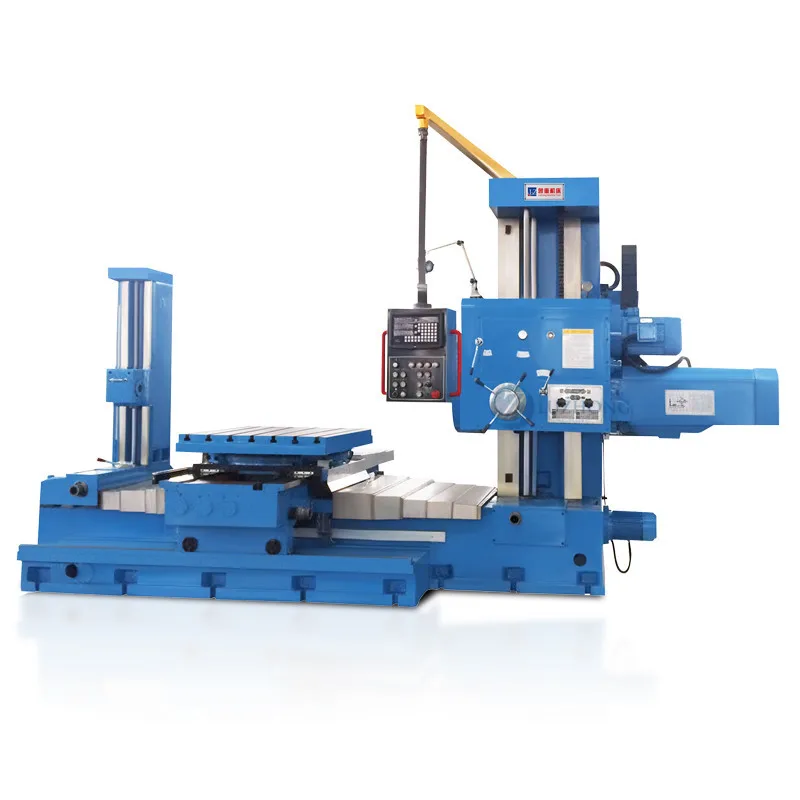

China T611 Motorcyle Cylinder Horizontal Boring Milling Machine price

Product Description

Product main features and uses:

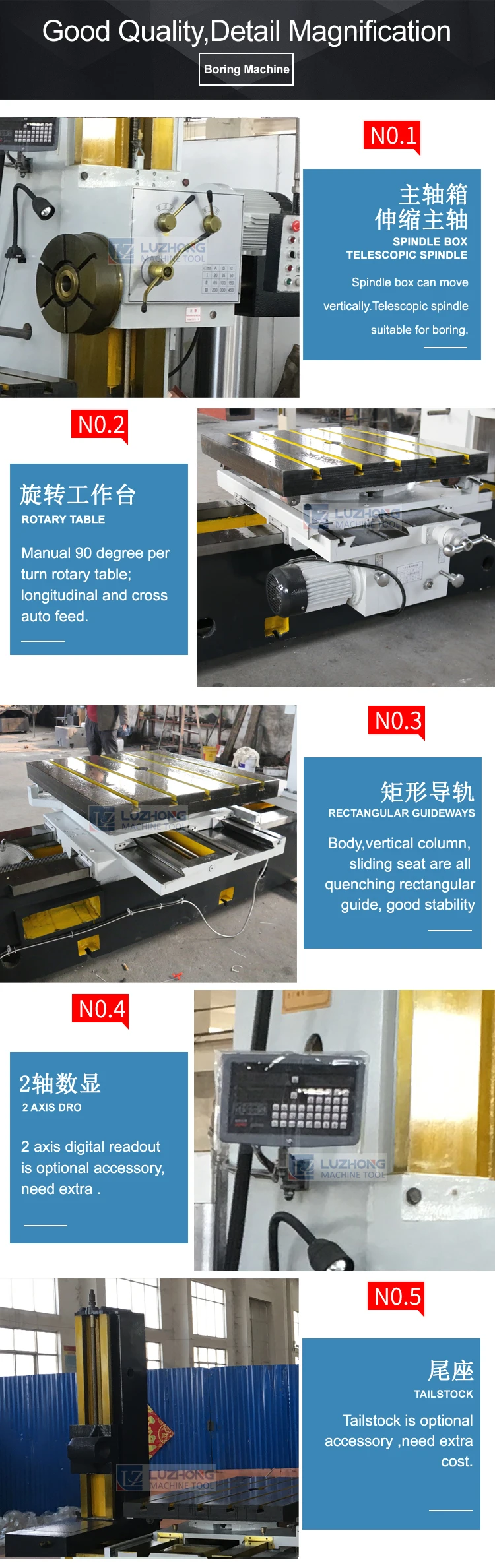

1. Appearance beautiful generous overall layout of the overall layout.

2. The machine body, the upright post and the sliding block are all made of rectangular guide rail, and the stability is good.

3. Guide rail to take automatic quenching, high wear resistance.

4. Digital synchronous display, intuitive and accurate, can improve the work efficiency.

5. After the tailstock is optional

Product application:

1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.

2. Drilling, boring and hinge hole can be carried out on the machine tool.

Product main technical specification:

Specifications	Units	T611
Max. load of worktable	kg	3000
Spindle speed step		9 step
Spindle speed range	rpm	20-450
Longitudinal feed step		6 steps
Longitudinal and transverse feed range	mm/min	6-250
Worktable rapid feed speed	mm/min	2500
Headstock lifting and lowering feed speed	mm/min	50-720
Spindle diameter	mm	110
Quill travel	mm	400
Table size	Mm2	1130×930
Longitudinal travel of worktable	mm	1400(without tailstock)
transverse travel of worktable	mm	1000
Vertical travel of headstock	mm	900
Spindle taper		MT6#
Spindle motor power	KW	5.5/7.5
Longitudinal and transverse motor power	KW	2.2
Headstock lifting and lowering motor power	KW	1.5
Overall dimension	mm	4800×2000×2500
