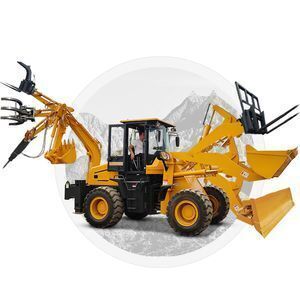

VOTE Mini Wheel Backhoe Loader With CE ISO And Factory Price For Sale

Supplier: Jining VOTE Machinery Technology Co., Ltd.
Region: Shandong, China
Contact: Mr VOTE MACH.
Price: $90.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	VOTE;	Hydraulic Cylinder Brand:	CHAOSHUN;
Place of Origin:	Shandong China;	Type:	Backhoe Loader;
Engine Brand:	YUNNEI;	Certification:	CE ISO;
Moving Type:	Wheel Loader;	Package Type:	Container: one 20GP for 1 piece, one 40GP / 40HC for 2 pieces, two 40GP / 40HC for 3 to 4 pieces. And so on.;
Package Preview:	https://sc02.alicdn.com/kf/HTB1GgMpcf5G3KVjSZPxq6zI3XXam.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1fasrcoGF3KVjSZFvq6z_nXXaG.jpg_640x640.jpg;	Hydraulic Valve Brand:	BOXINHUASHENG;
UNIQUE SELLING POINT:	High operating efficiency;	Condition:	New;
Single package size:	680X204X285 cm;	Selling Units:	Single item;
Warranty:	1 Year;	Hydraulic Pump Brand:	BOXINHUASHENG;
Single gross weight:	6,000 KG;	Applicable Industries:	Manufacturing Plant,Farms,Construction works ,Energy & Mining;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;

VOTE Mini Wheel Backhoe Loader With CE ISO And Factory Price For Sale

Product Description

You know what difference about our backhoe loaders?

-Our backhoe loaders deliver the power and precise handling you need when operating in areas where using larger equipment is not practical. Because of their relatively small frame size and versatility our backhoe loaders improve construction productivity and lower your machine operating costs.

-Our backhoe loaders were designed as a system, which means every part plays a critical role.

It's why we've made it easier to maintain your machine.

-The shape of our buckets improves digging, loading and material retention.

Product Parameters

Model	VTZ10-20	VTZ15-26	VTZ15-28	VTZ25-30
Dimensions (mm)	550017202650	580018502750	620019602850	680020402850
Operating Weight	3400 kg	4800 kg	5400 kg	6000 kg
Rated Load	1500 kg	2000 kg	2500 kg	3000 kg
Rated Power	40 kw (55 hp)	55 kw (75 hp)	76 kw (104 hp)	92 kw (125 hp)
Engine Type	Diesel, 4-Cylinder, 4-Stroke, In-line, Water Cooling
Backhoe Capacity	0.1 m³	0.15 m³	0.2 m³	0.3 m³
Loader Capacity	0.75 m³	1.0 m³	1.25 m³	1.5 m³
Backhoe Max. Digging Depth	2000 mm	2700 mm	2600 mm	2600 mm
Backhoe Max. Digging Height	3300 mm	4200 mm	4300 mm	4400 mm
Backhoe Max. Digging Radius	2900 mm	4600 mm	4600 mm	4600 mm
Backhoe Max. Dumping Height	1850 mm	2200 mm	2300 mm	2300 mm
Loader Max. Dumping Height	2800 mm	3300 mm	3500 mm	3500 mm
Loader Max. Dumping Distance	800 mm	900 mm	900 mm	900 mm
Backhoe Max. Breakout Force	25 kn (2550 kg)	28 kn (2856 kg)	28 kn (2856 kg)	28 kn (2856 kg)
Loader Max. Breakout Force	36 kn (3672 kg)	36 kn (3672 kg)	42 kn (4284 kg)	42 kn (4284 kg)
Travel Speed	0 - 26 km/h	0 - 26 km/h	0 - 30km/h	0 - 30 km/h
Gradeability	30°	30°	30°	30°
Min. Turning Radius	3500 mm	4000 mm	4500 mm	4500 mm
Working Pressure	16 MPa	16 MPa	16 MPa	16 MPa
Wheel Tread	1630 mm	1550 mm	1630 mm	1630 mm
Wheel Base	2670 mm	2150 mm	2670 mm	2670 mm
Tire Model	20.5 - 16	23.5 - 16	16/70 - 20	16/70 - 20
Tire Pressure	250 KPa	250 KPa	250 KPa	250 KPa
Transmission Type	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Braking System	Air Assist	Air Assist	Air Assist	Air Assist

Attachments options make our backhoe loaders multifunctional:

Invest in what you already own - give your machine attachments and equip it to do more. And because our attachments are engineered, balanced and tested to each model, they promise to minimize stress and optimize performance.

Product Details

Customer Feedback

Many applications - maybe you know, but more than you know:

Our backhoe loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to:

- General Construction.

- Demolitions and Excavations.

- Landscaping.

- Breaking Asphalt and Paving.
