Multifunction Diesel Off Road Drum Forklift Truck Machines Goodsense Forklift

Supplier: Jining VOTE Machinery Technology Co., Ltd.
Region: Shandong, China
Contact: Mr VOTE MACH.
Price: $800.00 / >=2 units
Min. Order: 2 units

Click here to contact

Product details

Type:	Powered Pallet Truck;	Fork Length:	1220-1520mm;
Power Souce:	Diesel Engine;	Place of Origin:	China;
Brand Name:	VOTE;	Single package size:	440X190X290 cm;
Fork Width:	160-180mm;	After Warranty Service:	Video technical support,Online support,Spare parts;
Selling Units:	Single item;	Condition:	New;
Certification:	CE, ISO;	Min. Lifting Height:	3000mm;
Local Service Location:	None;	Max. Lifting Height:	6000mm;
Showroom Location:	None;	Applicable Industries:	Manufacturing Plant,Farms,Construction works ,Energy & Mining;
Warranty:	1 YEAR;	After-sales Service Provided:	Online support;
Single gross weight:	6000.0 KG;

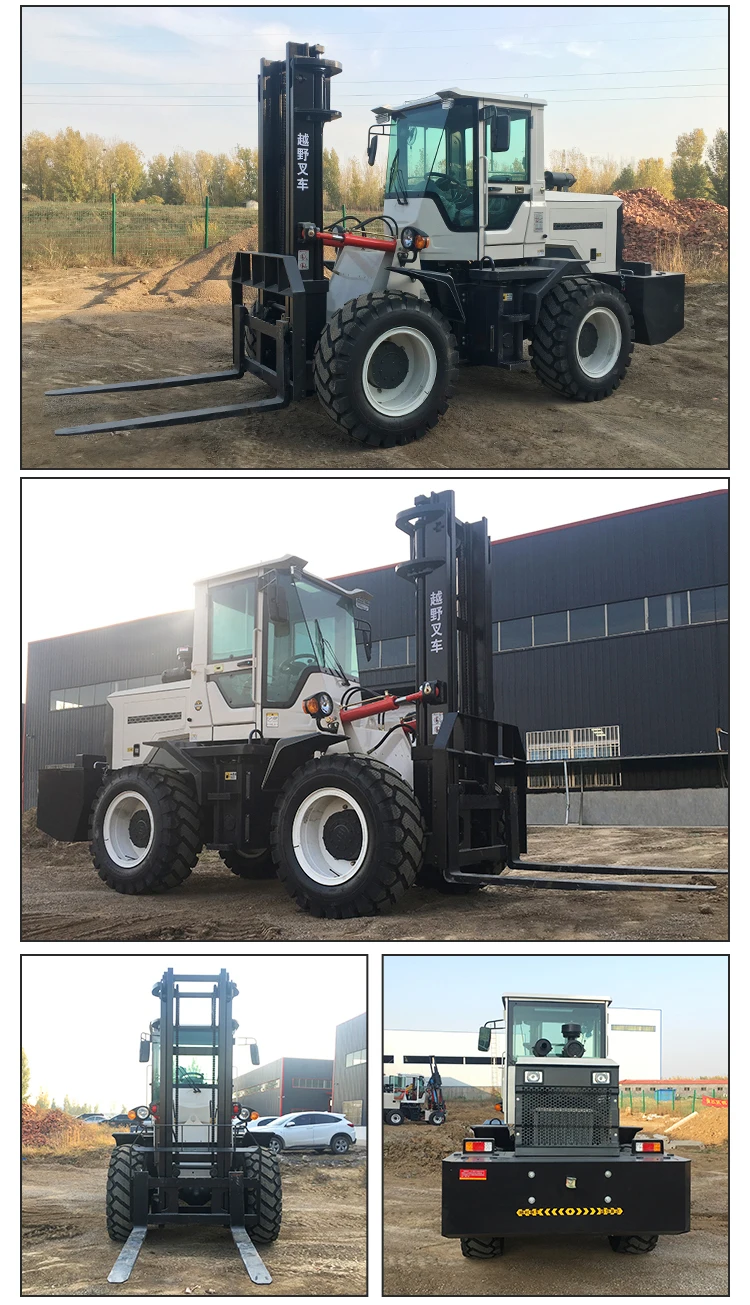

Multifunction Off Road Drum Forklift Machines Goodsense Forklift

Product Description

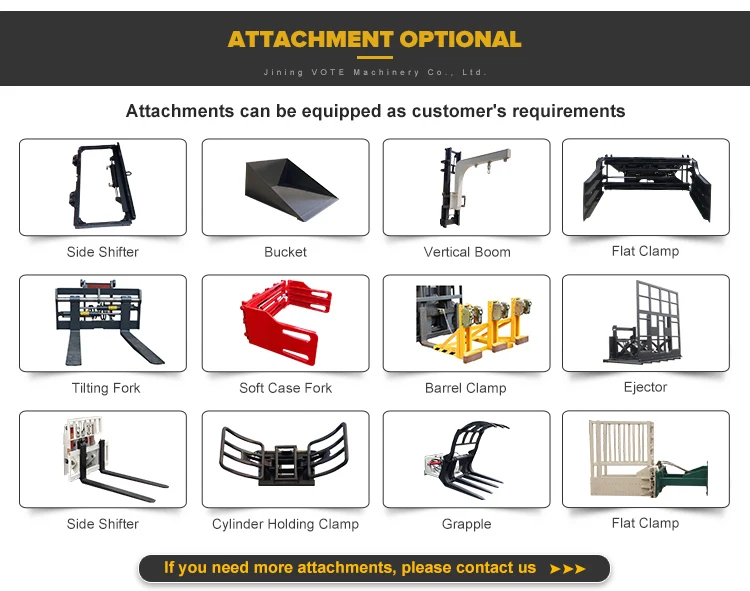

The cross-country forklift is also called the field forklift, which has good maneuverability and off-road reliability. It is a kind of construction vehicle balance forklift that can load, unload, stack and carry goods in safe and high ground on slopes and uneven ground. It can be equipped with forks or a variety of attachments to improve work efficiency. Off-road forklifts are suitable for road construction, urban construction, environmental sanitation, stone yards, small and medium-sized civil engineering, stations, terminals, freight yards, warehouses, etc., mainly used to transport stone materials, equipment, goods, urban garbage bins and container materials.

Parameter

Model	VT-3000	VT-3500A	VT-4000	VT-5000
Dimensions	420018002700mm	420018002700mm	440018502800mm	440019002900mm
Engine model	HUADONG 4DBY4(490)	YUNNEI YN27GBZ(490 Turbocharged)	HUADONG 4DHZY4(4102 Turbocharged)	YUNNEI YN38GBZ(4102 Turbocharged)
Fork length	1220mm	1220mm	1520mm	1520mm
Rated lift weight	3000kg	3500kg	4000kg	5000kg
Turning radius	3500mm	3500mm	4500mm	4500mm
Platform ground clearance	300mm	300mm	350mm	350mm
Axle	Small wheel side weight cast steel bridge	Small wheel side weight cast steel bridge	Middle wheel steel bridge	Large wheel steel bridge
Tire	20.5/70-16	20.5/70-16	20.5/70-16	16/70-20
Gantry width	160mm	160mm	180mm	180mm
Overall weight	4000kg	4200kg	5000kg	5500kg
Engine power	40kw	58kw	76KW	76KW
Gradeability	≤38°	≤38°	≤38°	≤38°
Rated lifting height	3000-6000mm	3000-6000mm	3000-6000mm	3000-6000mm
Front ground clearance	250-350mm	250-350mm	300-380mm	300-380mm
Drive type	4-wheel drive	4-wheel drive	4-wheel drive	4-wheel drive
Gearbox	265 Double high and low speed large pump torque converter	265 Double high and low speed large pump torque converter	280 Double high and low speed torque converter	280 Double high and low speed torque converter
Frame	Hinged thick 3mm	Hinged thick 3mm	Hinged thick 3.5mm	Hinged thick 3.5mm
