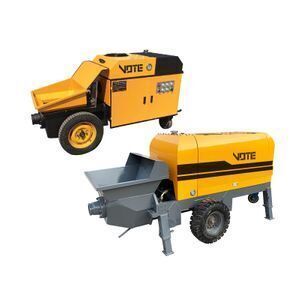

Small Secondary Construction Column Pump Diesel Mini Concrete Pump For Sale

Supplier: Jining VOTE Machinery Technology Co., Ltd.
Region: Shandong, China
Contact: Mr VOTE MACH.
Price: $3400.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Applicable Industries:	Farms,Construction works ,Energy & Mining;	Local Service Location:	None;
After-sales Service Provided:	Video technical support,Free spare parts,Online support;	Package Type:	Firstly, the machine is wrapped with the plastic film to reduce the wear. Then it is loaded into an international standard wooden box (or as customers requirements), and finally loaded into the container.;
Brand Name:	VOTE;	Single package size:	450X150X170 cm;
Single gross weight:	2,700 KG;	Power Type:	Electric;
After Warranty Service:	Video technical support,Online support,Spare parts;	Condition:	New;
Showroom Location:	None;	UNIQUE SELLING POINT:	High operating efficiency;
Certification:	CE, ISO;	Place of Origin:	Shandong China;
Warranty:	1 year;	Selling Units:	Single item;

Small Secondary Construction Column Pump Diesel Concrete Pump Truck

Product Description

1.The special pouring pump for secondary structure fine stone mortar can realize the transportation of fine stone concrete and mortar for long-distance high-rise buildings.
2.The distribution valve adopts advanced S-tube valve, which has good sealing performance and simple and reliable structure.
3.The eye plate (commonly known as wear plate) and floating cutting ring are made of hard alloy, which has good wear resistance, long service life and convenient replacement. The cutting ring can automatically compensate the gap structure.
4.The machine adopts electric-liquid control mode, with perfect electro-hydraulic overload protection and instrument display system. It has anti-pump operation function, easy to eliminate blockage fault. The pumping speed can be adjusted to meet various working conditions.
5.The centralized lubrication system automatically controls the start and stop and running time by the program, effectively extending the service life of the rotating parts.
6.The electrical components such as the contactor and the push button switch are reliable in operation, the control circuit is simple, and the electrical box is equipped with a switch for easy operation.
7.The main seals are made of high quality seals to prevent internal and external leakage of the hydraulic system.

Product parameters

Model	VTGZ-10A	VTGZ-10B	VTGZ-20	VTGZ-40
Driving mode	Drag-and-drop	Self-propelled(electric)	Drag-and-drop	Drag-and-drop
Motor Power	15KW(National standard)	15KW(National standard)	22KW(National standard)	55KW (National standard)
Working form	Hydraulic piston	Hydraulic piston	Hydraulic piston	Hydraulic piston
Concrete throughput	10m³/h	10m³/h	20m³/h	40m³/h
Largest aggregate size	<15mm	<15mm	Type A <15mm, Type B <30mm	<30mm
Duct diameter	75/80mm	75/80mm	75/80mm	75/80mm
Bore/stroke	120/400mm	120/400mm	120/500mm	160/800mm
Machine weight	720kg	720kg	1050kg	2700kg
Product usage	Conveying mortar fine stone	Conveying mortar fine stone	Conveying fine stone concrete	Conveying mortar fine stone
Dimension	20007001050mm	20007001050mm	23508201150mm	450015001700mm
Theoretical max. conveying distance	Vertical 30m Parallel 60m	Vertical 30m Parallel 60m	Vertical 50m Parallel 80m	Vertical 240m Parallel 550m
Theoretical max. conveying distance	Vertical 30m Parallel 60m	Vertical 30m Parallel 60m	Vertical 50m Parallel 80m	Vertical 240m Parallel 550m
