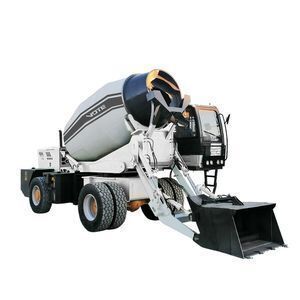

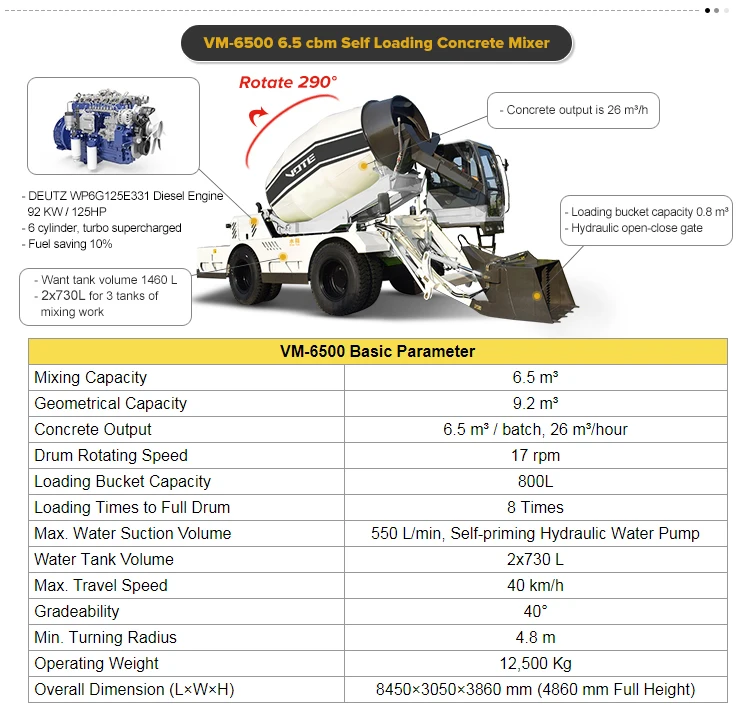

Automatic Water Self Loading 1.8 to 6.5 Cubic Meters Concrete Mixer Truck Price For Sale

Supplier: Jining VOTE Machinery Technology Co., Ltd.
Region: Shandong, China
Contact: Mr VOTE MACH.
Price: $330.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Warranty:	1 Year ;	Single package size:	783X268X417 cm ;
Certification:	CE, ISO ;	Single gross weight:	7,200 KG ;
Brand Name:	VOTE ;	Selling Units:	Single item ;
Condition:	New ;	Applicable Industries:	Farms,Home Use,Construction works ,Energy & Mining ;
Place of Origin:	Shandong China ;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support ;

Automatic Water Self Loading 1.8 to 6.5 Cubic Meters Concrete Mixer Truck Price

Related Products

Product Description

1. VOTE VM Series Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader.

2. The hub reducer driving axle and full hydraulic transmission case make the mixer truck travel well on kinds of complex off road.

3. VM Self Loading Concrete Mixer Truck is equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc.

4. Mixer drum can be lifted up 20° to make concrete discharge easier.

5. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.

6. The external water pump is equipped with change-over switch of water suction so that water can be into water tank and mixer drum respectively.

7. The discharge chute can be tilted and rotate 90°. It is also removable so that concrete is to anywhere directly. Two sets of chute extenders are provided as standard.

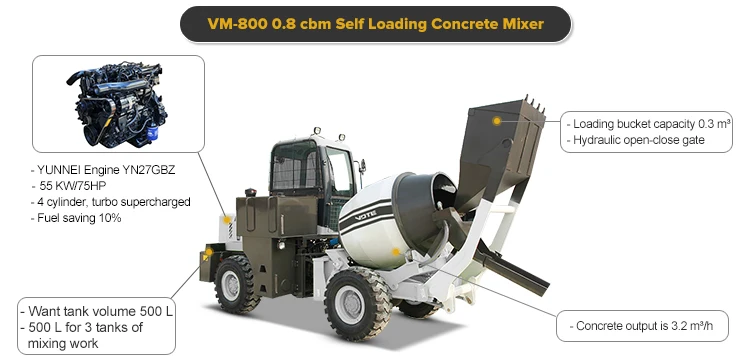

VM-800 Basic Parameter
Mixing volume	0.8 M3
Concrete output	0.8 M3 / batch, 3.2 M3 / hour
Drum rotation speed	13 rpm
Loading bucket capacity	300L
Loading times to full drum	3 times
Max. water suction capacity	250 L/min, self-priming electric water pump
Water tank capacity	500 L
Max. travel speed	25 km/h
Gradeability	40°
Operating weight	3,500 Kg
Overall Dimension (L×W×H)	6903 x 1810 x 2684 mm (3063 mm full height)

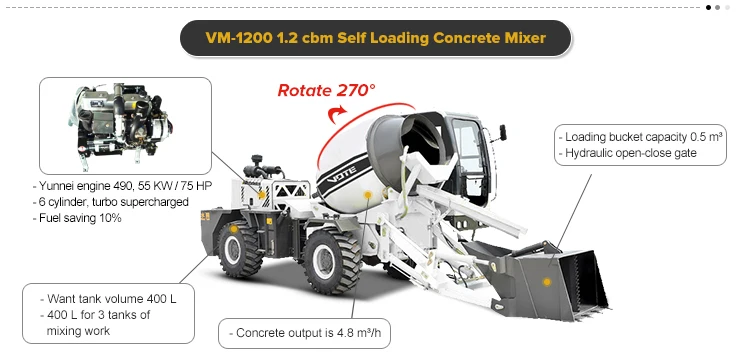

VM-1200 Basic Parameter
Mixing volume	1.2 m³
Concrete output	1.2 m³/ batch, 4.8 m³/ h
Drum rotating speed	13 rpm
Loading bucket capacity	500L
Loading times to full drum	3 times
Max. water suction capacity	400L
Water tank capacity	2x200 L
Max. travel speed	30 km/h
Gradeability	30°
Operating weight	4185 kg
Overall dimension (L×W×H)	720025503400 mm

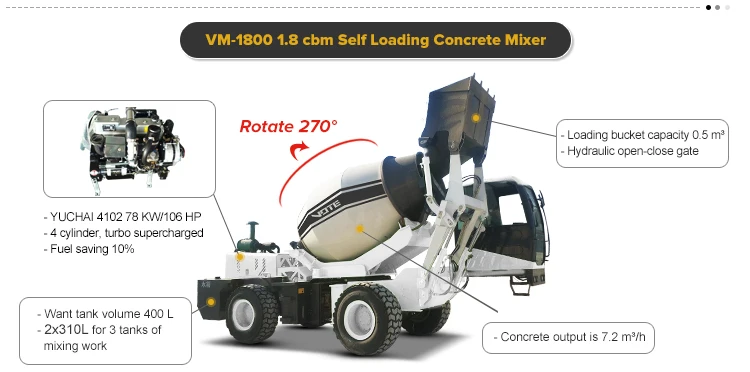

VM-1800 Basic Parameter
Mixing volume	1.8 m³
Concrete output	1.8 m³ / batch, 7.2 m³ / hour
Drum rotating speed	13 rpm
Loading bucket capacity	600 L
Loading times to full drum	Around 5 times
Max. water suction capacity	400L
Water tank capacity	2x200 L
Max. travel speed	30 km/h
Gradeability	30°
Operating weight	5666 kg
Overall dimension (L×W×H)	730026503750 mm

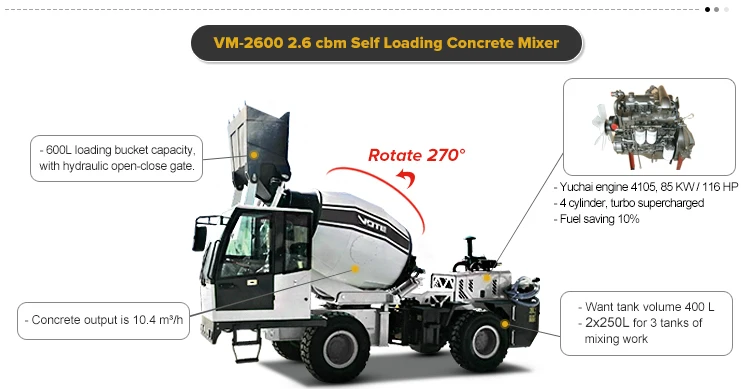

VM-2600 Basic Parameter
Mixing volume	2.6 M3
Geometrical volume	3.6 M3
Concrete output	2.6m³/ batch, 10.4 m³/ h
Drum rotating speed	13 rpm
Loading bucket capacity	600 L
Loading times to full drum	Around 5 times
Max. water suction capacity	250 L/min. (Self-priming electronic water pump)
Water tank capacity	2x250 L
Max. travel speed	30 km/h
Gradeability	40°
Operating weight	6500 kg
Overall dimension (L×W×H)	780027504100 mm

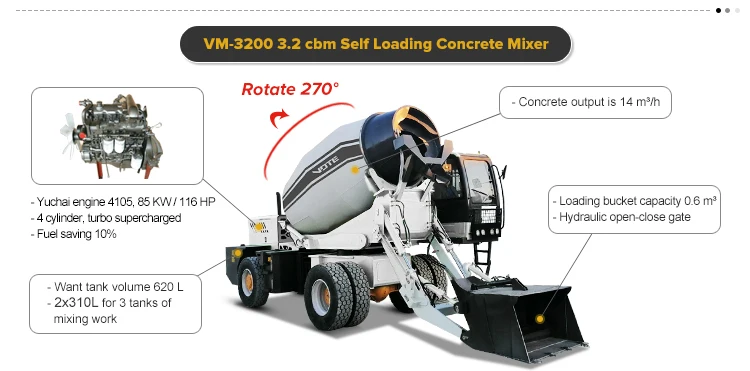

VM-3200 Basic Parameter
Mixing volume	3.2 m³
Geometrical volume	5.3 m³
Concrete output	3.2 m³ / batch, 12.8 m³ / h
Drum rotation speed	20 rpm
Loading bucket capacity	0.6 m³
Loading times to full drum	6 times
Max. water suction volume	550 L/min. (self-priming hydraulic water pump)
Water tank volume	2 x 310 L
Max. travel speed	30 km/h
Max. gradeability	40°
Operating weight	7200 kg
Overall size (L×W×H)	783026804170 mm

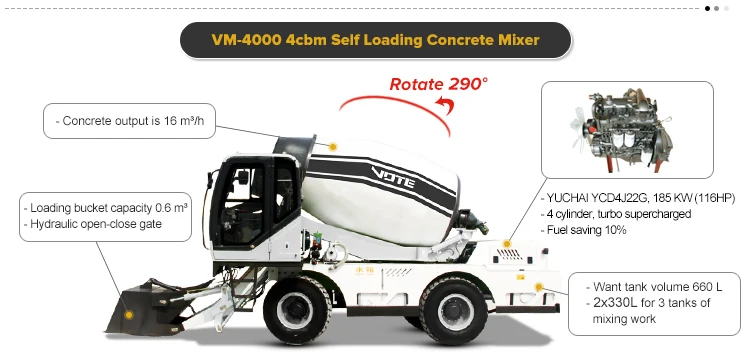

VM-4000 Basic Parameter
Mixing Capacity	4.0 m³
Geometrical Capacity	6.1 m³
Concrete Output	4 m³/batch, 16 m³/h
Drum Rotating Speed	17 rpm
Loading Bucket Capacity	0.6 m³
Loading Times to Full Drum	7 Times
Max. Water Suction Volume	550 L/min, Self-priming Hydraulic Water Pump
Water Tank Volume	2x330 L
Max. Travel Speed	35 km/h
Gradeability	40°
Operating Weight	9,200 kg
Overall Dimension (L×W×H)	764028704750 mm
