Engine Brand: | Optional; | Brand Name: | VOTE; |
Single package size: | 550X170X265 cm; | After Warranty Service: | Video technical support,Online support,Spare parts; |
Place of Origin: | Shandong China; | Marketing Type: | New Product 2020; |
Machinery Test Report: | Provided; | Certification: | CE,ISO; |
After-sales Service Provided: | Video technical support; | Hydraulic Cylinder Brand: | Optional; |
Power: | 55 kw; | Warranty: | 12+6month,1 Year; |
Video outgoing-inspection: | Provided; | Local Service Location: | None; |
Applicable Industries: | Farms,Home Use,Construction works ,Energy & Mining; | Hydraulic Valve Brand: | Optional; |
Selling Units: | Single item; | Machine Weight: | 3.4/4.8/5.4/6 ton; |
Type: | Backhoe Loader; | Showroom Location: | None; |
Warranty of core components: | 1 Year; | Moving Type: | Wheel Loader; |
Condition: | New; | Hydraulic Pump Brand: | Optional; |
Core Components: | Engine,Pump; | Single gross weight: | 3400.0 KG; |
UNIQUE SELLING POINT: | Fully hydraulic system; |

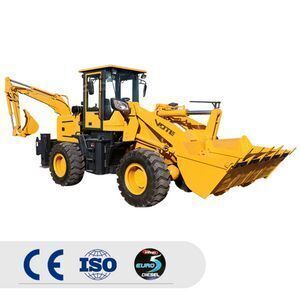

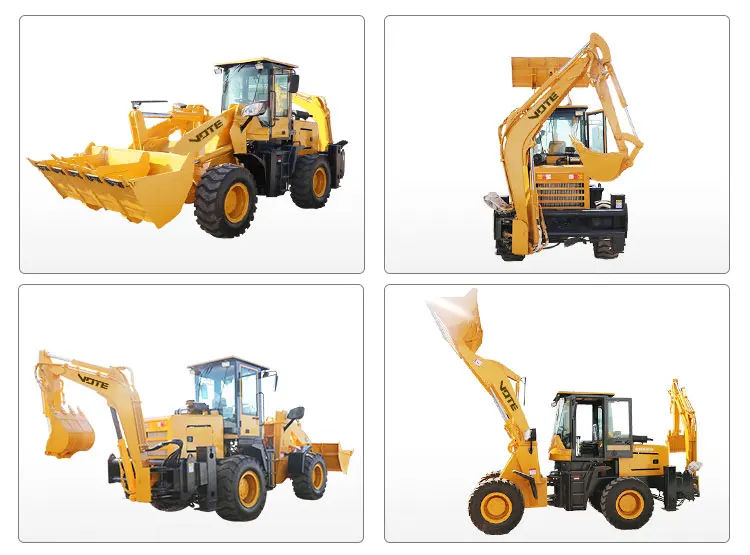

3-6 ton heavy duty towable backhoe mini backhoe loader for sale
You know what difference about our backhoe loaders?
Our backhoe loaders deliver the power and precise handling you need when operating in areas where using larger equipment is not practical. Because of their relatively small frame size and versatility our backhoe loaders improve construction productivity and lower your machine operating costs.
Our backhoe loaders were designed as a system, which means every part plays a critical role. It's why we've made it easier to maintain your machine.
The shape of our buckets improves digging, loading and material retention.
Model |
VTZ10-20 |
VTZ15-26 |
VTZ15-28 |
VTZ25-30 |
Dimensions |
5500*1720*2650mm |
5800*1850*2750mm |
6200*1960*2850mm |
6800*2040*2850mm |
Operating Weight |
3400 kg |
4800 kg |
5400 kg |
6000 kg |
Rated Load |
1500 kg |
2000 kg |
2500 kg |
3000 kg |
Rated Power |
40 kw (55 hp) |
55 kw (75 hp) |
76 kw (104 hp) |
92 kw (125 hp) |
Engine Type |
Diesel, 4-Cylinder, 4-Stroke, In-line, Water Cooling |
|||
Backhoe Capacity |
0.1 m³ |
0.15 m³ |
0.2 m³ |
0.3 m³ |
Loader Capacity |
0.75 m³ |
1.0 m³ |
1.25 m³ |
1.5 m³ |
Backhoe Max. Digging Depth |
2000 mm |
2700 mm |
2600 mm |
2600 mm |
Backhoe Max. Digging Height |
3300 mm |
4200 mm |
4300 mm |
4400 mm |
Backhoe Max. Digging Radius |
2900 mm |
4600 mm |
4600 mm |
4600 mm |
Backhoe Max. Dumping Height |
1850 mm |
2200 mm |
2300 mm |
2300 mm |
Loader Max. Dumping Height |
2800 mm |
3300 mm |
3500 mm |
3500 mm |
Loader Max. Dumping Distance |
800 mm |
900 mm |
900 mm |
900 mm |
Backhoe Max. Breakout Force |
25 kn (2550 kg) |
28 kn (2856 kg) |
28 kn (2856 kg) |
28 kn (2856 kg) |
Loader Max. Breakout Force |
36 kn (3672 kg) |
36 kn (3672 kg) |
42 kn (4284 kg) |
42 kn (4284 kg) |
Travel Speed |
0 - 26 km/h |
0 - 26 km/h |
0 - 30km/h |
0 - 30 km/h |
Gradeability |
30° |
30° |
30° |
30° |
Min. Turning Radius |
3500 mm |
4000 mm |
4500 mm |
4500 mm |
Working Pressure |
16 MPa |
16 MPa |
16 MPa |
16 MPa |
Wheel Tread |
1630 mm |
1550 mm |
1630 mm |
1630 mm |
Wheel Base |
2670 mm |
2150 mm |
2670 mm |
2670 mm |
Tire Model |
20.5 - 16 |
23.5 - 16 |
16/70 - 20 |
16/70 - 20 |
Tire Pressure |
250 KPa |
250 KPa |
250 KPa |
250 KPa |
Transmission Type |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Braking System |
Air Assist |
Air Assist |
Air Assist |
Air Assist |

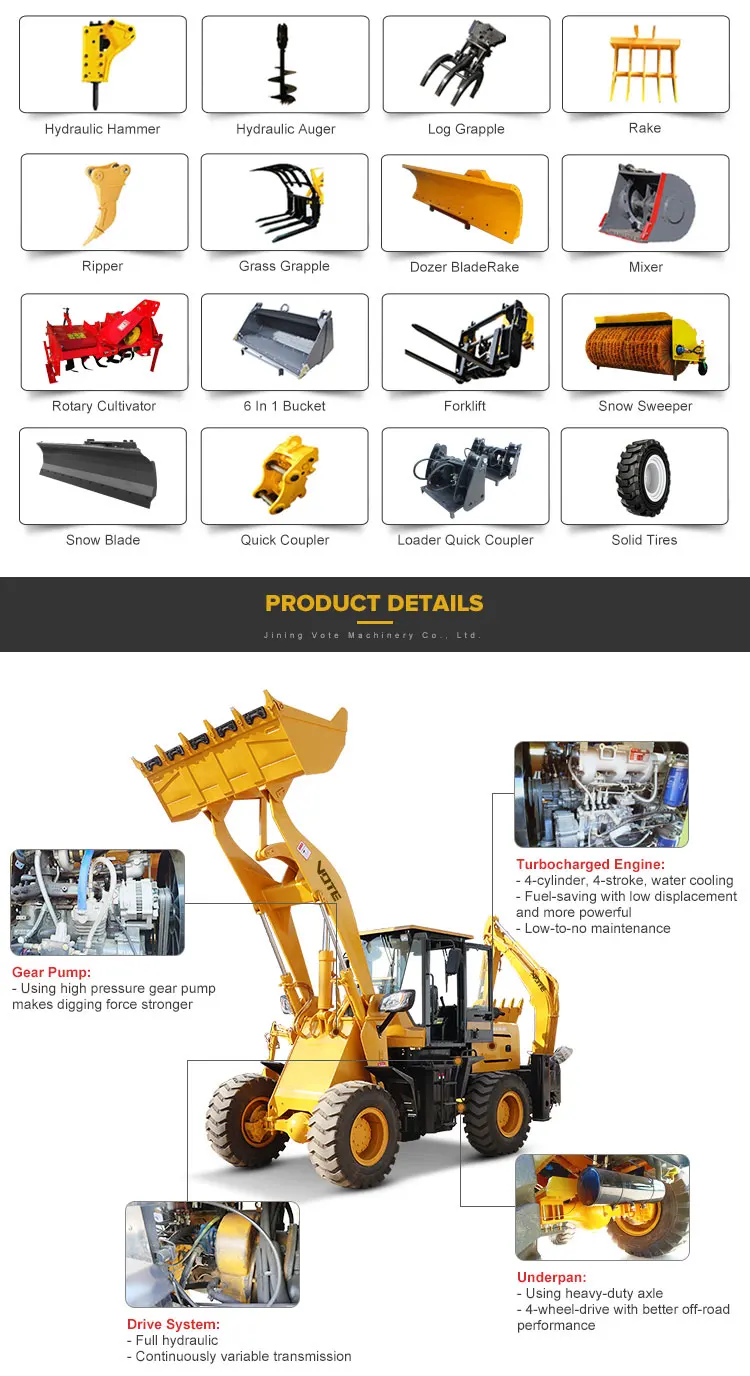

Invest in what you already own - give your machine attachments and equip it to do more. And because our attachments are engineered, balanced and tested to each model, they promise to minimize stress and optimize performance.
Many applications - maybe you know, but more than you know:
Our backhoe loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to:
- General Construction.
- Demolitions and Excavations.
- Landscaping.
- Breaking Asphalt and Paving.
I would like to quote you shipping cost and sailing schedule, if tell me DESTINATION SEA PORT or CITY when you send an inquiry.
