Applicable Industries: | Farms,Home Use,Construction works ,Energy & Mining; | Max Digging Radius: | 2450mm; |
Type: | Small Excavator; | Single gross weight: | 650 KG; |
Model Number: | VTW-08; | Maximum Digging Depth: | 1200mm; |
Hydraulic Cylinder Brand: | Hengli; | Maximum Digging Height: | 2350mm; |
Product name: | Mini crawler hydraulic excavator; | Keywords: | caterpillar excavator digger; |
Engine Brand: | YANMAR; | After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
Certification: | CE ISO; | Accessories: | Scraper bucket, Bucket ,Hammer ,Log grapple ,Drill; |
Engine: | Diesel Engine; | Hydraulic Pump Brand: | SHIMADZU; |
Operating Weight: | 600kg/800kg; | Motor: | Eton travel motor; |
Rated Speed: | 0--4km/h; | Selling Units: | Single item; |
Moving Type: | Crawler Excavator; | Warranty: | 1 Year; |
Single package size: | 2480X750X1375 cm; | Brand Name: | VOTE; |
Condition: | New; | Warranty: | 12+6 months; |
Color: | Red or customized; | Package Type: | Container /wooden case packaging 2480cm750cm*1375cm; |
Hydraulic Valve Brand: | HYDROCONTROL; | Name: | Chinese cheap mini excavator digging machine; |
Bucket capacity: | 0.02m3; | Place of Origin: | Shandong China; |

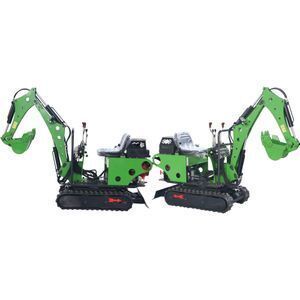

Cheap Prices Crawler Micro Mini Excavator For Sale From 0.8 Ton To 3.5 Ton
Model | VTW-08 | VTW-10 | VTW-13 | VTW-15 |
Operating Weight | 800 kg | 1,000 kg | 1,300 kg | 1,500 kg |
Rated Power | 8.6 kw (11.7 hp) | 7.5 kw (10.2 hp) | 14.1 kw (19.2 hp) | 14.1 kw (19.2 hp) |
Engine | Koop 1-Cylinder | Changchai 1-Cylinder | Koop 2-Cylinder | Koop 2-Cylinder |
Bucket Capacity | 0.02 m³ | 0.025 m³ | 0.025 m³ | 0.035 m³ |
Max. Digging Radius | 2450 mm | 2400 mm | 2400 mm | 2600 mm |
Max. Digging Depth | 1200 mm | 1400 mm | 1400 mm | 1600 mm |
Max. Digging Height | 2350 mm | 2490 mm | 2490 mm | 2690 mm |
Max. Dumping Height | 1600 mm | 1750 mm | 1750 mm | 1950 mm |
Overall Width | 720 mm | 920 mm | 940 mm | 1100 mm |
Model | VTW-17NY | VTW-18 | VTW-18NY | VTW-20 |
Operating Weight | 1,700 kg | 1,800 kg | 1,800 kg | 2,000 kg |
Rated Power | 10 kw (13.6 hp) | 22 kw (30 hp) | 10 kw (13.6 hp) | 18.1 kw (24.6 hp) |
Engine | Yanmar 3-Cylinder | Laidong 3-Cylinder | Yanmar 3-Cylinder | Laidong 3-Cylinder |
Bucket Capacity | 0.045m³ | 0.1 m³ | 0.045 m³ | 0.06 m³ |
Max. Digging Radius | 3560 mm | 4060 mm | 3560 mm | 3860 mm |
Max. Digging Depth | 2150 mm | 1800 mm | 2150 mm | 2050 mm |
Max. Digging Height | 3275 mm | 2900 mm | 3275 mm | 3365 mm |
Max. Dumping Height | 2310 mm | 2200 mm | 2310 mm | 2385 mm |
Overall Width | 1050 mm | 1300 mm | 1050 mm | 1050 mm |
Model | VTW-20NY | VTW-25 | VTW-30 | VTW-35 |
Operating Weight | 2,000 kg | 2,500 kg | 3,000 kg | 3,500 kg |
Rated Power | 10 kw (13.6 hp) | 22.1 kw (30 hp) | 22 kw (30 hp) | 34 kw (46 hp) |
Engine | Yanmar 3-Cylinder | Changchai 3-Cylinder | Changchai 3-Cylinder | Changchai 4-Cylinder |
Bucket Capacity | 0.06 m³ | 0.06 m³ | 0.1 m³ | 0.26 m³ |
Max. Digging Radius | 3660 mm | 3860 mm | 3860 mm | 3860 mm |
Max. Digging Depth | 2250 mm | 2500 mm | 2500 mm | 2545 mm |
Max. Digging Height | 3375 mm | 3650 mm | 3900 mm | 4450 mm |
Max. Dumping Height | 2410 mm | 2265 mm | 2600 mm | 3050 mm |
Overall Width | 980 - 1300 mm | 1200 mm | 1400 mm | 1600 mm |
1. Excavators with compact dimensions can easily drive through narrow passages and doors.
2. Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
