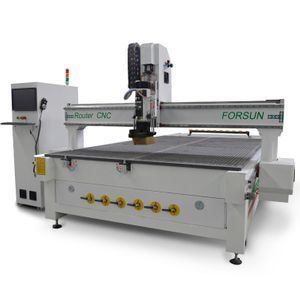

Best sales 1325 metal milling cnc router aluminum cutting machines for wood engraving cabinet door

Supplier: Jinan Forsun CNC Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms. Linda Wu
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	white(any color u want);	After-sales Service Provided:	Engineers available to service machinery overseas;
controller:	NC Studio PC Controller;	Place of Origin:	Shandong China;
Power(W):	9.0KW;	Applicable Industries:	Machinery Repair Shops,Retail,Advertising Company,furniture industry;
Warranty:	1.5 years;	Brand Name:	Forsun;
Certification:	CE,TUV;	Packaging Detail:	wooden box or as your requirement;
Condition:	New;	Drive and Motor:	Delta servo motors and drivers;
Software:	Artcam ,Type3,UCANCAM;	Transmission:	XY-axis:rack and gear Z-axis:ball screw;
Spindle power:	9.0KW ATC air cooling spindle;	Port:	QINGDAO, CHINA;
Dimension(LWH):	317019201850mm;	Supply Ability:	2000 Set/Sets per Year CNC Router machine;
CNC or Not:	CNC;	After-sales Service Provided:	Field installation, commissioning and training;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Item:	cnc cutting router machine;
Working area:	13002500200mm;	Voltage:	AC380V/50HZ, 3PH;
Weight:	1800KG;	Inverter:	11KW Delta Inverter;

Best sales 1325 metal milling cnc router aluminum cutting machines for wood engraving cabinet door

Features

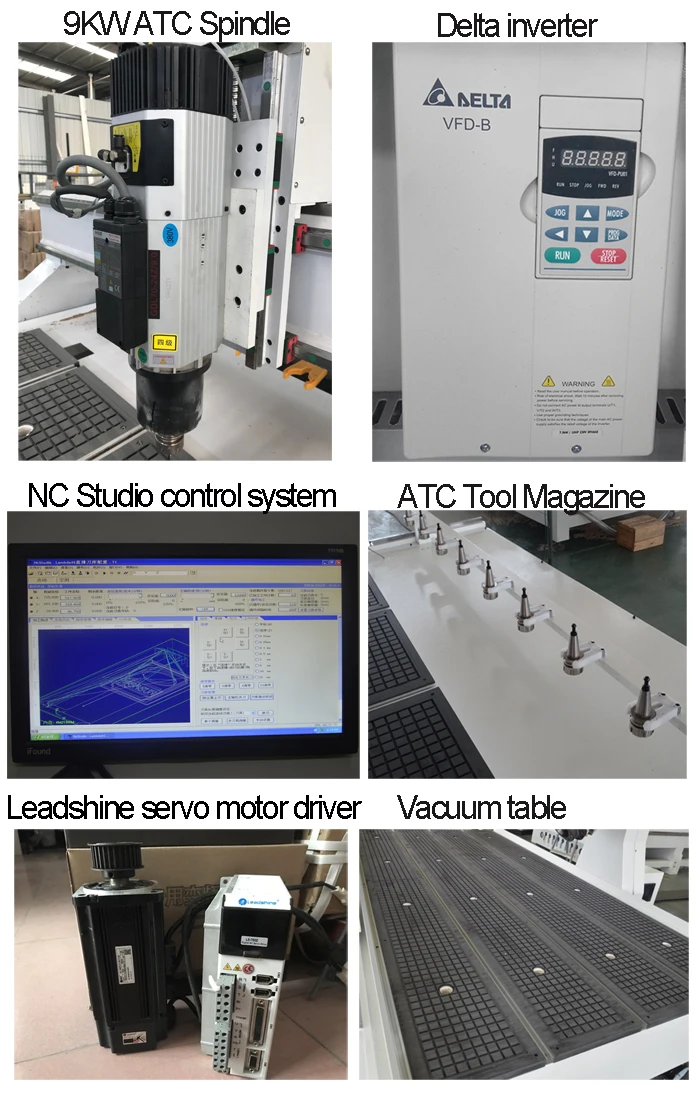

What is the standard configuration of ATC CNC Router?

Ø Effective working area: 1300*2500mm*200mm

Ø 9kw ATC air cooling spindle

Ø 11kw Taiwan Delta inverter

Ø NC Studio PC controller system

Ø Leadshine servo motor and driver

Ø Line ATC with 10 positions

Ø Vacuum & T-slot working table

Ø Taiwan TBI Ball Screw,Helical Rack and Pinion

Advantages

What is the advantages of our cnc wood router?

Spindle	ATC Air Cooling Spindle Spindle speed: 0-24000RPM.
Inverter	Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control.
Motor	Leadshine servo motor. high working efficiency and stable running promised
Control system	NC Studio PC Controller Operate machine by computer,is easy to check each path of the work,easy to control
Working table	T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.
Tool magazine	Line ATC with 10 positions Easy to operate and maintence

What is the technical Data of CNC Woodworking Machine?

Technical Data
NO	Description	Parameter
1	Positioning Accuracy	±0.03/300mm
2	Max. Rapid Travel Rate	70000mm/min
3	Max. Working Speed	35000mm/min
4	Spindle Speed	0-24000RPM
5	Command Language	G Code
6	Flash Memory	512M
7	Collet	ER32
8	X,Y Resolution	<0.03mm
9	Running Environment Temperature	0 - 45 Centigrade
10	Relative Humidity	30% - 75%
11	Packing Size	402022802100mm
12	N.W.	2000KG
13	G.W.	2200KG

Benefits

1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.

2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.

3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards,

artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum

Packaging & Shipping

What is the packing of ATC Cnc Router?

Our Services

What is the services of our cnc router machine?

Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc

Why choose us CNC Router machine??

Customer visit

Customer visit of our cnc router:

FAQ

FAQ of our cnc cutter:

1) This is the first time I use this kind of machine, is it easy operate?

There are guide video that show how to use machine and english instruction book send to you with machine.

If there is still have any question, we will provide free professinal guide for you until you could use machine well.

2) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

3) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.

Relative Products

Relative Products of CNC Router:

Nesting ATC CNC Router	4 Axis CNC Router	Standard CNC Router
