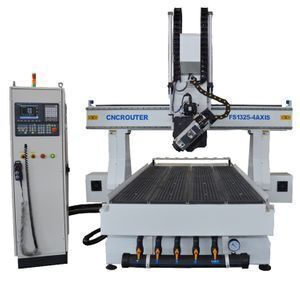

4 axis cnc wood carving machine cnc routers,cnc router sign making for wood door
-
Supplier: Jinan Forsun CNC Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Ms. Linda Wu -
Price: $2500.00 /set -
Min. Order: 1 set
| Packaging Detail: | wooden box or as your requirment; | Single package size: | 35X22X20 cm; |
| Condition: | New; | Marketing Type: | New Product 2020; |
| Spindle Motor Power(kW): | 9; | Selling Units: | Single item; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Warranty of core components: | 1.5 years; |
| working area: | 1300*2500*400mm; | Package Preview: | ; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Weight (KG): | 2500; |
| Range of Spindle Speed(r.p.m): | 1 - 24000; | Weight: | 2600kg; |
| Local Service Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan; | Spindle Speed: | 0-24000RPM; |
| Machine Type: | CNC Router; | Video outgoing-inspection: | Provided; |
| Control System Brand: | Syntec; | Place of Origin: | Shandong China; |
| Single gross weight: | 60.0 KG; | Dimension(L*W*H): | 3050*3700*1800mm; |
| ATC or not: | ATC with 8 positions; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Advertising Company; |
| Travel (X Axis)(mm): | 1300; | Travel (Y Axis)(mm): | 2500; |
| Showroom Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan,Malaysia,Australia; | CNC or Not: | CNC; |
| Key Selling Points: | Easy to Operate; | No. of Spindles: | Single; |
| Repeatability (X/Y/Z) (mm): | 0.03; | Core Components: | Bearing,Motor,Pump,Gear,PLC,Pressure vessel,Engine,Gearbox; |
| Warranty: | 18 months; | Voltage: | 380V/3ph/50 HZ; |
| Brand Name: | Forsun; | Servo system: | YASKAWA servo system; |
| Machinery Test Report: | Provided; | Working Table Size(mm): | 1300×2500; |
| Rapid speed: | 60M/min; | Positioning Accuracy (mm): | 0.03; |
| Item: | 4 axis cnc router; | Power (kW): | 12; |
| Vacuum Pump: | 5.5KW; | Certification: | CE,TUV; |
| Control System: | Syntec control system; |
4 axis cnc wood carving machine cnc routers,cnc router sign making for wood door
What is the Standard Configuration of 4 Axis CNC Router?
1.Working size:1300*2500*400mm,C axis:+180°
2.Taiwan SYNTEC control system
3.Italy HSD 9.0KW air cooling spindle
4.Rotate head for spindle rotary
5.Japan YASKAWA servo driver and motor
6.Taiwan HIWIN linear guide
7.Helical rack and pinion for X,Y,TBI ball screw for Z axis
8.Japan Shimpo reducer for X,Y Axis
9.T slot vacuum table
10.Working voltage:380V,3PH/220V,3PH 50HZ/60HZ
What is the Spare parts of 4 Axis CNC Cutting Machine?
What is the Technical data of wood cnc router?
Technical Data | ||
NO | Description | Parameter |
1 | Positioning Accuracy | ±0.03/300mm |
2 | Max. Rapid Travel Rate | 80000mm/min |
3 | Max. Working Speed | 45000mm/min |
4 | Spindle Speed | 0-24000RPM |
5 | Command Language | G Code |
6 | Flash Memory | 512M |
7 | Collet | ER32 |
8 | X,Y Resolution | <0.03mm |
9 | Running Environment Temperature | 0 - 45 Centigrade |
10 | Relative Humidity | 30% - 75% |
11 | Packing Size | 3720*2280*2100mm |
12 | N.W. | 2500KG |
13 | G.W. | 2700KG |
What is the advantage of wood router 4 axis cnc?
| 1.Controller | Syntec controller system 1.With separate control board,easy and convient to operate. 2.More than 20 years experience on cnc,with mature technology |
| 2.Spindle | Italy 9.0kw Spindle 1.Change tool automatically,save time and labor. 2.Strong power and long lifetime.the rotate speed max to 24000rpm |
| 3.Rotate head | Rotate head 1.Make spindle rotate at C axis to 180°,suitable for side drilling and cutting |
| 4.Servo system | Japan YASKAWA Servo driver and motor 1.With strong power and high precision |
| 5.Reducer | Japan Shimpo Reducer 1.The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable |
| 6.Tool sensor | Auto tool Calibration 1.Promise the working precision for you. |
1) Mold: wood, wax, wood, gypsum, foams, wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of the car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE, and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals such as copper, aluminum plate engraving and milling process.
What is the Packing details of 4 axis woodworking machinery?
How to Machining and quality test of CNC Router?
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door.
Why choose us?
What are the Services of our CNC router machine?
Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare parts for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc
ATC cnc router
4 axis cnc router
5 axis cnc router
economical cnc router
plasma cutting machine
| name | Tracy CNC |
| whatsapp/phone/wechat | 0086-15853185917 |
| skype | forsun.sales3 |
| email adress | sales3(a)forsungroup.com |
| Fax/Tel | 0086-531-88693181 |
| Website | www.forsungroup.com |
