Stroke (X-axis) (mm): | 1300 mm | place of origin; place of origin: | Shandong China |
Packaging Details: | wooden case or as required | spread: | X, Y axis: helical rack; Z axis: TBI ball screw |
Certification: | Chief Executive | weight: | 1800KG |
brand: | Fusheng | Core Components Warranty: | 1.5 years |
driver: | Yaskawa Drive | Single package size: | 35X22X18 cm |
Dimensions (L*W*H): | 3250*2250*2000mm | Main selling point: | high rigidity |
Repeatability (X/Y/Z) (mm): | 200 mm | Sales unit: | single product |
Type of machine: | CNC router | Mechanical test report: | if |
Table size (mm): | 1300×2500 | Spindle speed: | 0-24000RPM |
Gross weight per piece: | 60.000 kg | Core components: | Bearings, Motors, Pumps, Gears, PLCs, Pressure Vessels, Engines, Gearboxes |
Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia | Control system brand: | NC Studio,Siemens,Syntec,Mach3,DSP,RichAuto |
product name: | 4 axis automatic tool changer cnc router woodworking milling machine | CNC or not: | CNC |
Spindle: | 9KW ATC Spindle | Travel (Y-axis) (mm): | 2500 mm |
Warranty: | 1.5 years | Weight (kg): | 1500 |
Delivery Details: | Within 30 days of receipt of payment | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
Positioning accuracy (mm): | 0.03 mm | Local service location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina , South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan |
Marketing Type: | New Products 2020 | Packaging Preview: | |
Number of spindles: | single | motor: | Yaskawa from Japan |
Health status: | new | Video external inspection: | if |
Applicable industries: | Hotels, Apparel Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Farms, Households, Retail, Printing Stores, Construction Works, Energy and Mining, Advertising Agencies | Packaging Details: | wooden case or as required |
Controller: | New Tektronix | Spindle speed range (rpm): | 1 - 24000 rpm |
Voltage: | 220V /380V |

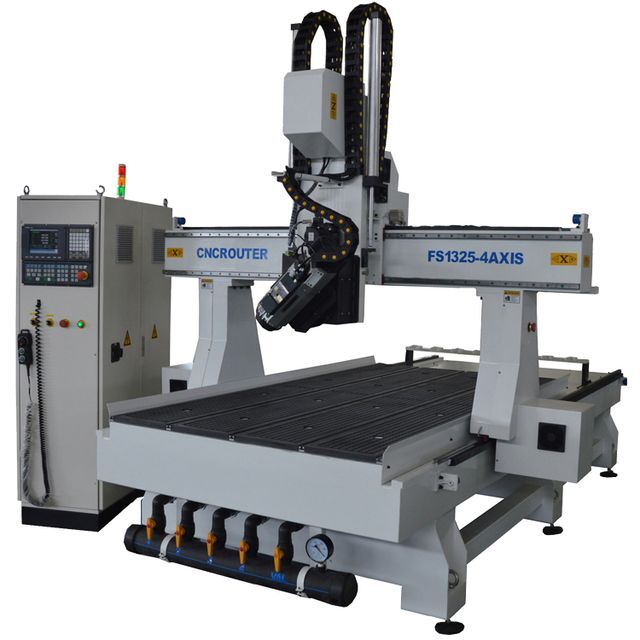

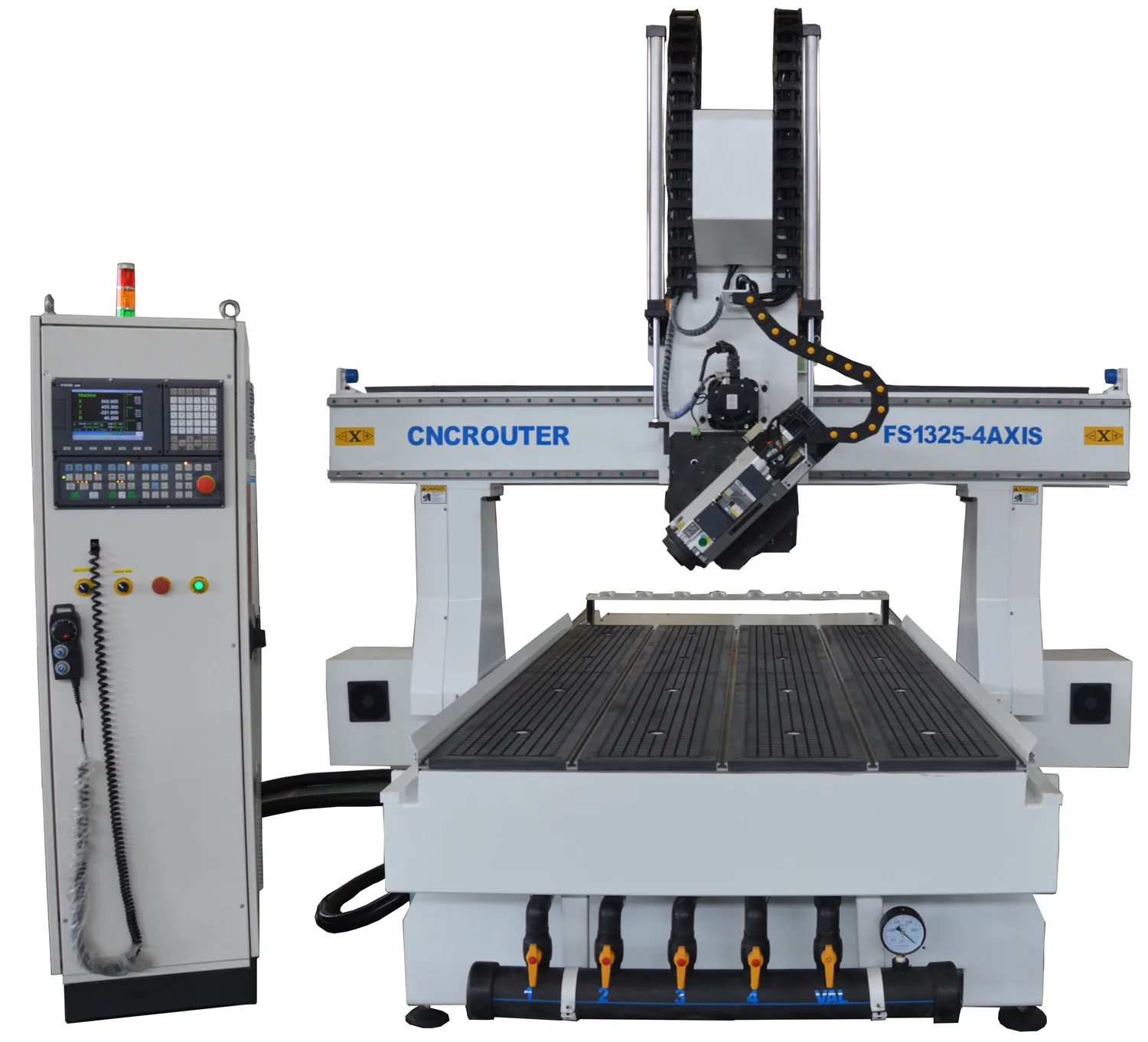

4-axis CNC router standard configuration:
1. Working size: 1300*2500*400mm, C axis: +180°
2. Taiwan SYNTEC control system
3. Italian HSD 9.0KW air-cooled spindle
4. Rotary head for spindle rotation
5. Japan Yaskawa servo driver and motor
6. Taiwan Shangyin Linear Guide
7. X, Y, TBI helical rack and pinion Z axis ball screw
8. Japan Xinbao X, Y axis reducer
9.T slot vacuum table
10. Working voltage: 380V, 3PH/220V, 3PH 50HZ/60HZ

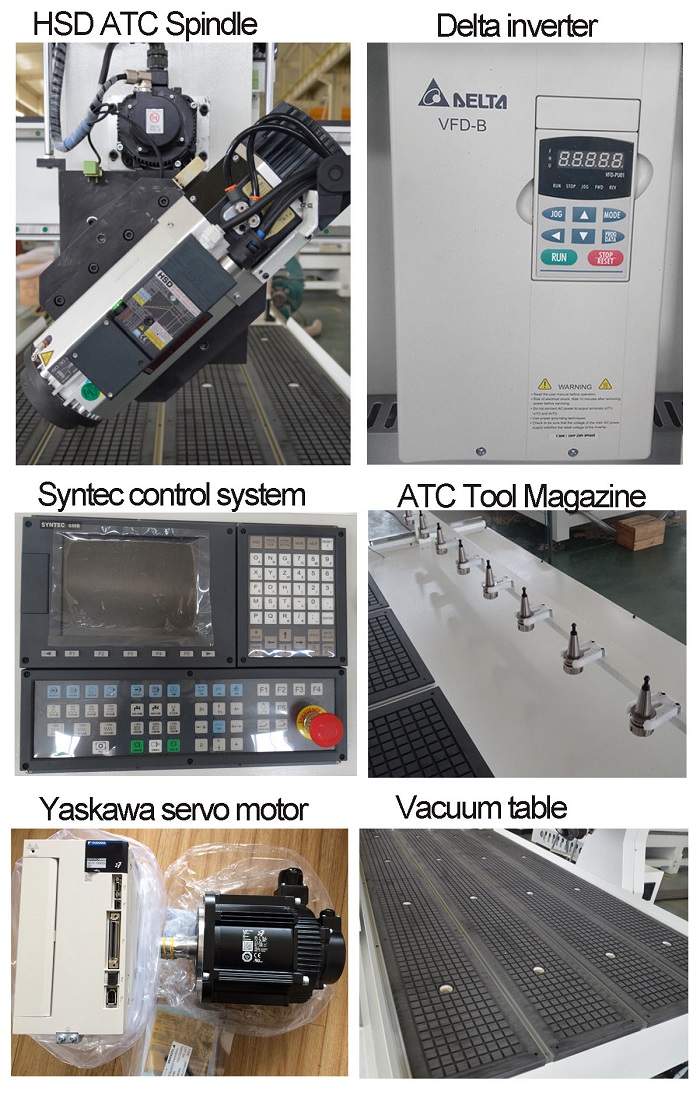

Four-axis CNC cutting machine spare parts:
Advantages of cnc router wood machine
1. Controller |
Syntec Controller System 1. Independent control panel, easy to operate. 2. More than 20 years CNC experience, mature technology |
2. Spindle |
Italy 9.0kw spindle 1. Automatic tool change, saving time and effort. 2. Strong power and long service life. The maximum speed can reach 24000rpm |
3. Rotate the head |
Rotate the head 1. Make the spindle rotate 180° on the C axis, suitable for side drilling and cutting |
4. Servo system |
Yaskawa servo driver and motor 1. Strong power and high precision |
5. Reducer |
Japan Xinbao reducer 1. The world's first reducer brand. Used to replace traditional racks and belts, making the machine stronger and more stable |
6. Tool sensor |
Automatic tool calibration 1. Promise work accuracy for you. |
Timber CNC router technical data:
Technical data |
||
Do not |
describe |
scope |
1 |
positioning accuracy |
±0.03/300mm |
2 |
maximum. fast travel speed |
80000mm/min |
3 |
maximum. Speed of work |
45000mm/min |
4 |
Spindle speed |
0-24000RPM |
5 |
command language |
G code |
6 |
flash |
512M |
7 |
collet |
ER32 |
8 |
X,Y resolution |
<0.03mm |
9 |
Operating ambient temperature |
0 - 45 degrees Celsius |
10 |
Relative humidity |
30% - 75% |
11 |
Package dimensions |
3720*2280*2100mm |
12 |
northwest |
2500KG |
13 |
GW |
2700KG |
Advantages of our 4-axis CNC router woodworking machines
1) Mould: wood, wax, wood, plaster, foam, wax
2) Furniture: wooden doors, cabinets, boards, office and wooden furniture, tables, chairs, doors and windows.
3) Wood products: speakers, game cabinets, computer desks, sewing machine desks, instruments and meters.
4) Sheet metal processing: insulation parts, plastic chemical composition, PCB, automobile inner body, bowling ball
Tracks, stairs, anti-soft board, epoxy resin, ABS, PP, PE and other carbon hybrid compounds.
5) Decoration industry: engraving and milling of acrylic, PVC, MDF, artificial stone, plexiglass, plastic and soft metals such as copper and aluminum plates.
Four axis woodworking machinery packaging details:
About our economical CNC milling machines:
Forsun is the world's leading manufacturer of CNC routers, plasma arc cutters and laser cutters. All machines are CE certified. During the manufacturing process, the quality processes used are directly reflected in the excellent products delivered to your doorstep.
Why choose us?
Our CNC Router Machine Services
ensure:
The whole machine is guaranteed for 1.5 years. During 18 months of normal use and maintenance, if there is a problem with the machine, you will receive spare parts free of charge. Within 18 months, you will get spare parts at cost. You also get lifetime technical support and service.
technical support:
1. 24/7 technical support via phone, email or WhatsApp/Skype
2. Friendly English version of the manual and operation DVD
3. Engineers can repair machinery overseas
After-sale service:
Normal machines are properly adjusted before shipping. You will be able to use the machine immediately after receiving it.
In addition, you will be able to get free training advice on our machines at our factory. You will also get free advice and consultation, technical support and services via email/WhatsApp/phone etc.

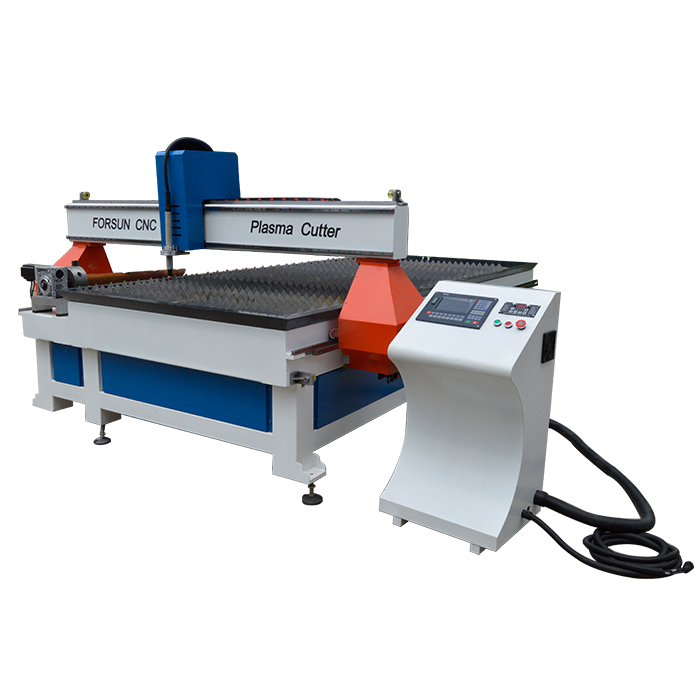

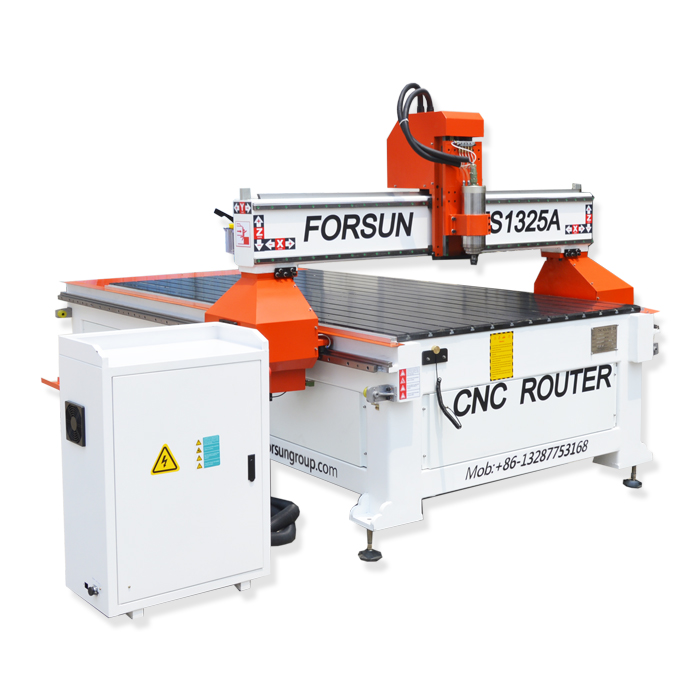

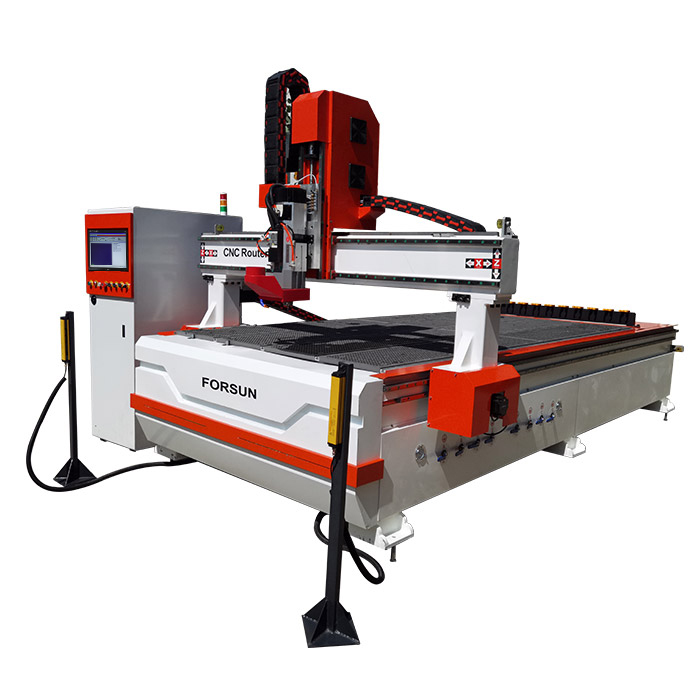

Economical CNC Router | ATC CNC Router Machine | Plasma cutting machine |
