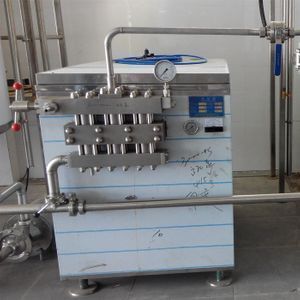

Stainless steel high pressure homogenizer for milk/juice/cosmetic/chemical
-
Supplier: Wuxi Rockaway Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Sophia -
Price: $1500.00 /set -
Min. Order: 1 set
| Port: | Ningbo/Shanghai; | Dimension(L*W*H): | 920*500*950mm; |
| Capacity: | 500-5000L; | Warranty: | 1 Year; |
| Supply Ability: | 20 Set/Sets per Month; | Processing Types: | Milk; |
| Condition: | New; | Payment Terms: | L/C,T/T,Western Union; |
| Name: | Milk homogenizer; | Material: | SUS304; |
| Power(W): | 5.5-37KW; | Weight: | 900kg; |
| Place of Origin: | Zhejiang China; | Application: | Liquid with suspended solids; |
| Processing: | Homogenizer; | Max pressure: | 25Mpa/40Mpa/60Mpa; |
| Voltage: | 380V/415V/440V; | Usage: | Milk,juice; |
| After-sales Service Provided: | Field installation, commissioning and training; | Packaging Detail: | Plywood case.; |
| Brand Name: | Rockaway; |
Stainless steel high pressure homogenizer for milk/juice/cosmetic/chemical
High pressure Homogenizer is a special equipment of the liquid material thinning and high pressure transportation. It is composed of frame, wheel box, pump body, pressure meter, homogenizer and so on.
High pressure homogenizer pump series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump is also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc.)
Do not use the product to handling the suspending liquid or the high viscosity liquid.(viscosity less than 0.2 Pa.S)
The Milk Homogenizer is widely used in the production, scientific research and technical development of alot of areas, such as: food, dairy food, drink, pharmacy, chemical industry, biological technology and so on.
| GJJ0.5-25 | GJJ1-25 | GJJ2-25 | GJJ2.5-25 | GJJ4-25 |
Rated pressure (Mpa) | 25 | 25 | 25 | 25 | 25 |
Rated flow (m3/h) | 0.5 | 1 | 2 | 2.5 | 4 |
Pumped medium | Liquid milk, juice, syrup, soy milk, oil etc. | ||||
Medium temperature | ≤85℃ | ||||
Feeding pipe diameter (mm) | 25 | 25 | 32 | 32 | 32 |
Discharge pipe diameter (mm) | 15 | 15 | 20 | 20 | 25 |
Feeding requirement | The level of liquid should be higher than feed inlet. | ||||
Power of motor (kw) | 5.5 | 7.5 | 15 | 18.5 | 37 |
Dimension L*W*H (m) | 0.9x0.8x1.1 | 1.1x0.9x1.2 | 1.2×1×1.4 | 1.2×1×1.4 | 1.2×1×1.5 |
Weight (kg) | 0.6 | 0.8 | 1.2 | 1.25 | 1.6 |
-
