Colour Depth: | 32 Bit; | Button life: | 8000,000 times; |
Interface Type: | wireless; | Selling Units: | Single item; |
Single gross weight: | 0.45 KG; | Frequency: | 2.4G; |
Single package size: | 18X10X12 cm; | Optical Resolution: | 3mil; |
Feature: | Wireless Barcode Scanner Portable Laser Barcode Reader; | Name: | 1D handheld Bar Code Scanner; |
Scan Element Type: | CIS; | Working time: | 7 to 10 days; |
Place of Origin: | Guangdong China; | Products Status: | Stock; |
Type: | Barcode Scanner; | Max Paper Size: | 30CM; |
CPU: | ARM 32-bit; | Warranty: | At least 24 months; |
Scan Speed: | 300scans/sec; | Package Preview: | https://sc01.alicdn.com/kf/HTB1KWC4Kb1YBuNjSszeq6yblFXao.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1hmV1B3KTBuNkSne1q6yJoXXa6.jpg_640x640.jpg; |
Drop test: | 1.5m fall to concrete; | Package Type: | Standard list: Scanner*1, Cable *1, Receiver*1, Manual *1, Setting card *1, Leather Box *1; |
Light source: | 650nm LD; | Brand Name: | YHDAA; |
Storage: | 100000 barcode; |
Wireless Barcode Scanner Laser Barcode Reader 1D 2D QR Handheld Bar Code Scanner
For bulk orders, please contact us for more favorable price

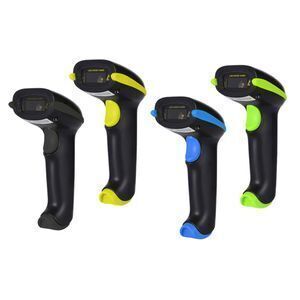

* Color:Yellow/ Black/ Green/Blue Optional.
* 2.4G Wireless+Wired two Mode.
* 32Bit CPU, Super decoding ability.
* With mini USB receiver, plug and play.
* Ergonomic design, comfortable to hold.
* Read barcode as small as 3 mill.
* Support over twenty different countries' keyboard layout.
* Auto sleep supported and easily waken up with a click of one button.
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Product Specification: YHD-5100 (1D 2.4G) 1D Wired&Wireless Barcode Scanner | ||||
Scanner parameters: | ||||
Transmission mode:2.4G Wireless/Wired | Storage:100000 barcodes | |||
Distance:100m/1.5m | Material: ABS+PC | |||
Working current:3.5Vx40mA | Standby current :18uA-5mA | |||
Working time :3 to 10 days | Charging power:5V-400mA | |||
Scanning type :bi-directional | Battery: 3.7V-1400mAh | |||
Scanning width :30cm | Light source:650±20nm VLD | |||
Printing Contract :≥25% | Indication:Buzzer & LED | |||
Depth of Field | 3mil | 2mm-100mm | CPU:ARM 32-bit Cortex Resolution :3mil Decoding speed:300scans/sec BER :1/20million | |
10mil | 2mm-350mm | |||
15mil | 5mm-500mm | |||
30mil | 10mm-800mm | |||
Trigger Mode:Button,Continuous,Auto-Induction(Optional) | ||||
Scanning angle:Angle of rotation±30°,inclination± 45°,declination ± 60° | ||||
Anti-interference:No influence working under strong light and sunshine | ||||
Decode Capability:UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,etc. (optional)GS1 Databar,Code32 | ||||
Button life :500,000 times | laser life:12000 hours | |||
Drop test :2m | Interface:USB,USB-COM | |||
Certificate :CE,FCC,RoHS,IP54 |
