Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface

Supplier: Shenzhen Yuhengda Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Speshow YHDAA
Price: $11.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Trigger Mode:	Continuous,Auto-Induction;	Place of Origin:	Guangdong China;
Interface Type:	USB,RS232;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
Optical Resolution:	4mil;	Resolution Ratio:	30 million pixels;
Price:	for module only, not include test board and wire fee;	Scan Element Type:	CMOS;
Port:	ShenZhen,GuangZhou,HongKong;	Colour Depth:	32 Bit;
Scan Speed:	300 Scans/sec;	Interface:	RS232,USB;
Imaging Sensor:	CMOS;	Packaging Detail:	Standard list: scanner module * 1, cable * 1, manual * 1, leather box * 1 . Single package size: 1239042mm Single gross weight: 0.05kg;
Certificate:	CE,FCC,RoHS,IP54;	Indication:	Buzzer & LED;
Type:	Barcode Scanner;	Max Paper Size:	A4 Size;
Supply Ability:	30000 Piece/Pieces per Month 1D 2D Barcode Scanner Module;	Brand Name:	YHDAA;
Products Status:	Stock;	Resolution:	4mil;
Optical Source:	620nm Visible red light diode;	Drop test:	1.5m fall to concrete;

Embedded 1D 2D Barcode Scanner Reader Module CMOS Bar Code Scanner Module with RS232/USB Interface

Features

1. CMOS image sensor,reads 1D & 2D barcodes.

2. No driver, plug and play.

3. Supporting the RS232 and USB interface.

4. Wide angle lens design, scans a large area.

5. Super scanning and decoding ability, can read incomplete and fuzzy codes.

6. Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

7. Mini size and lightweight easy to be integrated into various solutions such as kiosks, flow line,medical equipment,ticketing machines, PDA,vending machines, and many more.

8. Can be customized according to customer demand.

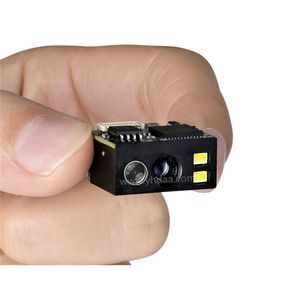

Product Specification	YHD-M800 Mini CMOS Barcode Scanner Module
Imaging Sensor	CMOS
Optical Source	620nm Visible red light diode
Trigger Mode	Continuous,Auto-Induction
Indication	Buzzer & LED
Resolution Ratio	30 million pixels
Interface	RS232,USB,TTL,Micro USB
Resolution	4mil
Minimum Contrast	≥ 30%
Decoding Capability	1D: CODE128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5 ITF14 MATRIX 25 Code39 Codabar Code93 UCC/EAN-128 Code11 ISBN INDUSTRIAL25 STANDARD25 Plessey etc 2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417,etc
Max.Power	1060mw
Working Voltage	5V
Current	Max. : 212mA Working : 156mA~212mA Stand-by : 156mA
Temperature	Storage: -40°C ~ 60°C Working: -20°C ~ 50°C
Relative Humidity	5 ~ 95%
Weight	3g (scanner without cable and development board)
Weight	11g(scanner with cable and development board)
Dimensions	211510 mm (scanner without cable and development board)
Dimensions	443311 mm (scanner with cable and development board)
Drop test	1.5m fall to concrete
Certificate	CE,FCC,RoHS,IP54

OEM Service

Company information

Q1. What's the shipping way ?
A: There are DHL,Fedex,TNT, UPS.
We also can ship the goods by your shipping account or other express agent you provided.
Q2. What's the payment way ?
A: We accept Alibaba online orders, PayPal ,T /T, LC, Western Union , MoneyGram.
Q3. How about your product warranty ?
A: Our officially promised warranty time is two years after delivery.
Q4. How can I get the goods ?
A: We will choost the fast , safe , and cost saving way to send goods to you.
With well packed carton by foam and plastic film to advoid goods damage.
Q5. If I come across any problem during product using ,
where I can get the support ?
A: We support you technically 24h/7.please send all your questions to us.
and we will give the professional,patient,expliantion by email or call in time.
