QR Code Scanner 2020 New Design Desktop Barcode Scanner China Manufacturer OEM ODM

Click here to contact

Product details

Size:	110mm53mm120mm;	Max Paper Size:	A4 Size;
Scanning speed:	2200 times/s;	Colour Depth:	32 Bit;
Certificate:	CE FCC ROHS IP54;	Place of Origin:	Guangdong China;
Packaging Detail:	* Standard List: Desktop Scanner1, Cable 1, Manual 1, Box 1. * Single Package Size: 18312083mm * Single Gross Weight: 0.45kg * 30pcs/CTN Carton Size: 438380380mm * 30pcs/CTN Carton G.W.:15Kg, N.W:13.5Kg;	Interface Type:	USB,COM;
Certification:	FCC,ce,RoHS;	Warranty(Year):	2-Year;
Type:	Barcode Scanner;	Single package size:	18.3X12X8.3 cm;
Brand Name:	YHDAA;	Optical Resolution:	4mil;
Single gross weight:	0.45 KG;	Optical resolution:	640*480 ,120 fps;
Trigger Mode:	Handheld,Continuous,Auto-Induction;	Warranty:	2years;
Resolution:	4mil;	Error rate:	≤1/2,000,000;
Product Specification:	YHD-9200 2D Desktop Barcode Scanner;	Scan Speed:	220scan/sec;
After-sales Service:	Return and Replacement,Others,Repair,Onsite Training and Inspection,Call Center and on-line Technical Support;	Scan Element Type:	CMOS;
Selling Units:	Single item;	Products Status:	Stock;
Decoding Capability:	1D QR 2D;	Package Preview:	;

QR Code Scanner 2020 New Design Desktop Barcode Scanner China Manufacturer OEM ODM

Features

* Color: Black-Silver/ Black-Blue/ White-Blue .

* Compatible System - Windows, Mac OS, POS Cash Register, Linux.

* Desktop Hand-Free design free your hand and improve the working efficiency.

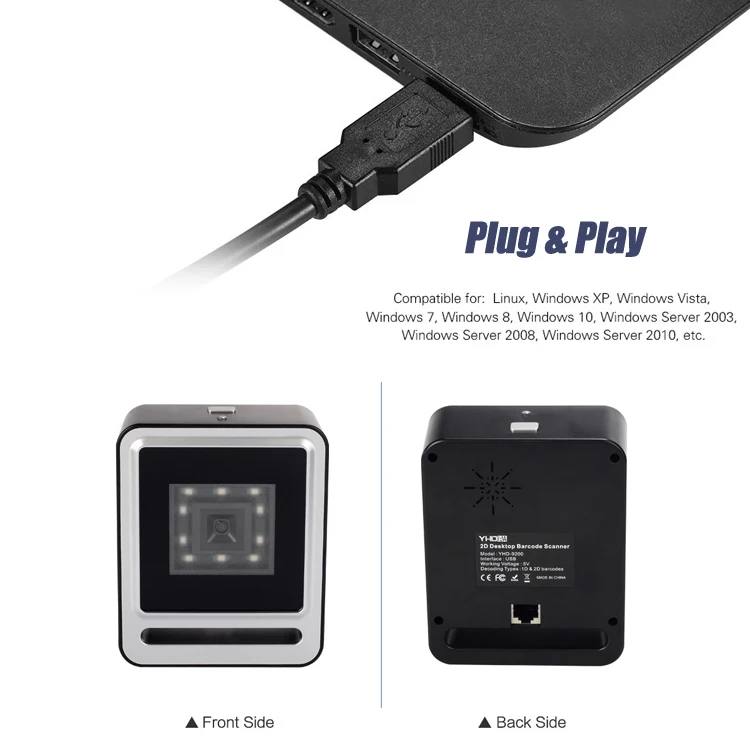

* Plug and play, no need for any driver or software. Easy installation with USB cable.

* Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily.

* Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.

* Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode.

* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

Product Description

Product Specification: YHD-92002D Desktop Barcode Scanner
Scanner parameters:
Optical resolution	640*480 ,120 fps
Lighting source	red LED supplement
Scanning speed	2200 times/s
Scanning angle	rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees
Sweeping barcode type	paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast	20%
Resolution	4mil
Error rate	≤1/2,000,000
Interface type	USB:HID Keyboard(default mode), USB virtual serial port
IP level	up to IP54 standard
Trigger Mode	Handheld,Continuous,Auto-Induction
Prompt mode	Buzzer, LED
Decoding Capability	1D:Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13,EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412
Decoding Capability	2D:QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.
Depth of field	13mil UPC (20-120mm) 5mil Code128 (20-60mm) 10mil Code128 (20-100mm) 20mil QR (20-140mm)
Electrical parameters
Electric voltage	5V DC
Working current	390mA(Max.),220mA(Typical)
Optical safety certification	IEC42471,IEC60950
Electromagnetic compatibility	EN55022,EN55024
Mechanical parameters
Size	110mm53mm120mm
Cable length	2m
Weight	300g
Enviromental parameter
Working temperature	-20℃~60℃
Storage temperature	-40℃~85℃
Working humidity	5%~95%
Drop test	1.5m
