Brand Name: | YHDAA; | Working time: | 3 to 10 days; |
Single package size: | 18X10X12 cm; | Standby time: | 60 days; |
Battery capacity: | 2000 mAh; | Packaging Detail: | * Standard list: Scanner*1, Cable *1, Receiver*1, Manual *1, Box *1 * Single package size: 167*80*100mm * Single gross weight: 0.42kg * 50pcs/CTN Carton Size: 535*420*350mm * 50pcs/CTN Carton G.W.:14Kg, N.W:12.5Kg; |
Package Preview: | ; | Decode Capability: | 1D QR 2D; |
Type: | Barcode Scanner; | Colour Depth: | 32 Bit; |
Optical Resolution: | 4mil; | Distance: | ≤100m; |
Scan Speed: | 500scan/sec; | Warranty(Year): | 2-Year; |
Single gross weight: | 0.42 KG; | Max Paper Size: | A4 Size; |
Scan Element Type: | CMOS; | Memory: | 100,000 barcodes; |
After-sales Service: | Return and Replacement,Others,Repair,Onsite Training and Inspection,Call Center and on-line Technical Support; | Certification: | FCC,ce,RoHS; |
Place of Origin: | Guangdong China; | Products Status: | Stock; |
Interface Type: | usb,COM; | Trigger Mode: | Button, Continuous, Auto-Induction; |
TYPE: | 2.4G&Wired; | Certificate: | CE,FCC,RoHS ,IP54; |
Product Specification: | YHD-6200W 2D 2.4G Wireless Barcode Scanner; | Selling Units: | Single item; |
Long Range QR Code Scanner Made In China QR Reader Inventory Barcode Scanner
Which One To Choose? | |||||
Picture | |||||
Model | YHD-6200D | YHD-6200DW | YHD-6200DB | YHD-6200D+ | YHD-6200DW+ |
Plug & Play | √ | √ | √ | √ | √ |
Barcode Types | 1D&2D | 1D&2D | 1D&2D | 1D&2D | 1D&2D |
Distance | 1.8m | 100m | 50-100m | 1.8m | 100m |
Screen Scan | √ | √ | √ | √ | √ |
Stand | --- | --- | --- | √ | √ |
Connections | Wired |
Wireless Wired |
Wireless Wired Bluetooth |
Wired |
Wireless Wired |
Scanning Technology |
CMOS | CMOS | CMOS | CMOS | CMOS |
More product parameters and prices please contact us! |

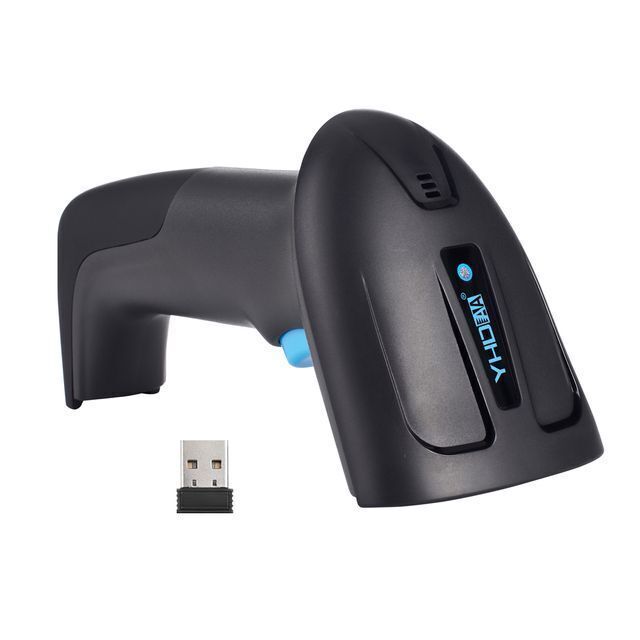

Model: YHD-6200DW 1D 2D QR Wireless Barcode Scanner
* Wireless + Wired USB dual mode.
* Ergonomic design, comfortable to hold.
* Plug and play, work with all POS system.
* Support multi-languages and adding prefix/suffix.
* Excellent decoding ability, fast to scan 1D/2D barcodes on paper/screen.
* Can store 100,000 barcode in offline storage mode, very convenient to use.
* Large capacity battery, with 2000mAh rechargeable battery, 4-5 hours charging time, can be continuously used for a long time.
* Compatible for Mac/Android/Linux/Windows system, drive free, plug & play.
* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Product Specification: YHD-6200DW 2D 2.4G Wireless Barcode Scanner |
|||||
TYPE |
Distance |
Memory |
|||
2.4G&Wired |
≤100m |
100,000 barcodes |
|||
Working current:5V±5%x140mA |
Standby current :30mA |
||||
Battery capacity: 2000 mAh |
Charging power:5V-400mA |
||||
Working time :3 to 10 days |
Standby time :60 days |
||||
Scanner parameters: |
|||||
Light aimer: 624nm LED |
Illumination: 6500K LEDs |
||||
Sensor:640*480 CMOS |
Indication:Buzzer & LED |
||||
Trigger Mode:Button, Continuous, Auto-Induction |
|||||
250LuxDepth of Field |
13mil-EAN13 |
50-250mm |
Resolution :4mil CPU:ARM 32-bit Cortex Printing Contract :>25% Decoding speed:500/sec |
||
4mil-code39 |
60-100mm |
||||
20mil-QR |
40-300mm |
||||
10mil-PDF417 |
40-280mm |
||||
Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60° |
|||||
Anti-interference:0-100000Lux Max |
|||||
Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc. |
|||||
Temperature: -20℃-50℃(Working) -40℃-70℃(Storage) |
|||||
Drop test :2.0m |
Interface:USB |
||||
Certificate :CE,FCC,RoHS ,IP54 |
