Mini Vacuum Purge Vacuum Chamber

Supplier: Labfirst Scientific Instruments (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Alex Huang
Price: $60.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Lid Thickness:	12mm / 0.5";	Certification:	CE;
Voltage:	N/A;	Weight:	2.2 kg;
Applicable Industries:	Vacuum Drying;	Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;
Power(W):	N/A;	Vacuum Gasket Material:	silicone;
Volume:	3.1 L /0.8 gallon;	Condition:	New;
Vacuum Hose:	1 meter length, food-grade silicone;	Vacuum Hose Diameter:	8mm I.D x 14mm O.D;
Place of Origin:	Shanghai China;	Type:	Vacuum Drying Equipment;
Brand Name:	LAB1ST;	Dimension(LWH):	28 x 20 x 22 cm;
Supply Ability:	20 Set/Sets per Month;	Chamber Dimension (D x H):	20 x 22 cm / 7.9 x 8.7";
Payment Terms:	T/T;	Lid Material:	polycarbonate;
Warranty:	2 Years;	Vacuum Gauge:	mechanical, glycerin-filled;
After-sales Service Provided:	Online support;	Port:	shanghai;
Chamber Material:	stainless steel;	Packaging Detail:	Individually packed in card board box, or other packaging upon buyer's request.;
Key Selling Points:	Long Service Life;	Vacuum Gauge Accuracy:	0.5 inHg;

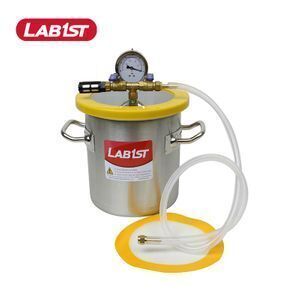

Mini Vacuum Purge Vacuum Chamber

The VC-series vacuum chambers from LAB1ST are economical alternatives to traditional vacuum drying ovens. Together with silicone heating pads or oil/water heating bath, the vacuum chambers are able to gently dry samples without residue, scaling or oxidation. Without heating source, the chambers can also be ideal tool for silicone/resin degassing and vacuum storage.

Product Description

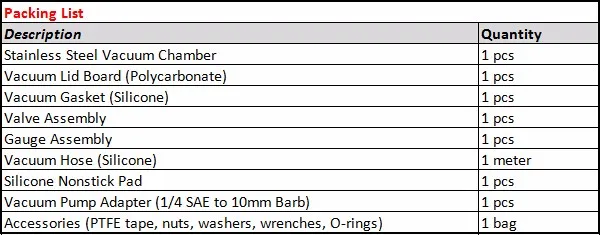

Our vacuum chambers come as a complete kit with stainless steel chamber body, high quality polycarbonate lid, double-sided silicone gasket, glycerin-filled vacuum gauge, vacuum/vent valve assembly and non-stick silicone pad. It can be easily assembled in less than 5 minutes.

Each one of our vacuum chambers go through 2-time 24-hour vacuum leakage tests, to lose no more than 2.5 inHg / 24 hours.

Precaution for wood turning: Stabilizing resin (such as Cactus Juice) can be corrosive to the lid of vacuum chamber, please be cautious and avoid direct contact between lid and resin.

Photo Gallery

Product Features

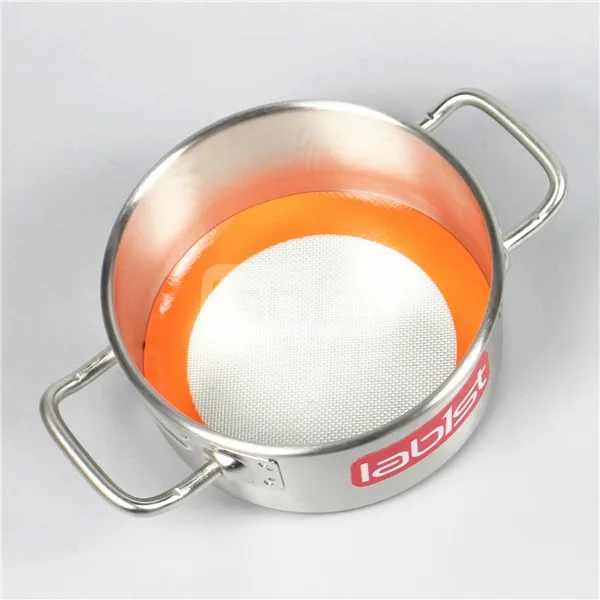

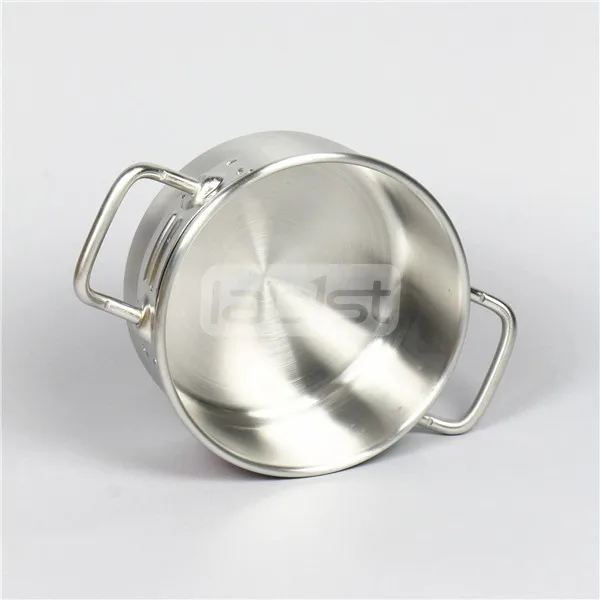

Stainless steel chamber with welded handles for long-term air-tightness performance. (typical through-hole handles might lead to leakage after long-term operation.
Our chamber has a rounded edge at the top, for the protection of silicone gasket.

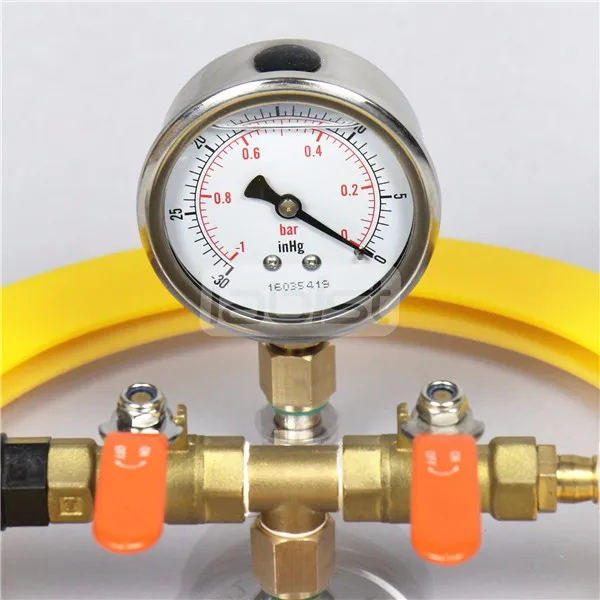

Vacuum gauge is assembled on a separate port, so that the reading remains accurate even while pumping/venting the chamber.
Gauge reading in both inHg and Mpa.
All kits are vacuum tested for 24 hours before packaging. (leakage less than 2.0 inHg at 24 hours)
Two-sided flippable vacuum gasket for better durability and reliability.
The gasket is chemically resistant to butane and other solvents.
1/2" thickness Polycarbonate lid is light-weight, but 30x tougher than Acrylic.
Strong elastic food grade silicone vacuum hose can connect/disconnect easily with the pump/chamber.
50um air filter on the vent valve to reduce air flow and prevent any dust/powder flowing into the chamber.
Easy to install and low-cost to maintain: the chamber can be assembled in 5 minutes.
45 day complimentary warranty and life-long parts support.
All questions will be answered in 12 hours.

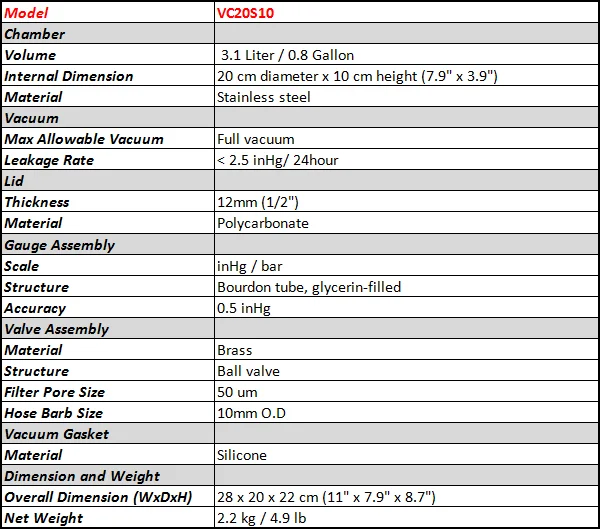

Specifications
