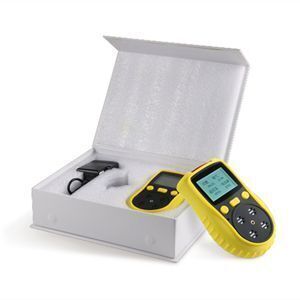

Portable CO2 Carbon Dioxide Gas Analyzer

Click here to contact

Product details

Color:	Yellow, OEM;	Payment Terms:	T/T;
Sampling Method:	Diffusion;	Measure Range:	0-5%VOL,0-10%VOL,0-20%VOL,0-50%VOL,0-100%VOL;
Weight:	300g;	Place of Origin:	Guangdong China;
Detected Gas:	Carbon Dioxide (CO2);	Packing:	Aluminum alloy suitcase;
Charging Method:	AC adapter, USB cable;	Alarm Type:	Sound, light;
Supply Ability:	100 Piece/Pieces per Day;	Size:	1318535mm;
Packaging Detail:	Standard exporting outer carton;	Brand Name:	YuanTe;
Model Number:	YT-1200H-CO2;	Port:	Shenzhen;

Characteristics & Functions

l Employ original imported high-precision sensor.

l Four random gas sensors can be combined freely.

l LCD dot matrix display, support Chinese and English operation.

l The gas concentration unit PPM and mg/m3 can be shifted quickly.

l The battery and voltage can be checked by one press.

l One press to restore factory settings.

l Ultra-high buzzer alarm sound, alarm with sound, light and vibration at the same time.

l Can record 100 sets alarm data, alarm record can be checked on the device.

l Data storage function, can record 100 thousand set data, historical data can be viewed on the device (optional function).

l Rechargeable lithium polymer battery of large capacity, which ensure the device to work

continuously for a long time.

l Strong and upscale alligator clip, convenient to take along during operation.

l Special engineering plastics housing of high intensity, strong and durable, exquisite and comfortable in touching.

Specification

Gas Detected	CO2/Carbon dioxide
Detection principle	Infrared Ray
Sampling Method	Difussion
Measure Range	0-2000,5000,10000,50000ppm
Resolution	1ppm
Precision	≤± 2-3% F.S.
Signal Output	High-speed data transmission by USB, available for data downloading and printing (optional)
Response Time	≤10S	Recovery Time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(F.S/year)	Display	LCD dot matrix display
Operating language	Chinese/English	Gas unit	PPM, mg/m3
Temperature	-20℃~50℃	Humidity	0-95%RH
Explosion-Proof	ExiaⅡCT4	Degree of protection	IP65
Alarm mode	Sound, light, vibration	Operating time	100h
Dimensions	2057532mm	Weight	300g
