Portable Multi gas analyzer, supporting 1-18 gas detection requirements,

Supplier: Shenzhen Yuante Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Cloris Wang
Price: $3000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packing:	Aluminium suitcase;	Payment Terms:	T/T,Western Union;
Brand Name:	YuanTe;	Supply Ability:	100 Piece/Pieces per Day;
Model Number:	SKY8000;	Port:	Shenzhen;
Power:	Lithium polymer battery;	Place of Origin:	Guangdong China;
Temperature:	-40℃~+70℃;	Sampling method:	Pumping suction;
Humidity:	0~95%RH(no condensation);	Product:	Formaldehyde test;
Packaging Detail:	Charger, charing cable, suitcase;	Measure range:	optional and customerized;
Weight:	3700g;	Color:	Yellow;

Specification

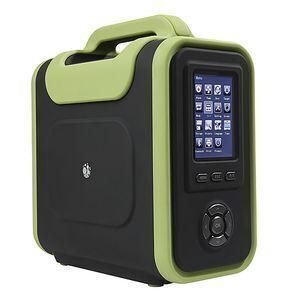

SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components in scientific research, university and complex working environment.

SKY8000 gas analyzer can detect up to 18 gases simultaneously. It can integrate electrochemistry, catalysis, thermal conductivity, infrared, light ion, ultraviolet and other detection principles, focusing on the accuracy of gas detection and user experience.

Accurate and reliable
- Using imported brand sensors, the test results are more reliable and can be certified by third party authorities
- Multiple industrial pump gas sampling, ten grades of pumping flow rate for selection.
- Gas detection flow can be customized according to different testing environments. Each module is equipped with multi-layer filtering device, which can filter oil, water, dust and other impurities efficiently.

Multi-display mode
- Single curve, multi-curve, data and other gas concentration display mode are switchable
- Various gas concentration units can be shifted freely

Comprehensive functions
- Modular internal structure, supporting 1-18 gas detection requirements
- Simple and quick screenshot settings
- Monitor the temperature, humidity, pressure at the same time(Optional)
- Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes are selectable(Optional)
- Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional)
- High temperature, high humidity environment measurement(Optional)

Data logging
- Large capacity quick storage function, storage space can be customized
- An independent SD memory card, historical tested data can be viewed and deleted

Mobile recharging and long operation time
- High capacity of lithium polymer rechargeable battery, super long service life and standby time
- Mini-USB charging interface design with common data cable and mobile power can be charged anytime, anywhere

High quality material
- 3.5-inch hd LCD screen with resolution 320* 480, beautiful and useful menu interface
- Selected aviation wear-resisting material, suitable for various kind of industry environment

Specification

Sensors	Various principle sensors can be combined in any number , up to 18 sensors; Combustible: catalytic combustion principle or infrared principle; oxygen: electrochemical principle or zirconia principle; toxic: electrochemical principle; CO2: infrared principle; VOC: PID photo ion principle; CH4: catalytic combustion principle or infrared principle; He: thermal conductivity Principle, temperature and humidity sensors, pressure sensors (optional) (other principles of the sensor can be customized)
Measure range	0~1,10,100,1000,5000,50000,100000 PPM;0-100mg/L,200mg/L; 0-100%LEL;0-10%,20%,50%,99.999%,100%Vol(Measure range is optional and customerized)
Resolution	0.001 PPM(0-1 PPM);0.01 PPM or 0.001 PPM(0~10 PPM); 0.1 PPM or 0.01 PPM(0~100 PPM);1 PPM or 0.1 PPM(0~1000 PPM); 1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)
Display	Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status
Alarm	Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data storage	Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
Data transmission and download	RS232,RS485 singnal output,USB interface data transmission, with the upper computer software, can download storage, analyze and print data
Print function(Optional)	Optional with internal portable printer or external bluetooth printer
Print content(Optional)	Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.
Charger	Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
Language	Chinese/English
Wireless network (optional)	Bluetooth, Zigbee
Network frequency	2.4G high frequency.
wireless transmission distance	Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m.
