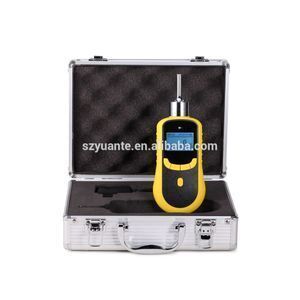

ATEX CE certified Portable O3 Ozone gas meter detector 0.001ppm UK sensors highest precision

Product details
Type:O3 Ozone gas meter detector;Payment Terms:T/T,Western Union;
Port:Shenzhen;Place of Origin:Guangdong China;
Measure range:0-1ppm, 5ppm, 10ppm, 20ppm, 50ppm, 100ppm, 500ppm, 1000ppm, 5000ppm;Packaging Detail:Adapter, USB charging cable, Aluminum alloy suitcase;
Weight:300g;Sensor type:Electrochemistry;
Power:Lithium polymer;Model Number:SKY2000-O3;
Resolution:0.001ppm, 0.01ppm, 0.1ppm, 1ppm;Package Preview:;
Product:O3 Ozone gas meter detector;Sampling method:Internal pump;
Supply Ability:3000.0 Piece/Pieces per Month;Color:Yellow;
Brand Name:YuanTe;Size:205*75*32mm;



 ATEX CE certified Portable O3 Ozone gas meter detector 0.001ppm UK sensors highest precision

Characteristics & Functions

1. LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.

2. Support Chinese and English operation, easy to shift.

3. The gas concentration unit PPM and mg/m3 can be shifted quickly.

4. Explosion-proof certification, explosion-proof grade: II 2G Ex ia IIC T4 Ga IP66.

5. Monitor the hydrogen gas concentration in environment and enclosed space and alarm.

6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.

7. One press to restore factory setting, free from the bother of mis-operation.

8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.

9. Two stages alarm with sound and light, alarm point is settable.

10. Rechargeable lithium polymer battery of large capacity.





Specification



Gas Detected

Ozone/O3

Detection principle

Electrochemistry

Sampling Method

Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.

Measure Range

0-1ppm, 5ppm, 10ppm, 20ppm, 50ppm, 100ppm, 500ppm, 1000ppm, 5000ppm

Resolution

0.001ppm, 0.01ppm, 0.1ppm, 1ppm

Precision

≤± 2-3% F.S for normal sensor, .≤± 1% F.S for high precision sensor

Signal Output

High-speed data transmission by USB, available for data downloading and

printing (optional)

Response Time

≤10S

Recovery Time

≤10S

Repeatability

≤±1%

Linearity error

≤±1%

Zero shift

≤±1%(F.S/year)

Display

LCD dot matrix display

Operating language

Chinese/English

Gas unit

%LEL, PPM

Temperature

-20℃~50℃

Humidity

0-95%RH

Explosion-Proof

II 2G Ex ia IIC T4 Ga IP66

Degree of protection

IP66

Alarm mode

Sound, light, vibration

Operating time

12h

Dimensions

205*75*32mm

Weight

300g
